7. Open the rear unit.
8. Remove six screws and then remove the
controller box (main PWB).

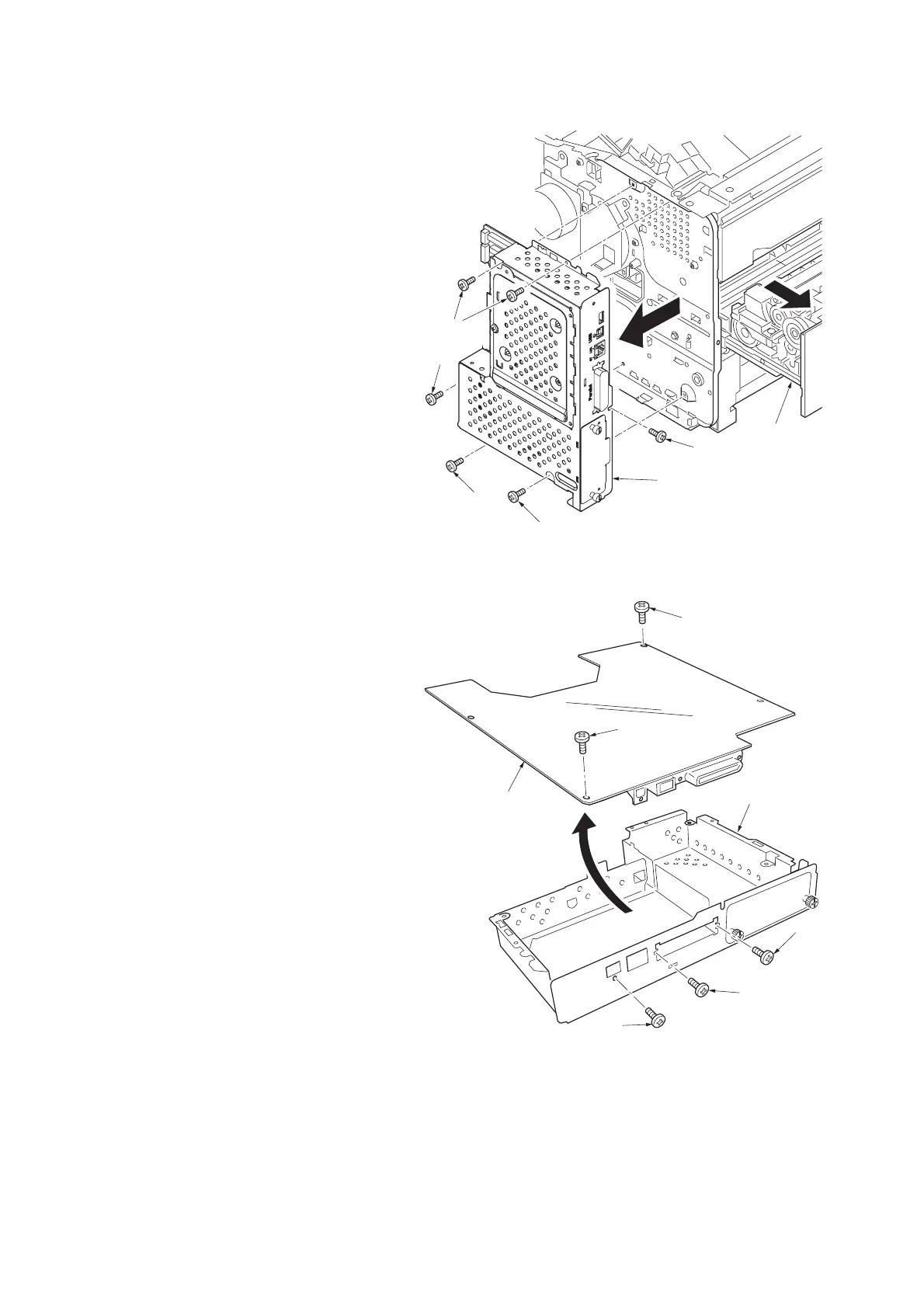

Figure 1-5-40
9. Remove five screws and then remove the
main PWB from the controller box.
10. Check or replace the main PWB and refit all
the removed parts.
Figure 1-5-41
Controller box
Screw
Rear unit
Screw
Screw
Screw
Screws
Screw
Screw
Screw
Screw
Main PWB
Controller box
Screw
