(2) MP tray paper feed section
The MP tray can contain about 100 pages. Feeding is performed by the rotation of the MP tray feed roller from the MP tray.
Function of the MP tray friction pad prevents papers from multiple feeding.

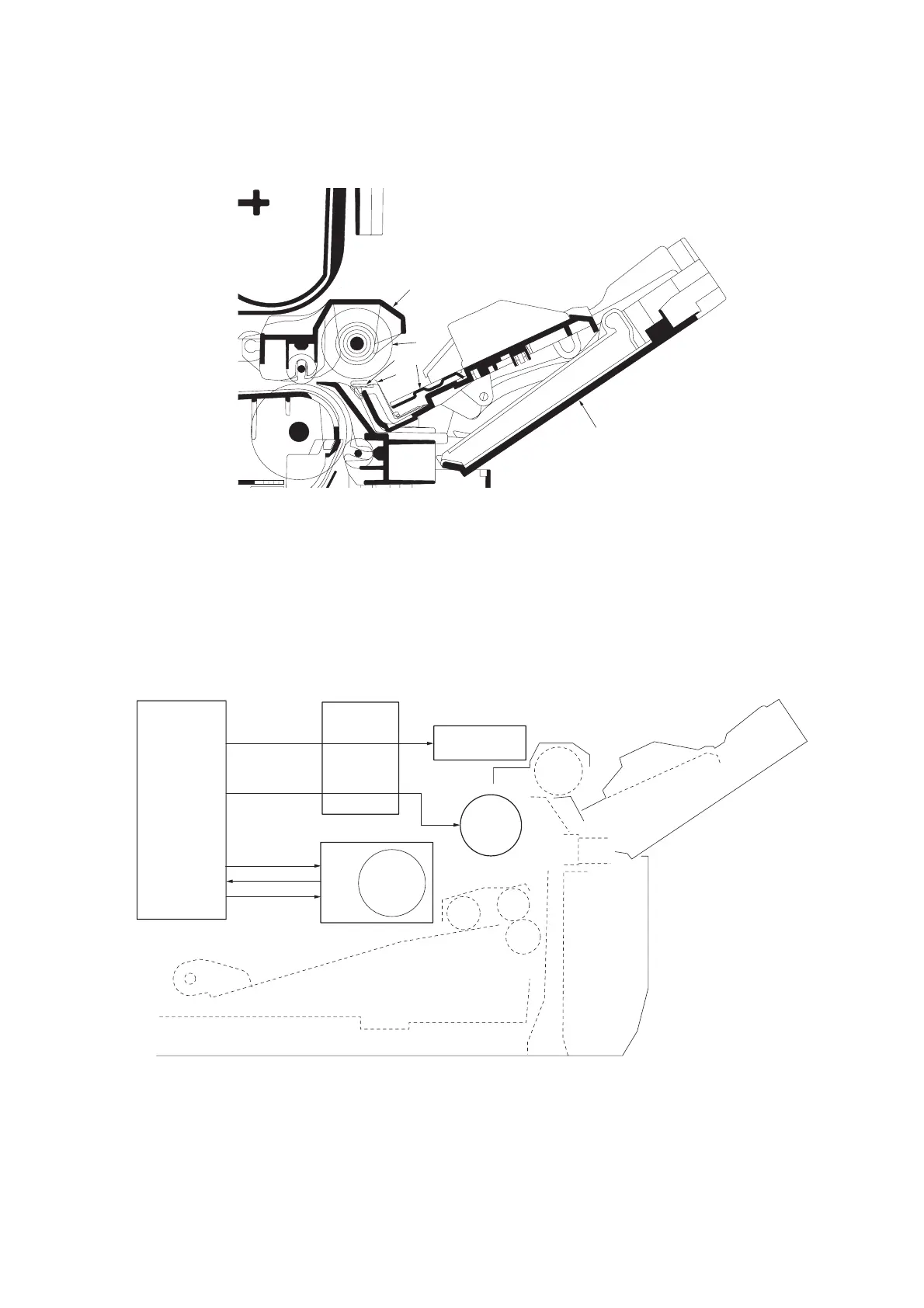

Figure 2-1-3 MP tray paper feed section
Figure 2-1-4MP tray paper feed section block diagram






(1) MP tray paper feed roller
(2) Bottom plate
(3) MP tray frame
(4) MP tray separator
(5) MPF base
(6) MP tray cover
Engine PWB
Connect-R
PWB
Main
motor
Middle
feed
clutch
MP tray paper
feed solenoid
3
4
5
YC502-3
YC502-4
YC502-5
YC502-3
YC9-7
MMOTONN
MMOTRDYN
MMOTCLK
MIDDRN
MPFDRN
