2J5
1-5-19
(3) Detaching and refitting the heat roller
Procedure
1. Remove the fuser heater lamp M and S
(See page P.1-5-17).
2. Remove the heat roller from the fuser upper
frame.
3. Remove the heat R bush, heat L bush, heat
gear Z46 and heat roller ground plate from
the heat roller.
4. Check or replace the heat roller and refit all
the removed parts.

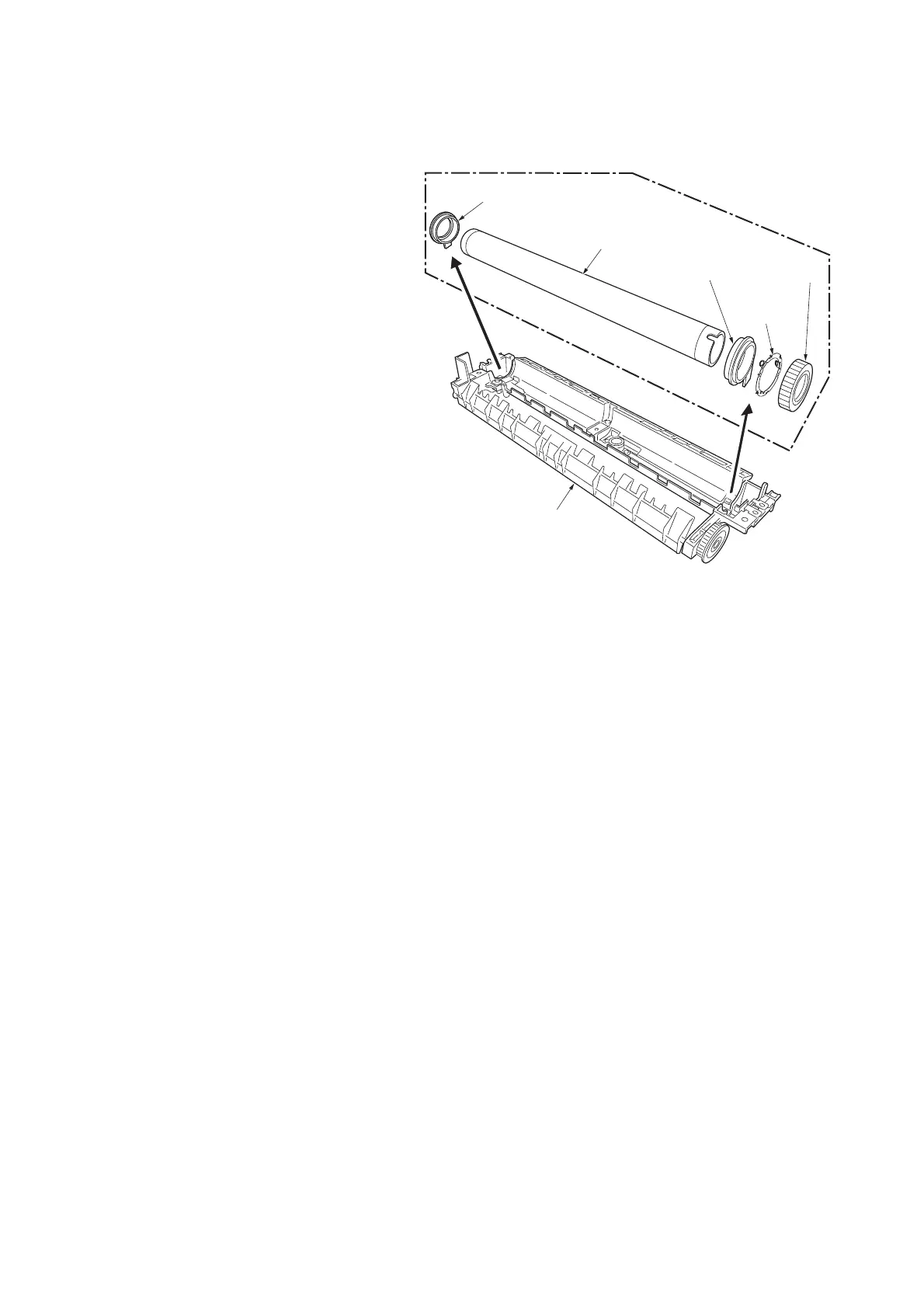

Figure 1-5-26
Heat roller
Fuser upper frame
Heat gear Z46
Heat L bush
Heat roller
ground plate
Heat R bush
To Next Page
