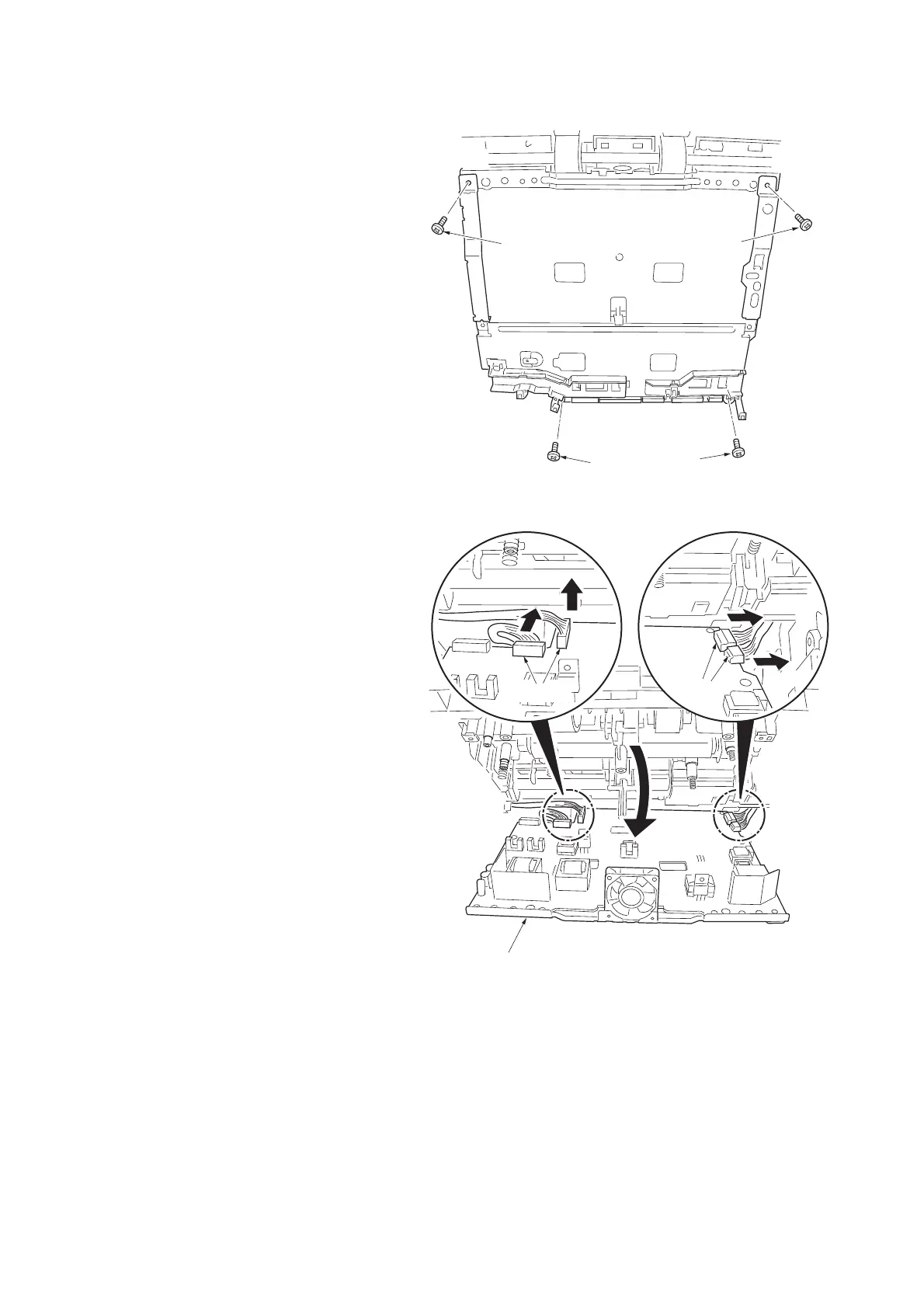

16. Remove four screws.
Figure 1-5-36
17. Detach the engine PWB assembly.
18. Remove four connectors.
19. Remove the engine PWB assembly.
Figure 1-5-37
Screw
Screw
Screw
Screw
Connectors
Engine PWB assembly
Connectors
