Kyocera FS-C8500DN Service Manual

26
42
42
C
A
C
41
B
A
L
K

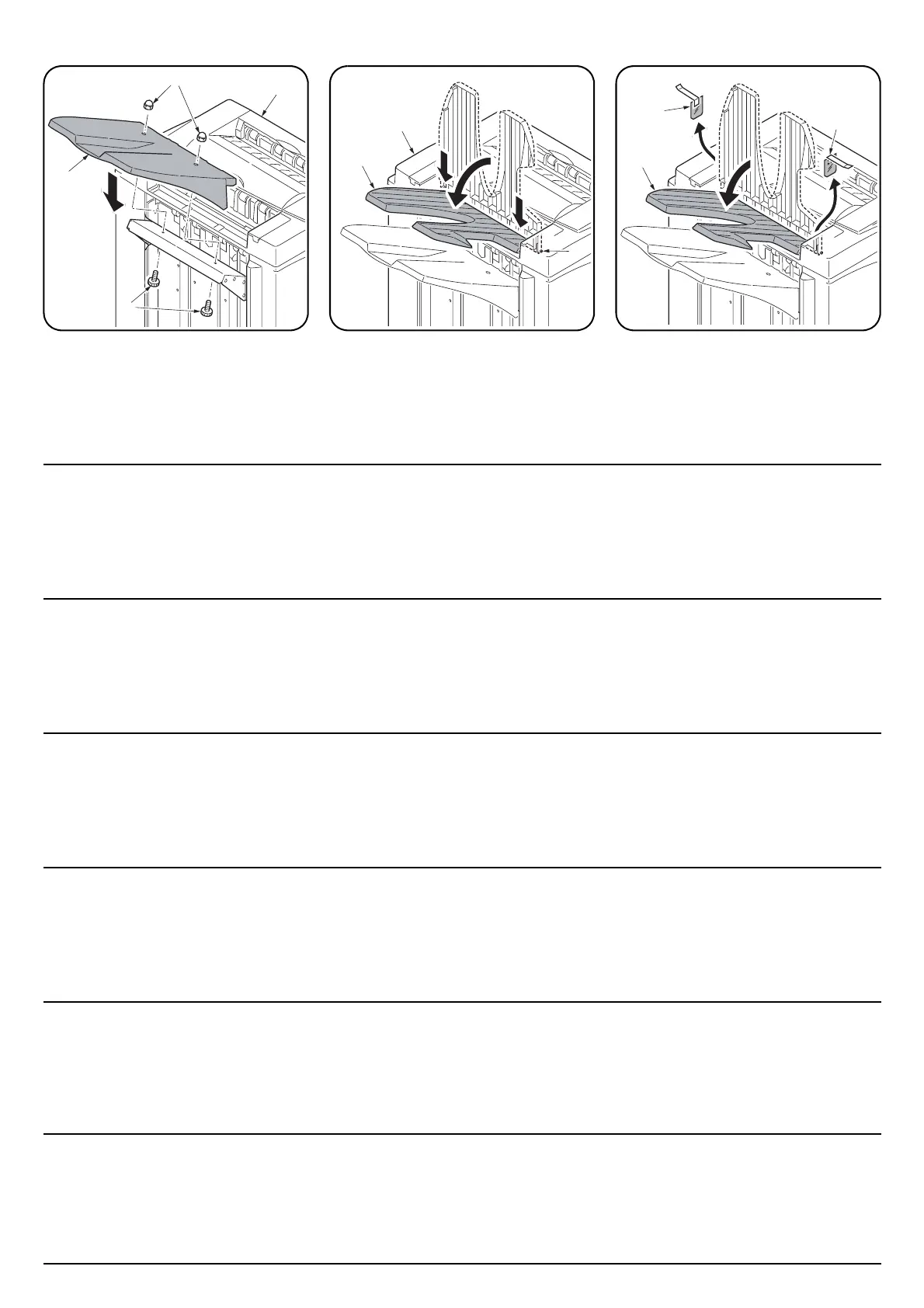

Installing the trays
86.Use two nuts (K) and two pins (L) to install
the tray A (B) to the document finisher (A).
87.. the right and left projections (41) of the tray
B (C) onto the document finisher (A) from its
top.Fit the tray with the Lumiror films (42)
remaining attached.
88.Lower tray B (C) and remove the two
Lumiror films (42).
Installation des bacs
86.Utiliser deux écrous (K) et deux broches (L)
pour installer le bac A (B) sur le retoucheur
de document (A).
87.Fixer les saillies droite et gauche (41) du bac
B (C) sur le retoucheur de document (A)
depuis le haut.
Insérer le bac avec les films Lumiror (42)
bien en place.
88.Abaisser le bac B (C) et enlever les deux
films Lumiror (42).
Instalación de las bandejas
86.Utilice dos tuercas (K) y dos pasadores (L)
para instalar la bandeja A (B) en el
finalizador de documentos (A).
87.Coloque los resaltos derecho e izquierdo
(41) de la bandeja B (C) sobre el finalizador
de documentos (A) desde su parte superior.
Inserte la bandeja con las películas Lumiror
(42) colocadas.
88.Baje la bandeja B (C) y quite las dos
películas Lumiror (42).
Anbringen der Fächer
86.Verwenden Sie die beiden Muttern (K) und
die beiden Stifte (L), um das Fach A (B) in
den Dokument-Finisher (A) einzubauen.
87.Setzen Sie die rechten und linken
Vorsprünge (41) des Fachs B (C) von oben
auf den Dokument-Finisher (A).
Setzen Sie das Fach mit noch angebrachten
Lumiror-Folien (42) ein.
88.Senken Sie das Fach B (C), und entfernen
Sie die beiden Lumiror-Folien (42).
Installazione dei vassoi
86.Utilizzare due dadi (K) e due perni (L) per
installare il vassoio A (B) alla finitrice di
documenti (A).
87.Inserire dall’alto della finitrice di documenti
(A) le parti sporgenti destra e sinistra (41) del
vassoio B (C) nella finitrice stessa.
Inserire il vassoio con i film Lumiror (42)
annessi.
88.IAbbassare il vassoio B (C) e rimuovere i
due film Lumiror (42).
トレイの取り付け
86.ナット (K)2 個とピン (L)2 個でドキュメン
トフィニッシャ(A) にトレイ A(B) を取り付
ける。
87.トレイ B(C) の左右の突起 (41) をドキュメ
ントフィニッシャ(A) へ上からはめ込む。
ルミラ (42) は剥がさず、付けたままはめ込
むこと。
88.トレイ B(C) を倒し、ルミラ (42)2 枚を取り
外す。
安装托盘
86.使用 2 颗螺母（K）和 2 个销钉（L）将托盘 A
（B）安装至装订器（A）。
87.将托盘 B（C）左右两侧的突出部（41）固定至
装订器（A）的顶部。
使用粘贴在装订器上的导光膜（42）固定托
盘。
88.降低托盘 B（C）并拆下 2 条导光膜（42）。

Kyocera FS-C8500DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	5.2 s
Time to first page (color, normal)	6.7 s
Print speed (black, normal quality, A3)	28 ppm
Print speed (color, normal quality, A3)	25 ppm
Print speed (black, normal quality, A4/US Letter)	55 ppm
Print speed (color, normal quality, A4/US Letter)	50 ppm
Internal memory	1024 MB
Processor model	PowerPC 750GL
Maximum internal memory	2048 MB
Sound power level (standby)	27, 26 dB
Sound pressure level (printing)	55 dB
Total input capacity	- sheets
Total output capacity	500 sheets
Maximum input capacity	100 sheets
Multi-Purpose tray input capacity	4100 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Plain paper
Paper tray media weight	60 - 220 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Standard interfaces	USB 2.0
USB 2.0 ports quantity	3
Network ready	No
Power requirements	220/240 V, 50/60 Hz
Wireless option type	Wireless LAN (802.11b/g)
Power consumption (active)	1250 W
Compatible operating systems	Windows, Mac OS X 10.2 +, UNIX, LINUX
Maximum duty cycle	150000 pages per month
Recommended duty cycle	25000 pages per month
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	200 W
Power consumption (PowerSave)	15 W
Display	LCD
Certification	GS, TÜV, CE

Weight and Dimensions

Dimensions (WxDxH)	605 x 680 x 691 mm
