Kyocera FS-C8500DN Service Manual

2KA
1-3-32
U053
Setting: [Set Motor3]
1. Select the item to be adjusted.
Setting: [Set Motor4]
1. Select the item to be adjusted.
Setting: [Set Motor5]
1. Select the item to be adjusted.
Setting: [Set Motor6]
1. Select the item to be adjusted.
Adjustment
1. Press the Menu key.
2. Press the OK key to output an A3/Ledger test pattern.

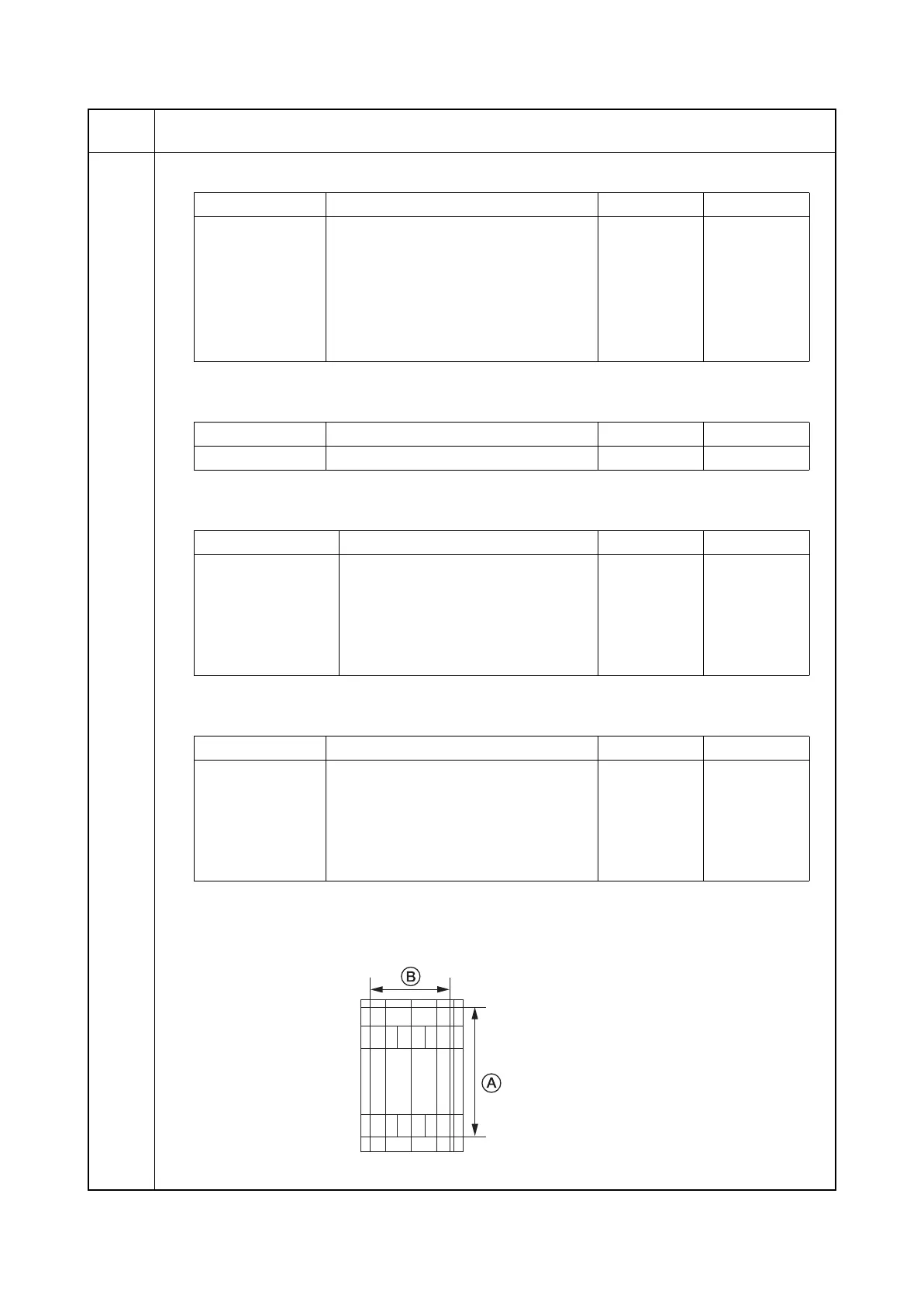

Figure 1-3-6
Maintenance
item No.
Description
Display Description Setting range Initial setting
MPT MP motor (MPM) -500 to 500 0
Eject Eject motor (EM) -500 to 500 0
Opt Eject Feedshift motor (FSM) -500 to 500 0
Fixing Fuser motor (FUM) -500 to 500 80
Duplex Duplex motor (DUM) -500 to 500 0
Feed Paper conveying motor (PCM) -500 to 500 0
Display Description Setting range Initial setting
Drum K(F) B/W Drum motor K (DRM-K) full speed -500 to 500 21
Display Description Setting range Initial setting
Dev K BW Cvy Developing motor K (DEVM-K) -500 to 500 0
TC(F) BW Transfer motor (TRM) full speed -500 to 500 0
Mid Roller BW Middle motor (MM) -500 to 500 0
Regist BW Registration motor (RM) -500 to 500 0
Polygon(F) BW Polygon motor (PM) full speed -500 to 500 0
Display Description Setting range Initial setting
MPT B/W MP motor (MPM) -500 to 500 0
Eject B/W Eject motor (EM) -500 to 500 0
Opt Eject B/W Feedshift motor (FSM) -500 to 500 0
Fixing B/W Fuser motor (FUM) -500 to 500 50
Duplex B/W Duplex motor (DUM) -500 to 500 0
Correct values for an A3/Ledger output are:
A = 350
± 0.5 mm
B = 250
± 0.5 mm

Kyocera FS-C8500DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	5.2 s
Time to first page (color, normal)	6.7 s
Print speed (black, normal quality, A3)	28 ppm
Print speed (color, normal quality, A3)	25 ppm
Print speed (black, normal quality, A4/US Letter)	55 ppm
Print speed (color, normal quality, A4/US Letter)	50 ppm
Internal memory	1024 MB
Processor model	PowerPC 750GL
Maximum internal memory	2048 MB
Sound power level (standby)	27, 26 dB
Sound pressure level (printing)	55 dB
Total input capacity	- sheets
Total output capacity	500 sheets
Maximum input capacity	100 sheets
Multi-Purpose tray input capacity	4100 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Plain paper
Paper tray media weight	60 - 220 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Standard interfaces	USB 2.0
USB 2.0 ports quantity	3
Network ready	No
Power requirements	220/240 V, 50/60 Hz
Wireless option type	Wireless LAN (802.11b/g)
Power consumption (active)	1250 W
Compatible operating systems	Windows, Mac OS X 10.2 +, UNIX, LINUX
Maximum duty cycle	150000 pages per month
Recommended duty cycle	25000 pages per month
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	200 W
Power consumption (PowerSave)	15 W
Display	LCD
Certification	GS, TÜV, CE

Weight and Dimensions

Dimensions (WxDxH)	605 x 680 x 691 mm
