dV-DOSC dV-SUB Manual V3.0 June 2005 102

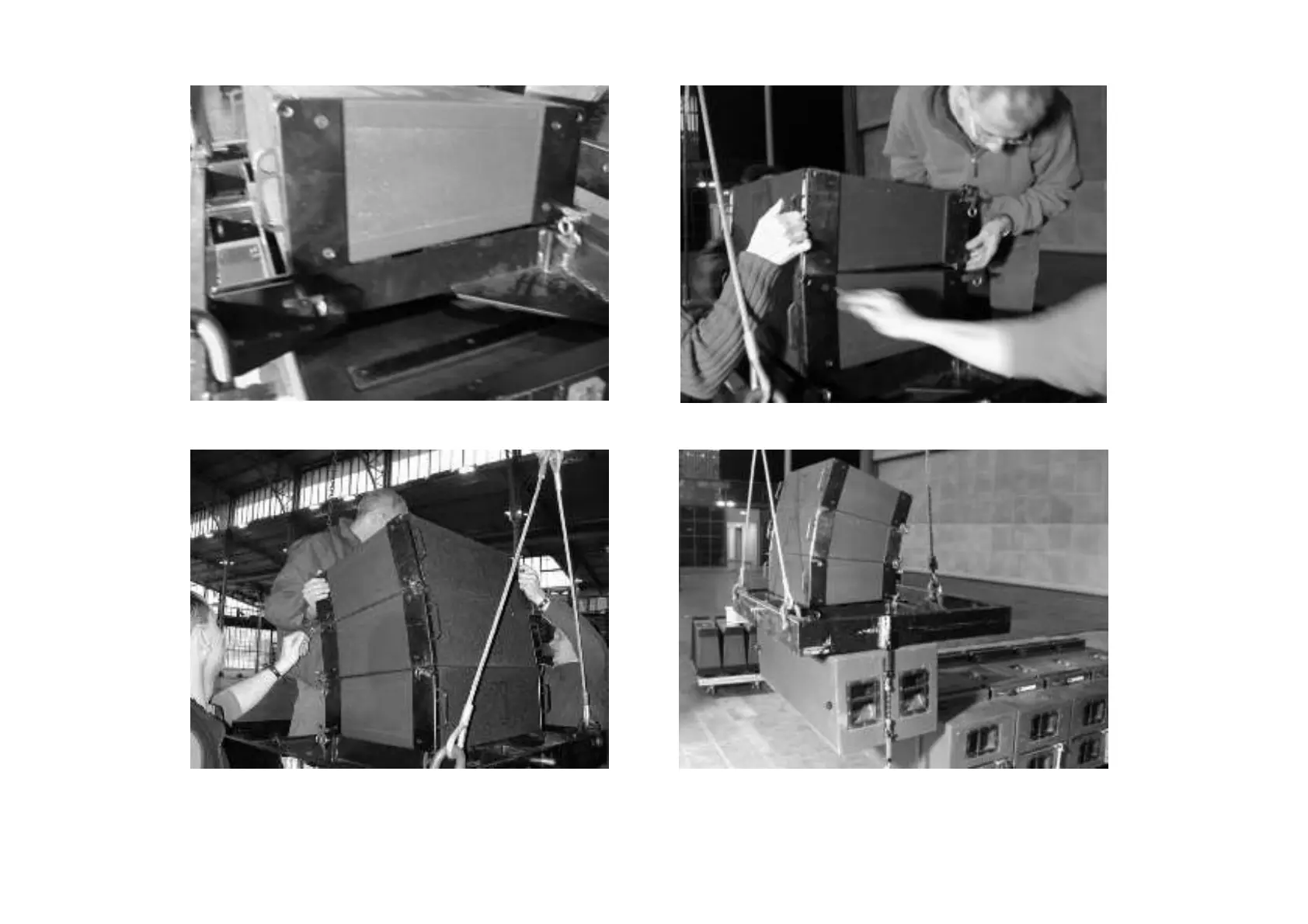

(v) Attach rear dV-ANGLE and mount the first enclosure
(vi) Continue to build the stack
(vii) Note bridling arrangement in front
(viii) Entire system is now ready to fly
Figure 76: Stacking dV-DOSC on top of V-DOSC for upfill/longthrow
