250 Hz
4 kHz
500 Hz
6.3 kHz
1 kHz
8 kHz
2 kHz
10 kHz

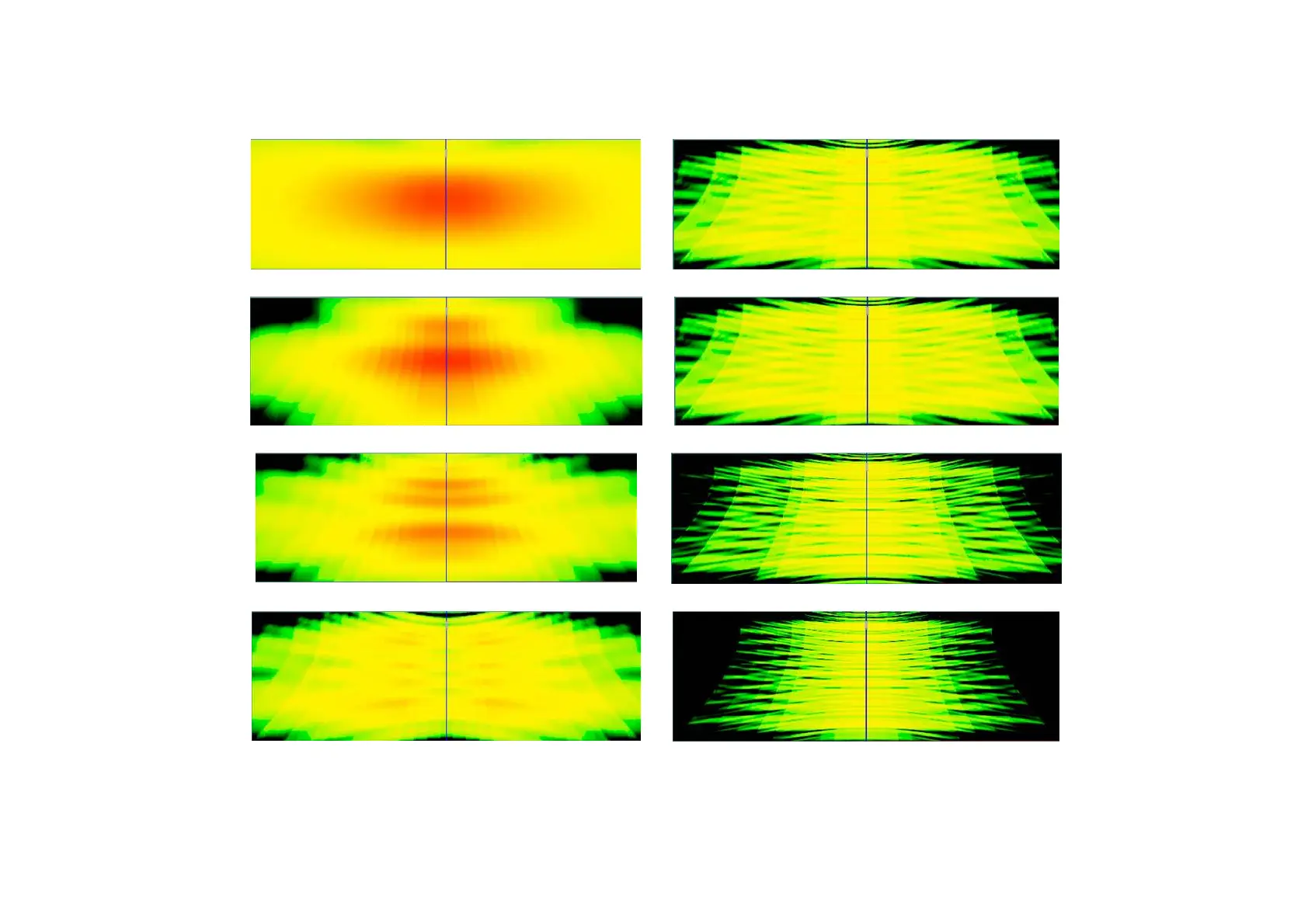

Figure 55: Plan view SPL mappings at octave band frequencies for 12 dV-DOSC
(30 metre throw distance, enclosures perpendicular to target plane)
