dV-DOSC dV-SUB Manual V3.0 June 2005 30

DO10P EXTENSION

DOSUB CABLE

SP7

SP25

CC4FP

SP.7

DOFILL

DO3WFILL

DO2W

DO3W

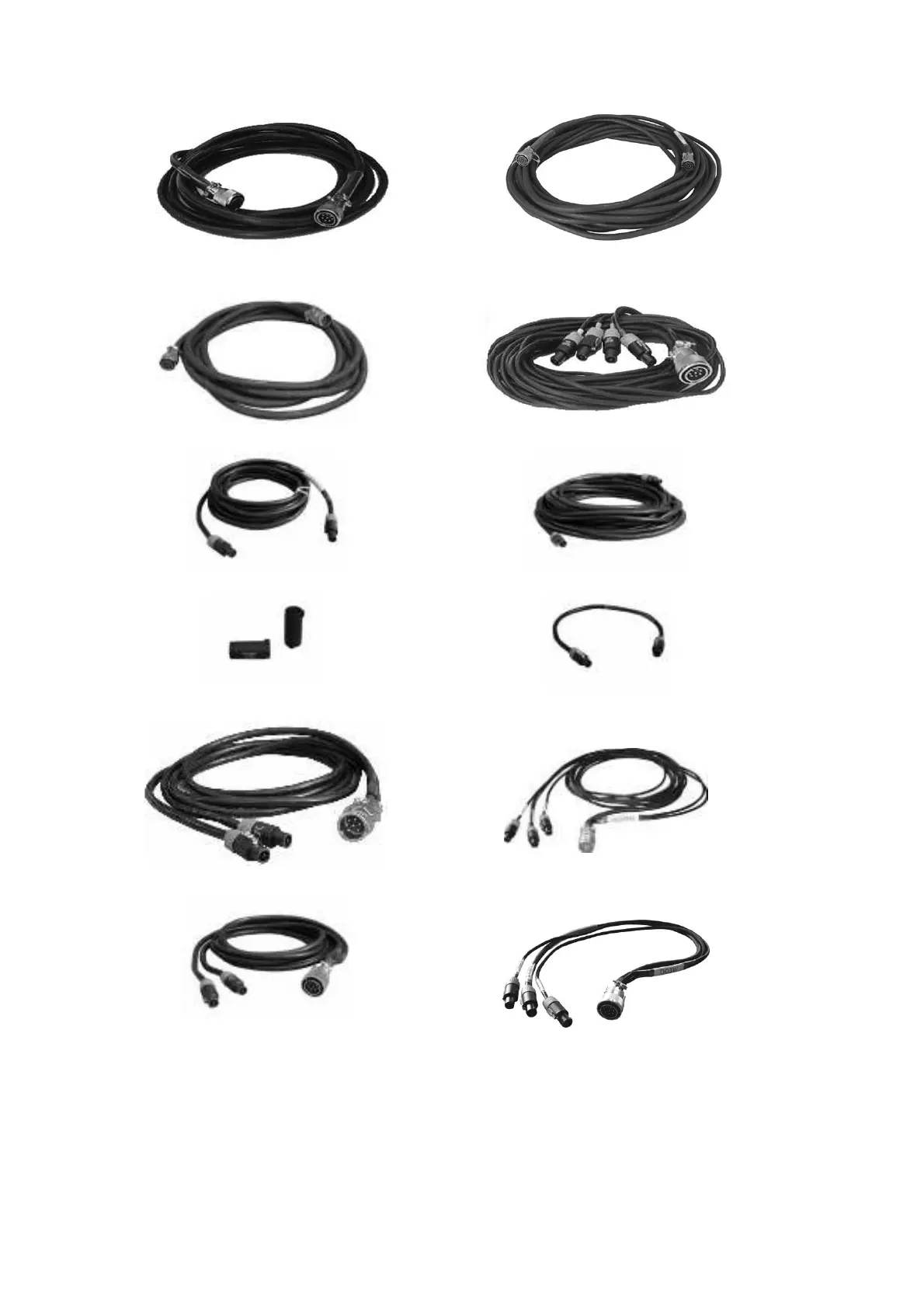

Figure 14: Loudspeaker cabling options

DO7 DO25
