dV-DOSC dV-SUB Manual V3.0 June 2005 133

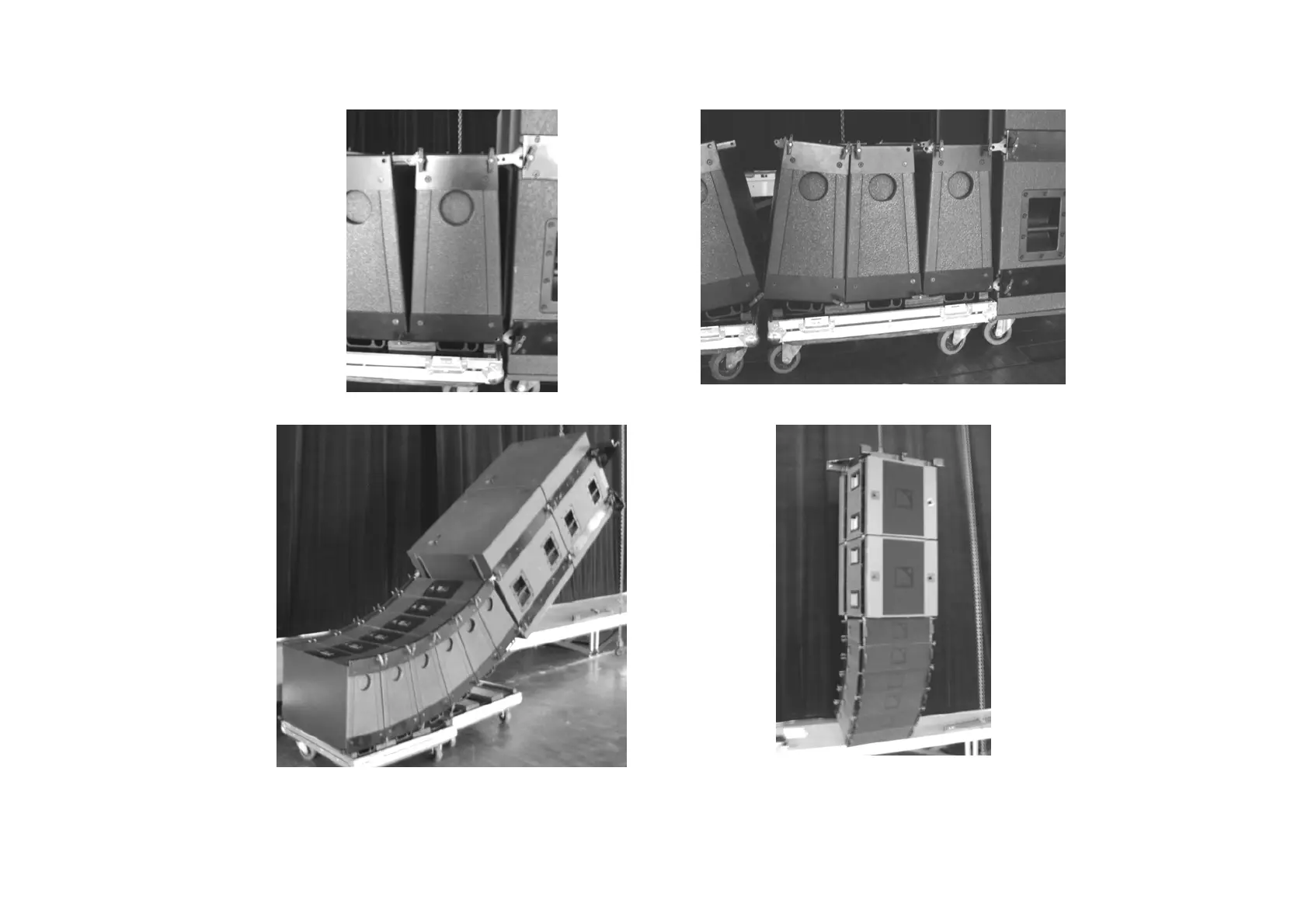

(v) Preconnect the first dV-DOSC to dV-SUB, front and rear.
(Do not attach the dV-DOSC #2 to dV-DOSC #1)
(vi) All dV-DOSC attached at front, in blocks of 3 at the rear
(except for dV-DOSC #1 to #2)
(vii) dV-DOSC #2 to #1 then blocks of 3 are attached as the array is raised
(viii) The flown system (2 dV-SUB + 6 dV-DOSC)
Figure 87: Rigging dV-DOSC under dV-SUB (larger configuration – procedure 1)
