dV-DOSC dV-SUB Manual V3.0 June 2005 99

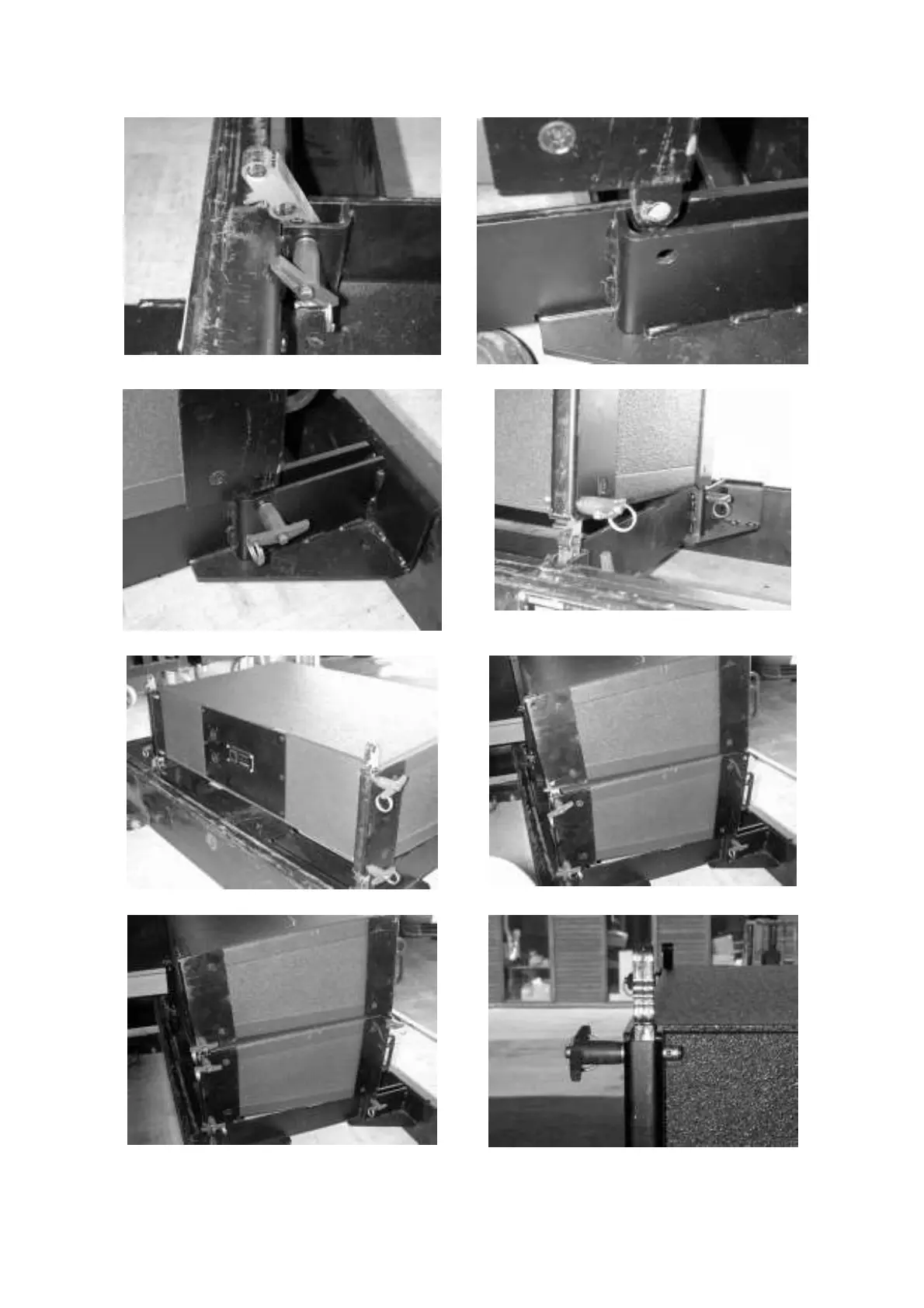

(ix) dV-ANGLE pre-attached in the 3.75 degree position
(x) Front rigging tabs mate with locator slots on dV-BUMP
(xi) Pin front points first using dV-PIN25
(xii) Then pin rear points - note: by pre-selecting the angle,
the tab on dV-ANGLEP1 acts as a stop
(xiii) Pre-attach two more dV-ANGLE bars at desired angle
(xiv) Stack the second dV-DOSC enclosure
(xv) Pin front points first, rear points last using dV-PIN25
(xvi) Use dV-ANGLE at 3.75 (rear) and 7.5 (front) as a site
for adjusting the focus of the stacked system
Figure 75: Stacking dV-DOSC using dV-BUMP plus the V-DOSC bumper
