dV-DOSC dV-SUB Manual V3.0 June 2005 47
Operating modes, amplifier rack channel assignments and cabling plus loudspeaker enclosure
combinations for the L-ACOUSTICS RK124a amplifier rack (PADO4a plus 4 x LA48a) are as follows:
HI (A) HI (A) HI (A) HI (B)
LO (A) LO (A) LO (A) LO (B)
HI (B) HI (B) HI (A) HI (B)
LO (B) LO (B) LO (A) LO (B)
2W ST 2W (A)
2W ST 2W (B)
(DO10P+) DO2W (DO10P+) DO2W (DO10P+) DO2W (DO10P+) DO2W
or or or or
DO10/DO25 + DOFILL DO10/DO25 + DOFILL DO10/DO25 + DOFILL DO10/DO25 + DOFILL
or or or or
DO2W+CC4FB+SP10/25 DO2W+CC4FB+SP10/25 DO2W+CC4FB+SP10/25 DO2W+CC4FB+SP10/25
3+3 dV-DOSC/ARCS/XT 3+3 dV-DOSC/ARCS/XT 3+3 dV-DOSC/ARCS/XT 3+3 dV-DOSC/ARCS/XT

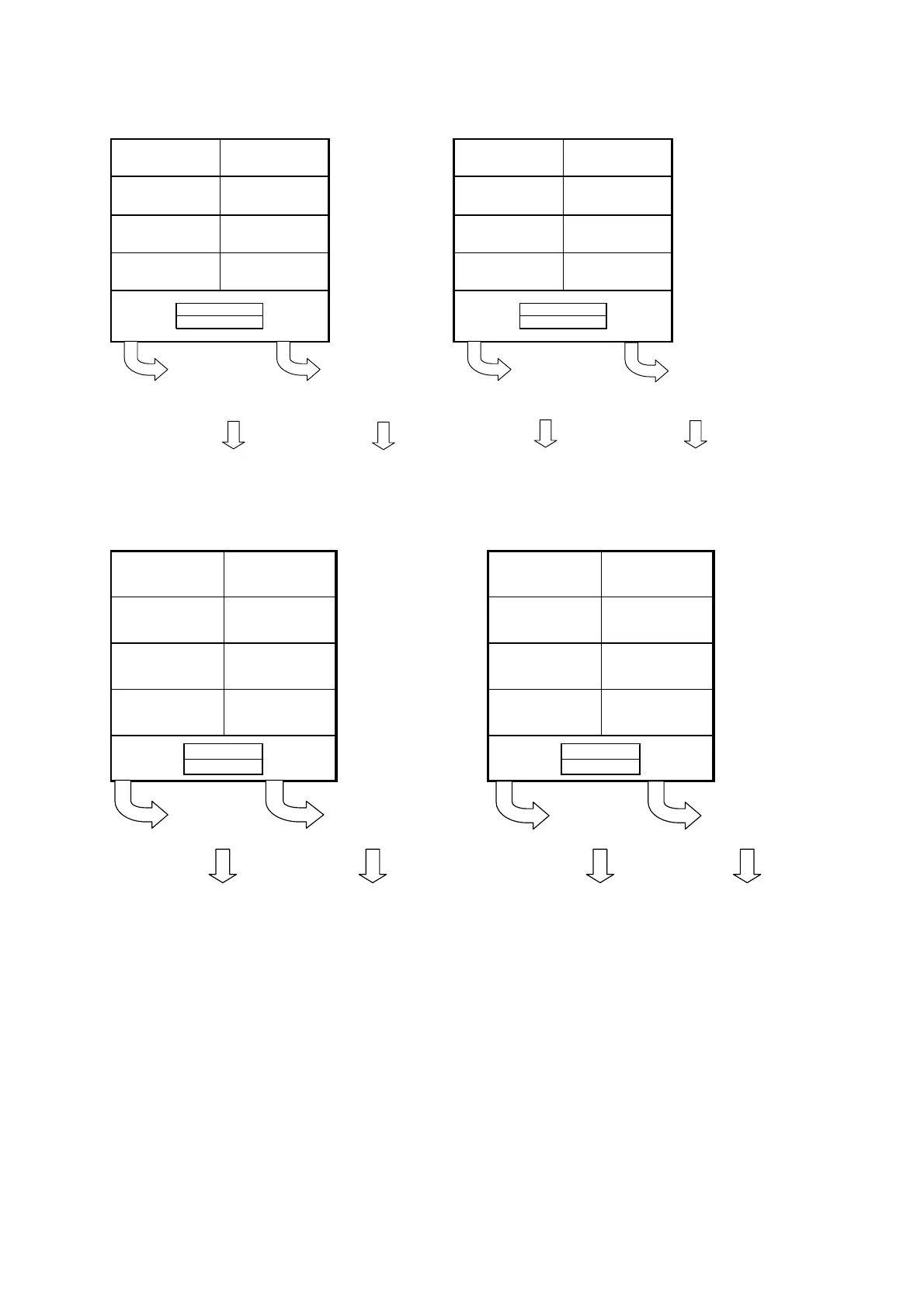

Figure 34: L-ACOUSTICS RK124a amplifier rack channel assignments
and cabling for 2-way stereo presets
HI (A) HI (B) SUB (A) SUB (B)
LO (A) LO (B) SUB (A) SUB (B)
SUB (A) SUB (B) SUB (A) SUB (B)
SUB (A) SUB (B) SUB (A) SUB (B)
3W (A) SUB (A)
3W (B) SUB (B)
DO10/DO25 DO10/DO25
+ + (DO10P+) (DO10P+)
DO3WFILL DO3WFILL DOSUB DOSUB
3 dV-DOSC / ARCS / XT 3 dV-DOSC / ARCS / XT 4 SB218 (LA48a) 4 SB218 (LA48a)
2 SB218/dV-SUB (LA48a) 2 SB218/dV-SUB (LA48a) or 4 dV-SUB or 4 dV-SUB
or 8 SB118 or 8 SB118 or 8 SB118 or 8 SB118
Figure 35: L-ACOUSTICS RK124a amplifier rack channel assignments
and cabling for 3-way stereo presets
