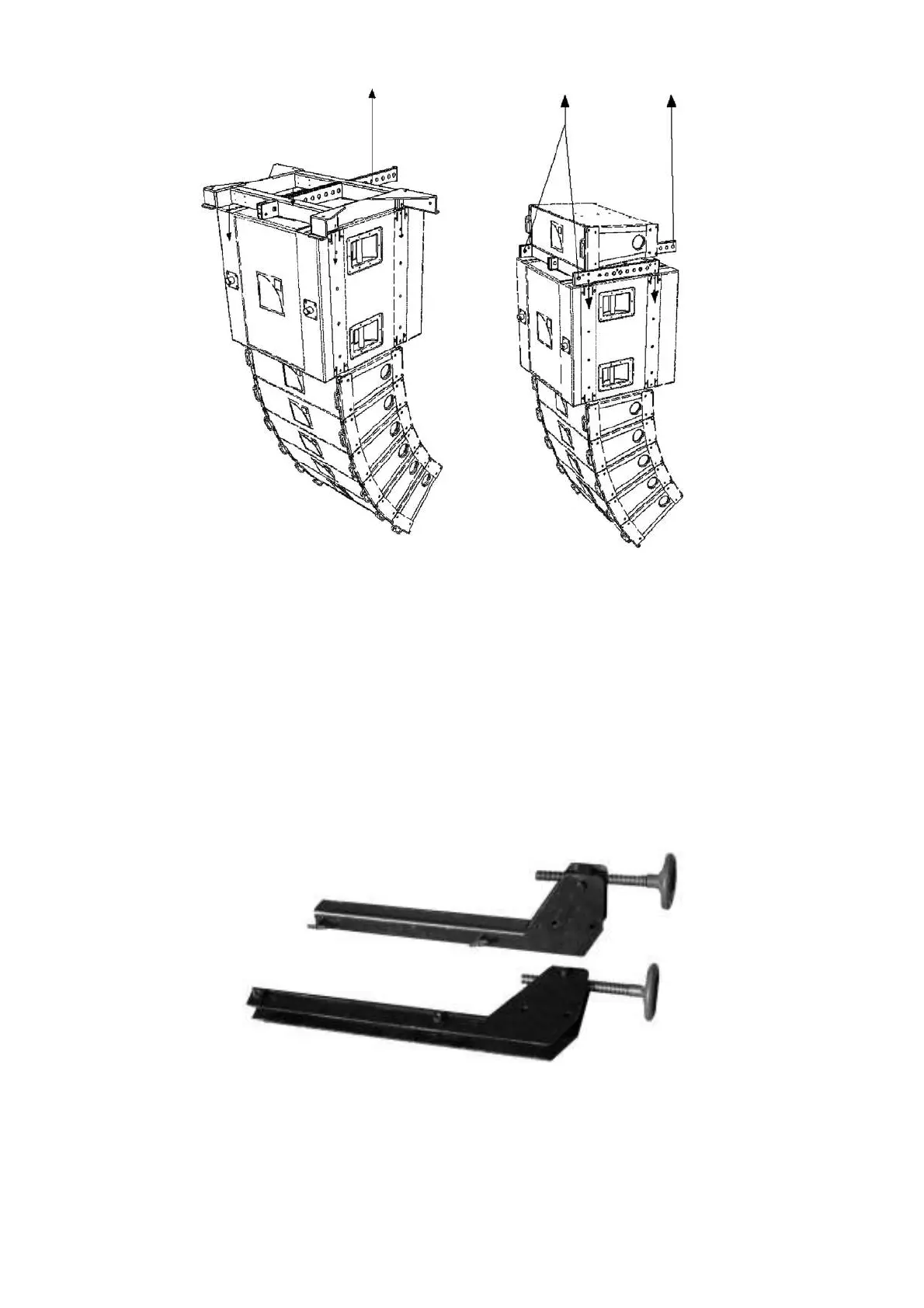

Figure 18: dV-BUMP and dV-BUMP2 rigging bumpers
Maximum recommended flown configurations are summarized as follows:
dV-BUMP or dV-BUMP2 (NO EXTENSION BAR)
(SINGLE OR TWO POINT HANG FROM CENTRAL SPREADER BAR)
- maximum 24 dV-DOSC enclosures
dV-BUMP or dV-BUMP2 + EXTENSION BAR
(SINGLE POINT HANG FROM REAR EXTENSION BAR)
- maximum 12 dV-DOSC enclosures
dV-BUMP or dV-BUMP2 + EXTENSION BAR
(2 POINT HANG FROM FRONT POINT AND EXTENSION BAR REAR POINT)
- maximum 12 dV-DOSC enclosures
Figure 19: dV-DOWN
Up to 6 dV-DOSC can be flown underneath V-DOSC for downfill applications using the dV-DOWN
rigging adapter. Three dV-DOSC are equivalent to the weight of one V-DOSC, therefore maximum
cabinet combinations include: 15 V-DOSC plus 3 dV-DOSC or 14 V-DOSC plus 6 dV-DOSC.
