L-Acoustics dV-SUB - Figure 8: DV-DOSC Rigging Accessories

dV-DOSC dV-SUB Manual V3.0 June 2005 22
dV-ANGLEP1, dV-ANGLEP2
Rear angle bar used to form convex (positive curvature) arrays. Available angles include:
P1: 0, 2, 3.75, 5.5, 7.5 degrees
P2: 1, 3, 4.5, 6.5 degrees
dV-ANGLEN
Rear angle bar used to form concave (negative curvature) arrays or for downwards tilt of stacked dV-
DOSC systems. Available angles include: 0, -2, -3.75, -5.5 and -7.5 degrees
dV-ANGLESS
Front and rear angle bar used to rig dV-SUB to dV-SUB (i.e., SS=sub to sub)
dV-ANGLESD
Front angle bar used to rig dV-DOSC to dV-SUB (i.e., SD=sub to dV) or dV-SUB to dV-BUMP
dV-ANGLESDP
Rear angle bar used to rig dV-DOSC to dV-SUB (i.e., SDP=sub to dV, positive tilt).
Available angles include: 0, 1.75, 3.75 degrees.
dV-BUMP
dV-BUMP2
dV-DOWN
dV-PIN81
dV-ANGLEP1
(0, 2, 3.75, 5.5, 7.5 deg)
dV-ANGLEP2
(1, 3, 4.5, 6.5 deg)
dV-PIN25
dV-ANGLEN
(0, -2, -3.75, -5.5, -7.5 degrees)
dV-ANGLESS
dV-ANGLESD
dV-ANGLESDP

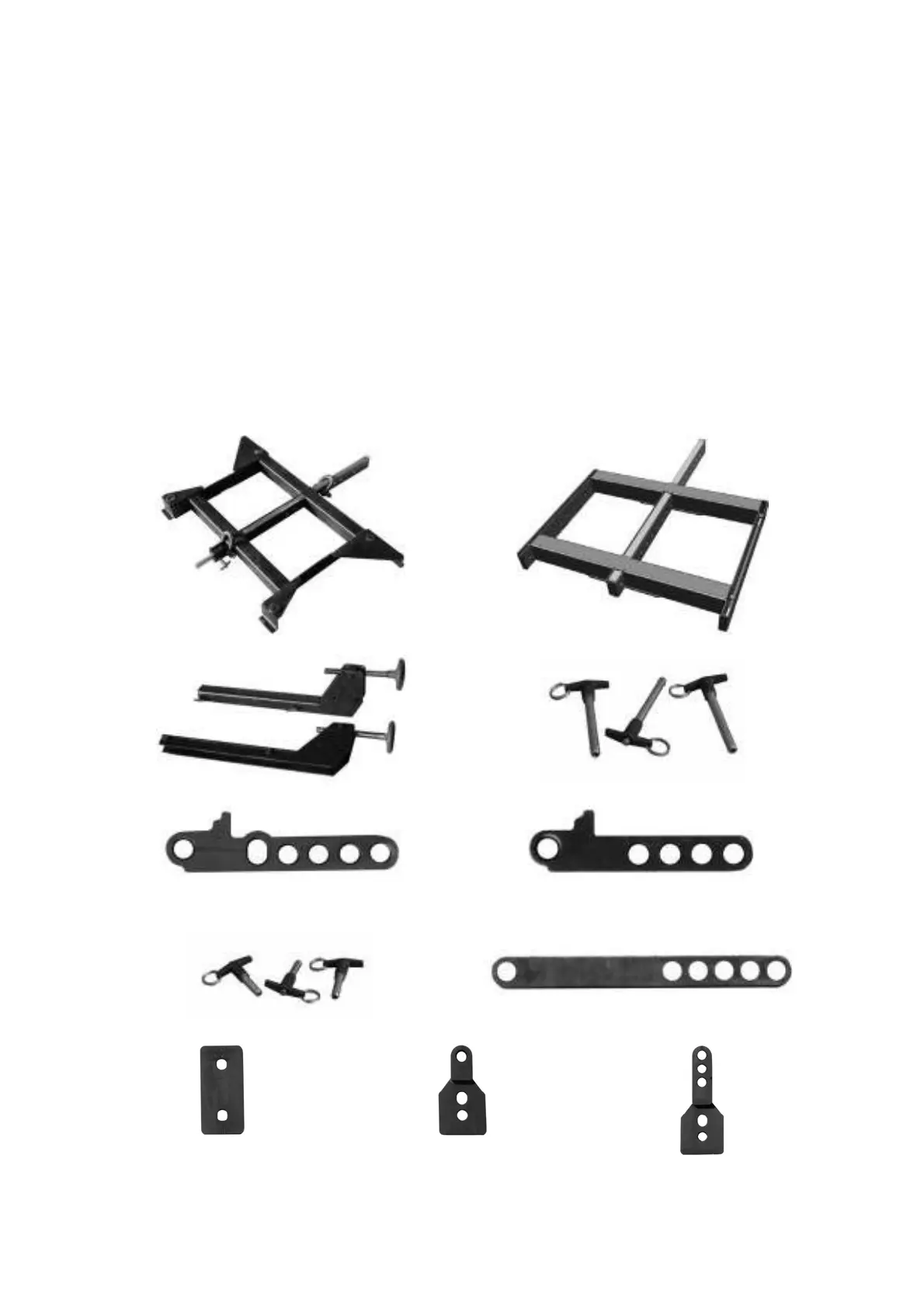

Figure 8: dV-DOSC rigging accessories
