dV-SUB rigging is compatible with dV-BUMP and dV-BUMP2 and the rigging system is rated for up to
6 dV-SUB deep. When flown 6 deep, the overall weight of the system is 552 kg (1217 lbs) and pick
point hole number #5 on the central spreader bar will produce a dead hang (nominal zero degree site
angle).
When flying combined dV-DOSC/dV-SUB arrays in a single column, dV-SUB is always flown on top.
Under no circumstances should dV-SUB be flown beneath dV-DOSC
. Maximum rated combinations
are summarized in the following tables:
Table 1: Maximum rated dV-SUB / dV-DOSC combinations - dV-DOSC flown below dV-SUB
Single point hang from rear extension bar (holes 9-16)
OR
2-point hang from dV-BUMP front point (hole 0) + extension bar rear point (hole 16)
dV-SUB 0 1 2 3 4 5 6
dV-DOSC 12 6 4 1 0 0 0
Total
weight
414 kg
912 lbs
290 kg
639 lbs
316 kg
697 lbs
309 kg
681 lbs
368 kg
811 lbs
460 kg
1014 lbs
552 kg
1217 lbs
Table 2: Maximum rated dV-SUB / dV-DOSC combinations - dV-DOSC flown below dV-SUB
Single point hang from central spreader bar (holes 1-8)
dV-SUB 0 1 2 3 4 5 6 6
dV-DOSC 24 9 8 7 6 4 1 0
Total
weight
786 kg
1732 lbs
389 kg
858 lbs
448 kg
988 lbs
507 kg
1118 lbs
566 kg
1248 lbs
592 kg
1305 lbs
585 kg
1290 lbs
552 kg
1217 lbs

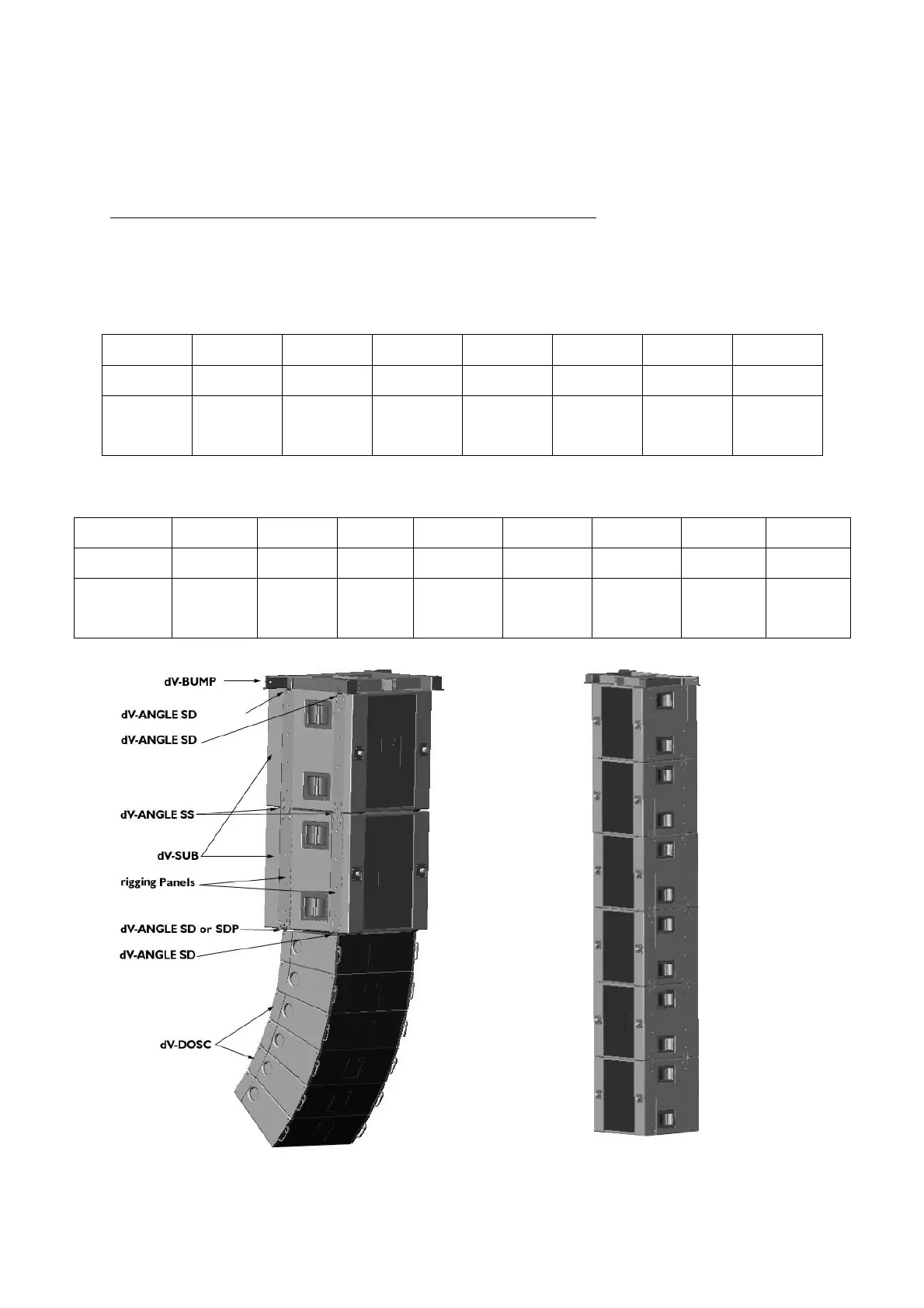

Figure 23: Illustration of dV-SUB rigging configurations
