dV-DOSC dV-SUB Manual V3.0 June 2005 113
(i) dV-BUMP secured to dV-SUB stack using a ratchet strap.
dV-ANGLEN preinstalled for rear attachment points
(ii) dV-DOSC installed - note how dV-ANGLEN provides
downwards tilt
(iii) 3 high dV-SUB stack provides a good height as a stacking platform. With
the bottom enclosure at maximum downwards tilt, coverage starts from 2
metres onwards.

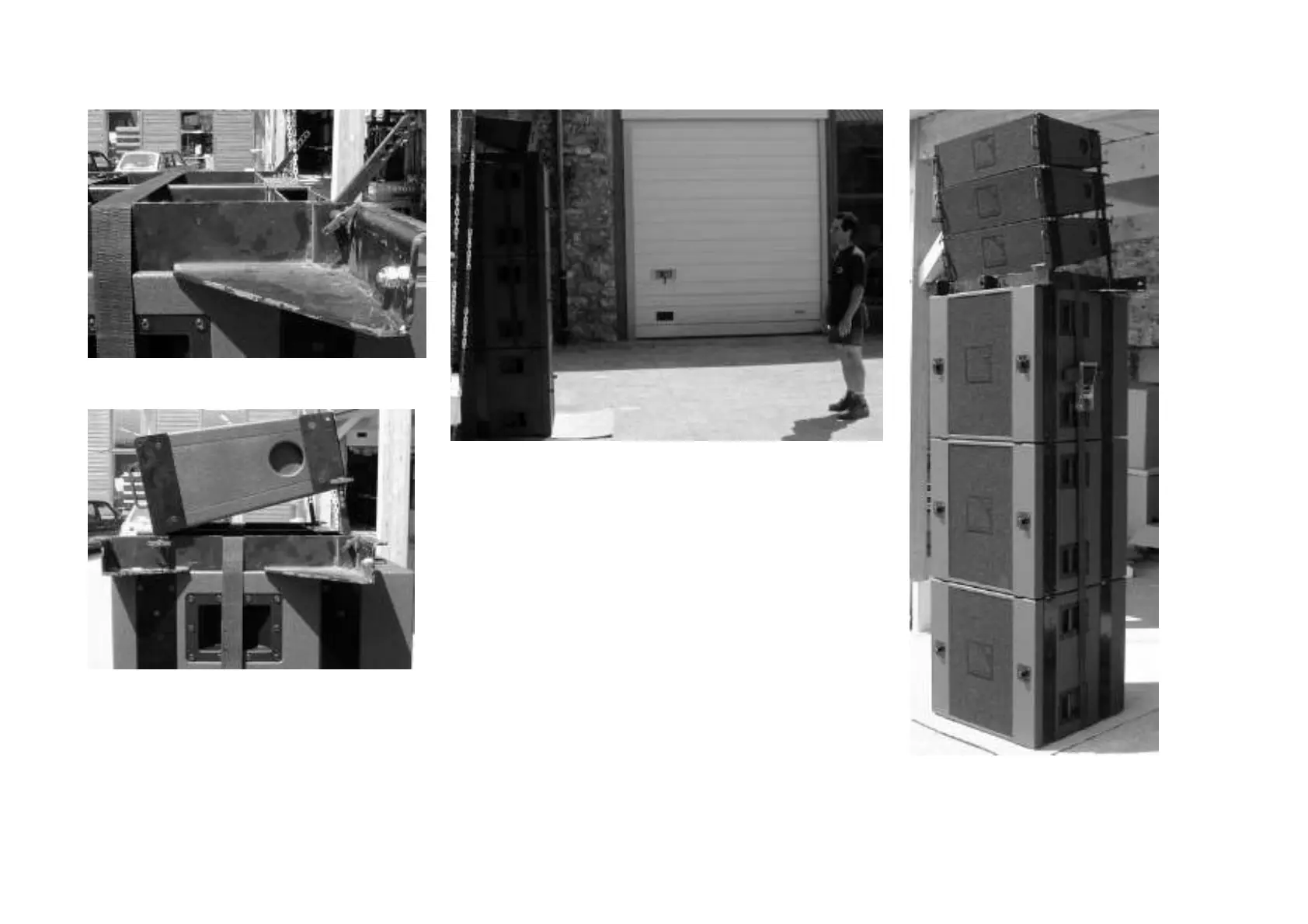

Figure 81: Stacking dV-DOSC on top of dV-SUB subwoofers with dV-BUMP (or dV-BUMP2)
