dV-DOSC dV-SUB Manual V3.0 June 2005 105

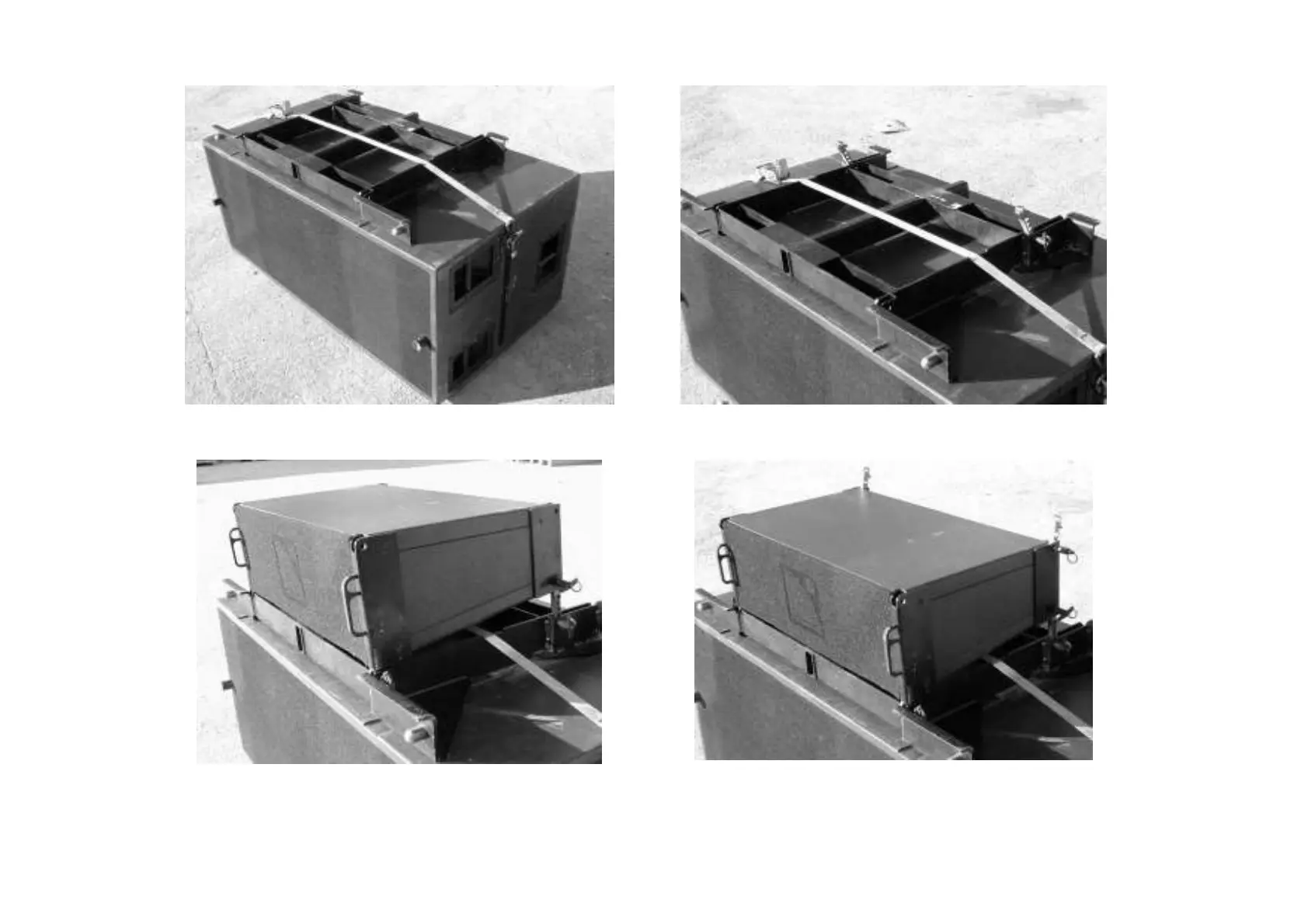

(v) Ratchet strap secures dV-BUMP to the SB218

(vi) Rear dV-ANGLE pre-attached at desired angle

(vii) Bottom dV-DOSC mounted, attached using dV-PIN25

(viii) Pre-attach next set of dV-ANGLE
