dV-DOSC dV-SUB Manual V3.0 June 2005 110

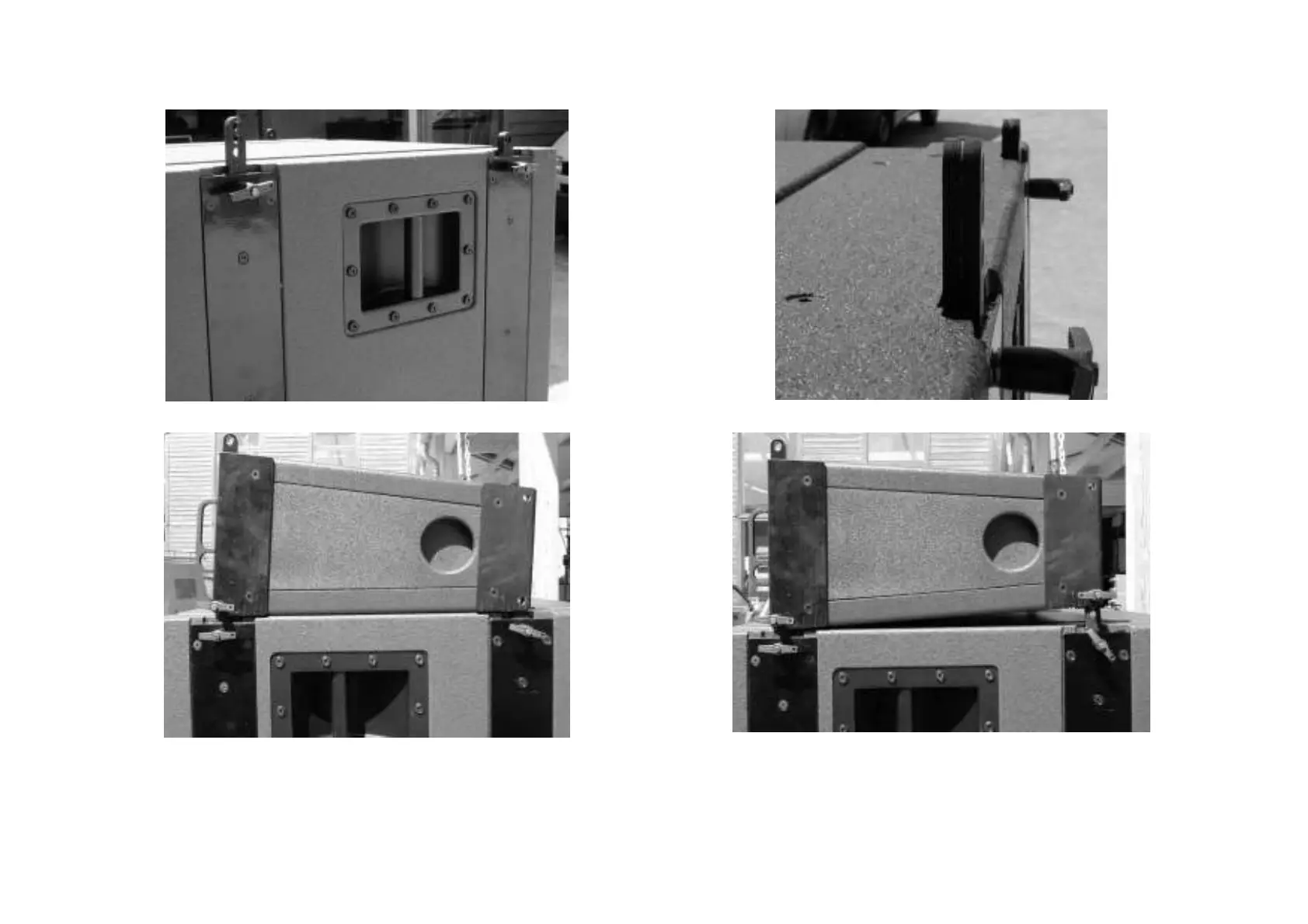

(i) Pre-attach dV-ANGLESD (front) and dV-ANGLESDP (rear) to dV-SUB
(ii) Note: The ''fat'' part of dV-ANGLESD and dV-ANGLESDP is oriented
towards the center of dV-SUB on both sides
(iii) Place dV-DOSC in position (inverted) and secure the front 2 points
(iv) Lift dV-DOSC into position and secure with dV-PIN25
