9. Pry the oil wick cartridge with 2 screwdrivers and dispose of it according
to local regulations.
10. Remove the Porex rods (8x) from the guides using tweezers.

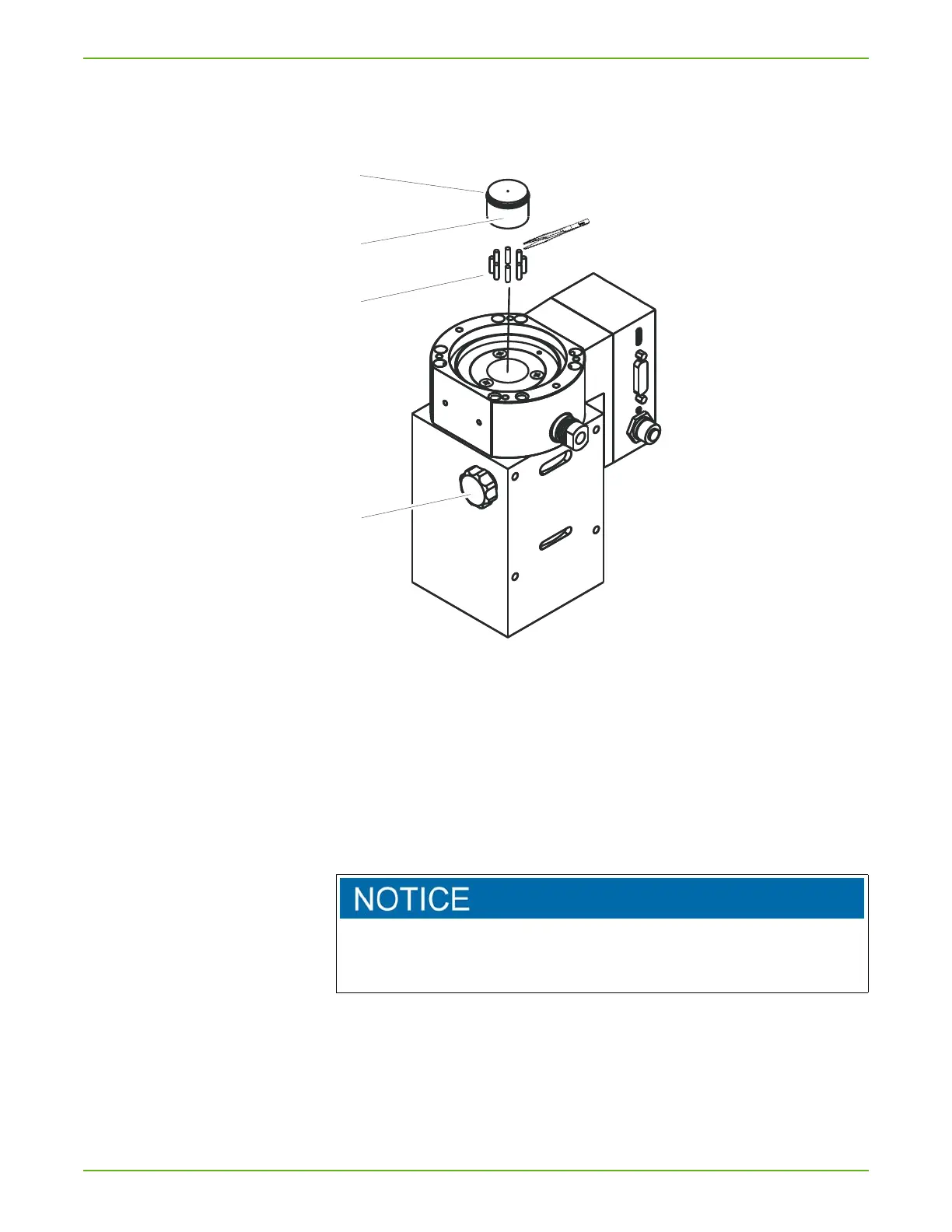

Fig. 23: TITANTEST™: Replace with new image of oil wick cartridge
a O-ring
b Operating fluid reservoir
c Porex rod
d Ventilating screw
11. Remove the contamination on the turbo molecular pump and cover
with a clean, lint-free cloth. Do not use cleaning liquids.
12. Insert the new Porex rods (8x) using tweezers.
13. Slide in the new oil wick cartridge into the pump up to the O-ring.
14. Screw in the cover with a new O-ring. Note the tightening torque for the
cover of 13 Nm +/-10%.
Make sure that the new O-ring is inserted in the correct position. An in-
correctly mounted O-ring can result in gross leaks and a malfunction of
the device.
15. Set up the device again.
Material damage due to incorrect position of the oil wick cartridge.
► Do not press in the new oil wick cartridge completely. The new oil wick
cartridge will be positioned correctly when you screw in the cover.
