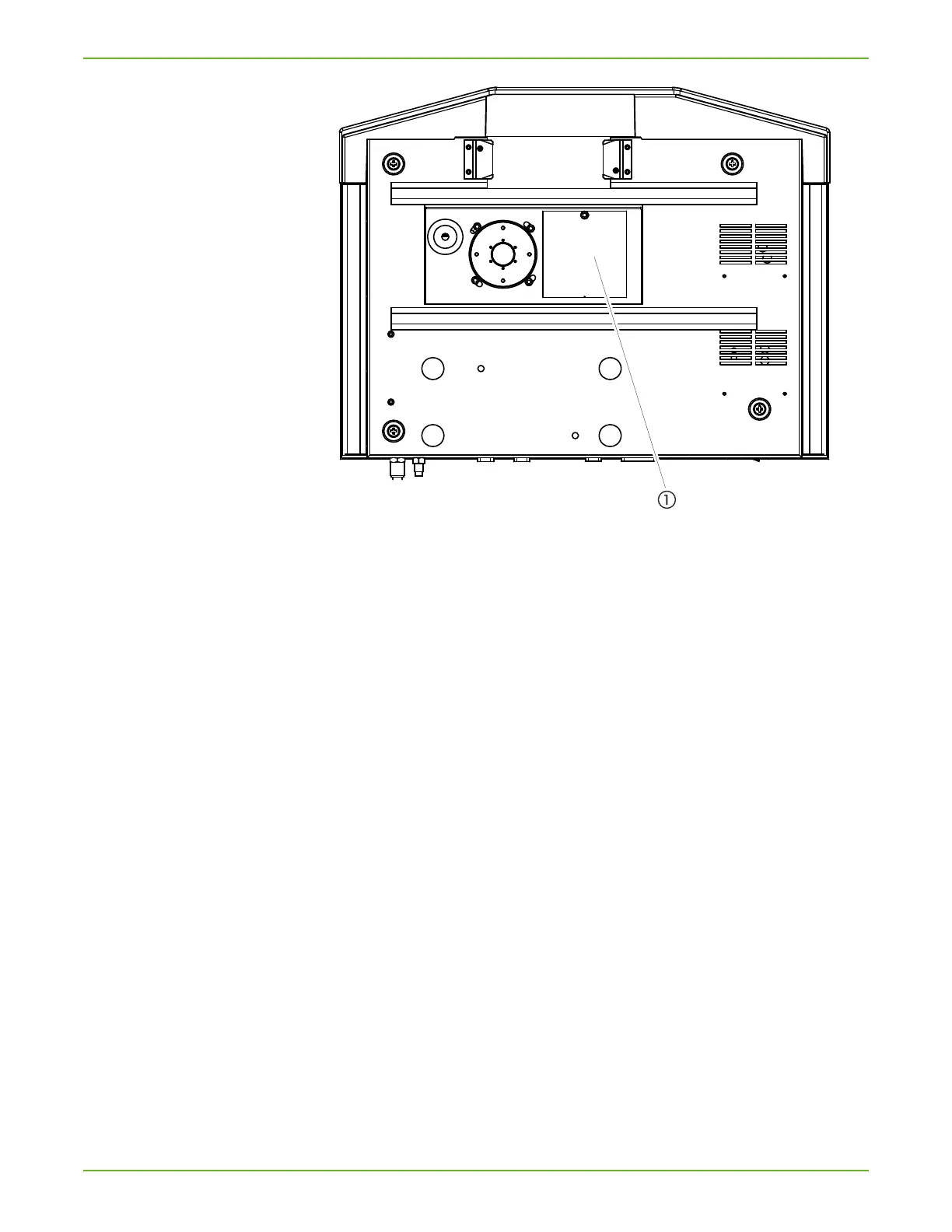

Fig. 25: Chassis bottom with inspection opening
a Cover plate for ion source
2. Set the unit on its side so that you can access the inspection opening.
3. Loosen the cap nut of the ion source connector and pull the ion source
cable off the ion source.
Not the high insertion forces of the ion source connector!
4. Loosen the 4 hexagon socket screws of the ion source and remove the
compression ring.
5. In order to force away the ion source from the mass spectrometer, use
one of the hexagon socket screws and screw it into the threaded hole in
the ion source flange.
6. Pull the ion source out of the mass spectrometer.
