LACO ORIGINAL OPERATING INSTRUCTIONS TITANTEST™
83
© 2018 LACO TECHNOLOGIES, INC. - [TitanTest itna01en1-07 BA.fm] - 1807

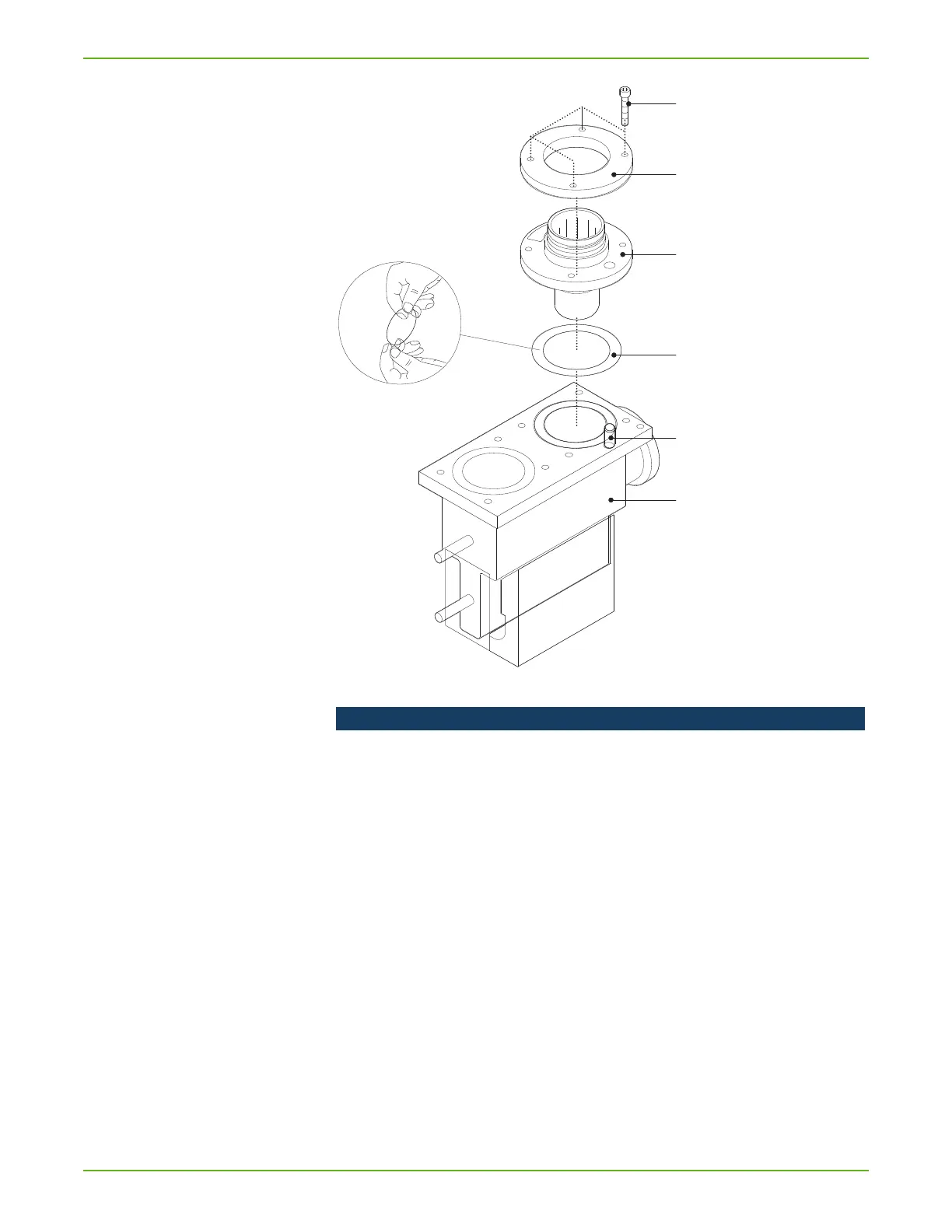

Fig. 26: Installation - ion source
7. Insert the ion source with a new flat gasket (see Fig. 8.7, page 81).
The flat gasket must be cleaned with an alcohol-soaked, lint-free cloth
prior to insertion.
8. Fix the flat seal in place on the ion source and insert the ion source into
the mass spectrometer. The ion source can only be inserted at the posi
-
tion designated by the guide pin in the mass spectrometer.
9. Proceed by refitting the compression ring and tighten the mounting
screws applying 8.5 Nm of torque. The elevated groove inside the com
-
pression ring needs to be fitted on the ion source flange.
10. Slip the ion source connector back on and lock the connector using the
cap nut.
Item Description Item Description
1 4 x screw M5 x 20 4 Flat seal 41,5 x 55 0,5
2 Compression ring - ion source 5 Guide pin
3 Ion source 6 Mass spectrometer housing
