9. Spare parts list

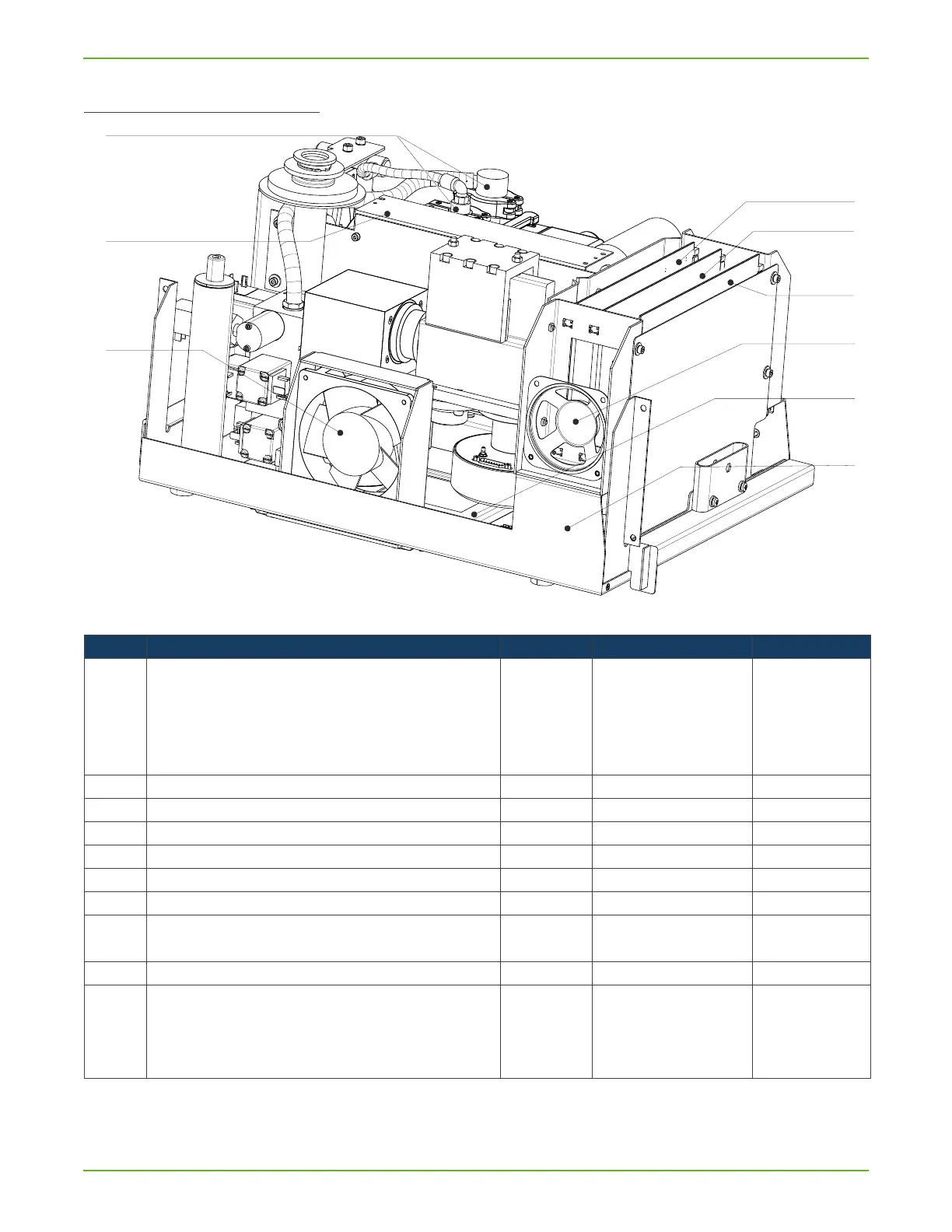

Fig. 29: TITANTEST™ M-Series, Chassis Front View * Wet Series Only / ** Dry Series Only
2
1*
3
4
5
6
8
7
9
Pos. Description Quantity Specifications Order No.
1* Fore Pump Intake & Exhaust Flange Assemblies
–Fore Pump Flange
–Exhaust Flange
– Clamping Ring
–Hose Clamp
1
1
1
2
2
DN16 - G 1/4"
DN16 - G1/8 "
DN 10/16KF
10-16/8
T10020
2 Power Supply 1 24 V / 250 W T10010
3 Cooling Fan 1 24 V T10011
4 PCB I/O Board 1 T10012
5 PCB MC68 Micro Controller Board (without Firmware) 1 T10013
-- Firmware Titan Test (actual version) 1 T10014
6 PCB MSV Board 1 T10015
7Loud Speaker complete
– Mounting Hardware
1 T10016
8 PCB Wiring Board 1 T10017
9 Chassis complete
–Rubber Feet
– Handgrip
–Latches
1
4
2
2
D=20; H=12; M6
T10018
