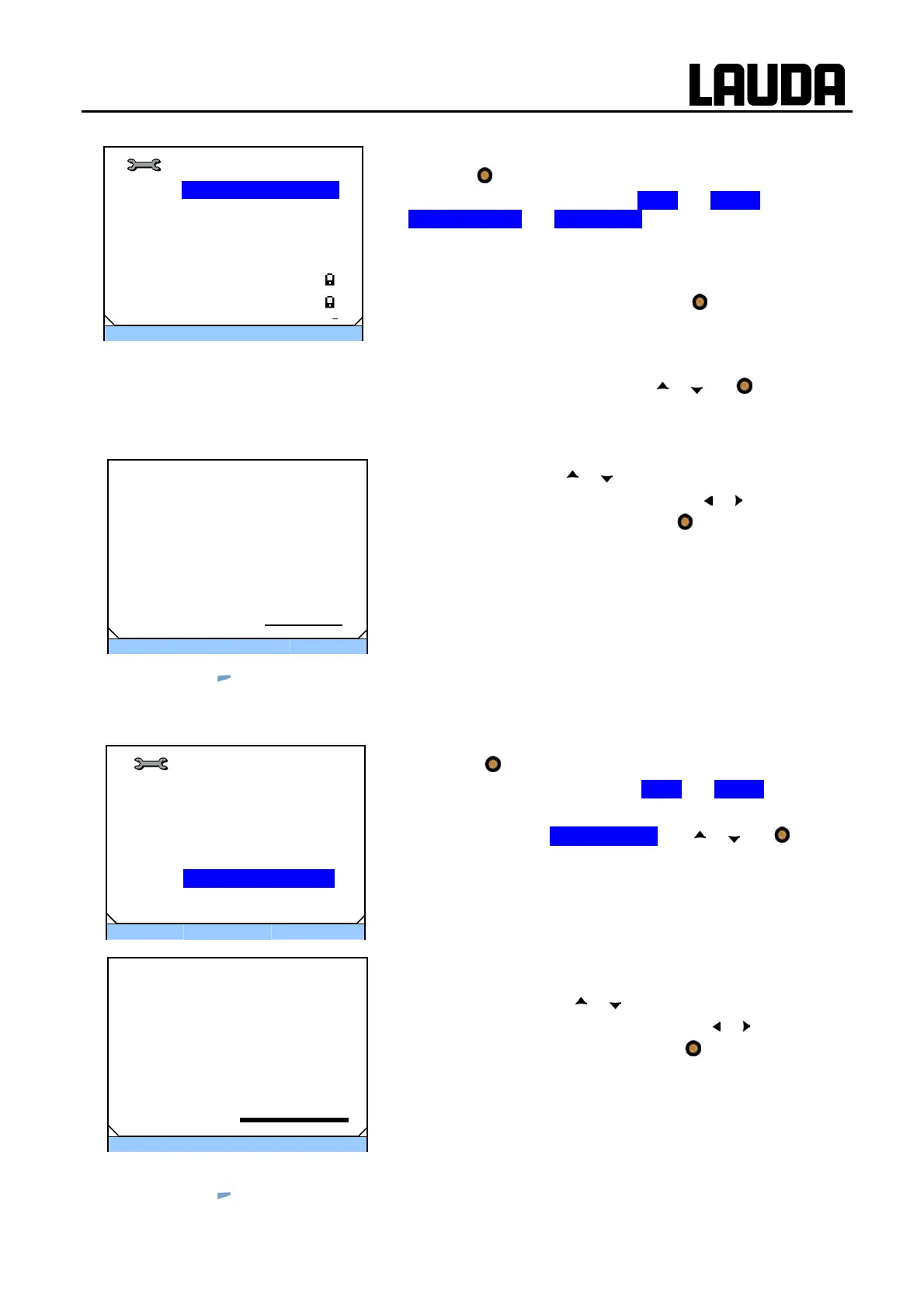

Lauda E 4 G User Manual

ECO GOLD
25/08/2011/ YACE0088 Appendix with settings 101
− Access to the main menu level is obtained by pressing the
enter key
.
− Selection and confirmation of Æ Setup Æ Control Æ
Contr.parameter Æ extern Pt100.
The adjacent menu window appears. Apart from the control pa-
rameters the currently set values are displayed.
− Under the menu point "Tv manual/auto" you can select be-
tween manual and automatic entry using
.
The selection "automatic" is displayed in the menu line by (auto).
If "automatic" is selected, the entry is blocked for the parameters
Tv and Td.
− Select and confirm parameters with
or and .
The respective edit window appears with Min and Max figures for
the parameter values Kpe, Tne, Tve, Tde and Xpf.
− Change the value with
or .
− Single figures can be selected by pressing
or .
− Confirm your choice with the enter key
.
− By pressing
(ESC) you are returned to the menu level without any change.
F.2.1 Setting the correcting quantity limit
− Access to the main menu level is obtained by pressing the
enter key
.
− Selection and confirmation of Æ Setup Æ Control.
The adjacent menu window appears.
− Select and confirm Correction limit. with or and .
The adjacent menu window appears. The minimum and maxi-
mum possible values and the current value are displayed.
− Change the value with
or .
− Single figures can be selected by pressing
or .
− Confirm your choice with the enter key
.
− By pressing
(ESC) you are returned to the menu level without any change.
ESC
סּ OK
- - -
Correction limit
Max: 500.0
Min: 0.0
50.0
ESC
סּ OK
Standby
Extern Pt100
Kpe 0.5
Tne 100
Xpf 4.0
Tv manual/auto auto
Tve 83(auto)
Tde 83(auto)
ESC
סּ OK
- - -
Kpe
Max: 50
Min: 0.1
0.5
ESC
סּ OK
Standby
Control
Control Variable ►
Control parameter ►
Control para. sets
Setpoint offset ►
Correction limit. 50.0.
