ECO GOLD
25/08/2011/ YACE0088 Appendix with settings 91

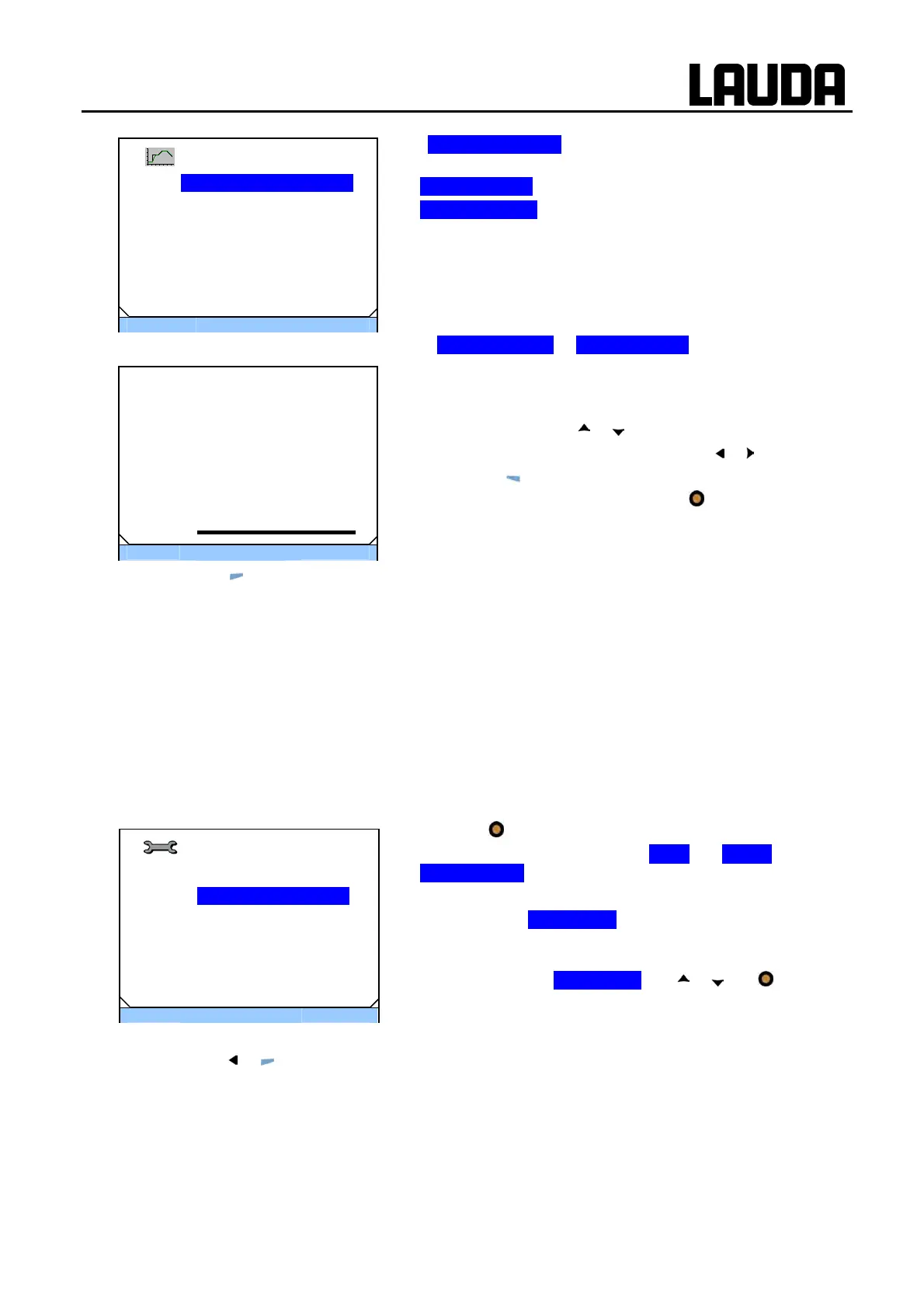

With Temperature Limits you can display and manually input the
temperature limits for the graphical display.
− Temp.Scale Min Displays current minimum value
− Temp.Scale Max Displays current maximum value
When Temp.Scale Max or Temp.Scale Min (as in the illustrated
example) has been selected, the entry window appears.
The minimum and maximum possible temperature values and the
current minimal temperature value are displayed.
− Change the value with
or .
− Single figures can be selected by pressing
or .
− By pressing
(+/-) the arithmetic sign can be changed.
− Confirm your choice with the enter key
.
− By pressing
(ESC) you are returned to the menu level without any change.
D External control
The devices can also be optionally controlled via an external Pt100 temperature sensor, which can be
connected at the back of the control head. It is necessary to install an external Pt100/LiBus module (Ì
6.7) for external control (Ì F.2). The module is available as an accessory (Ì 9).
Furthe
rmo
re, the signal coming from an analogue or serial module can also be controlled. Analogue
module and contact modules are available as accessories (Ì 9).
D.1 Activating external control (external Pt100)
− Access to the main menu level is obtained by pressing the
enter key
.
− Selection and confirmation of Æ Setup Æ Control Æ
Contr. Variable.
The adjacent menu window appears.
− The menu item extern Pt100 only appears when the mod-
ule for an external connection is available. A temperature
sensor has to be connected to the module
− Select and confirm extern Pt100 with or and .
− By pressing
or (ESC) you are returned to the menu level without any change.
Note: To show the selected control variable on the display, carry out chapter (Ì D.2).
ESC
סּ OK
Standby
Contr. Variable
Intern Pt100
extern Pt100 .
extern analog
extern serial
extern USB
ESC
סּ OK
Standby
Temperature Limits
Temp.Scale Min 0.0°C.
Temp.Scale Max 50.0°C
ESC
סּ OK
+/-
Temp.Scale Min
Max: 202.0
Min: -55.0
-25.00
