Lauda E 4 G User Manual

ECO GOLD
25/08/2011/ YACE0088 Operation 43

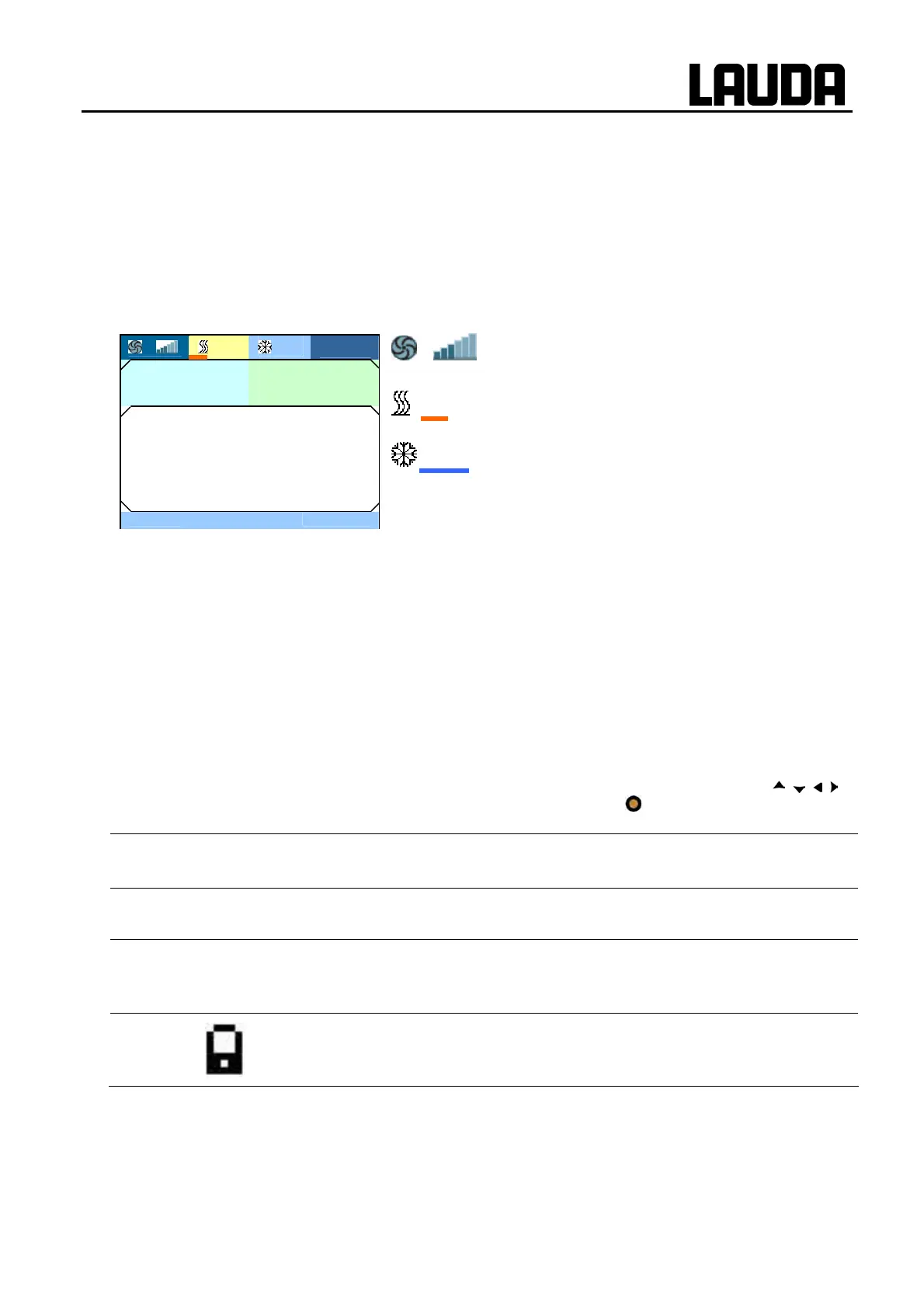

7.3 Display representation
The ECO thermostats offer you intuitive menu guidance. In the following the possible window views and the
symbols used are explained.
7.3.1 Basic window
The following information is displayed depending on the operating
status:
3
25 %
75 %
T
ext
T
set
T
int
Display,
~
Menu,
Standby
Pump runs with the displayed pump level, graphical
display with bars.
Heating is active and heats with displayed percent-
age of total power.
Heating is active and cools with displayed percent-
age of total power (only with cooling devices).
Date and time.
Temperature of the external application (if external
temperature sensor is connected)
Set-point temperature
Current bath temperature
Soft-key bar; function call via associated keys
If standby is activated (Ì 7.4.4), "Standby" appears instead of the symbol for h
e
ating/cooling.
7.3.2 Menu window
The menu of the ECO GOLD thermostats consists of several menu levels. With the cursor keys , , ,
you can call the individual menu points and select them with the enter key
.
~
Symbolizes the enter key or its assigned function.

Displays the currently selected function.
►
Indicates that further menu levels (submenus) are present.
The padlock symbolizes a blocked function.
(Possible reasons: No access rights or function deactivated by parameter
settings).
3 25% 75%
27.10.2009
10:55
Text Tset
- - - °C
30.00°C
26.45
Display
סּ Menu
Standby
Tint
