ECO GOLD
25/08/2011/ YACE0088 Operation 45

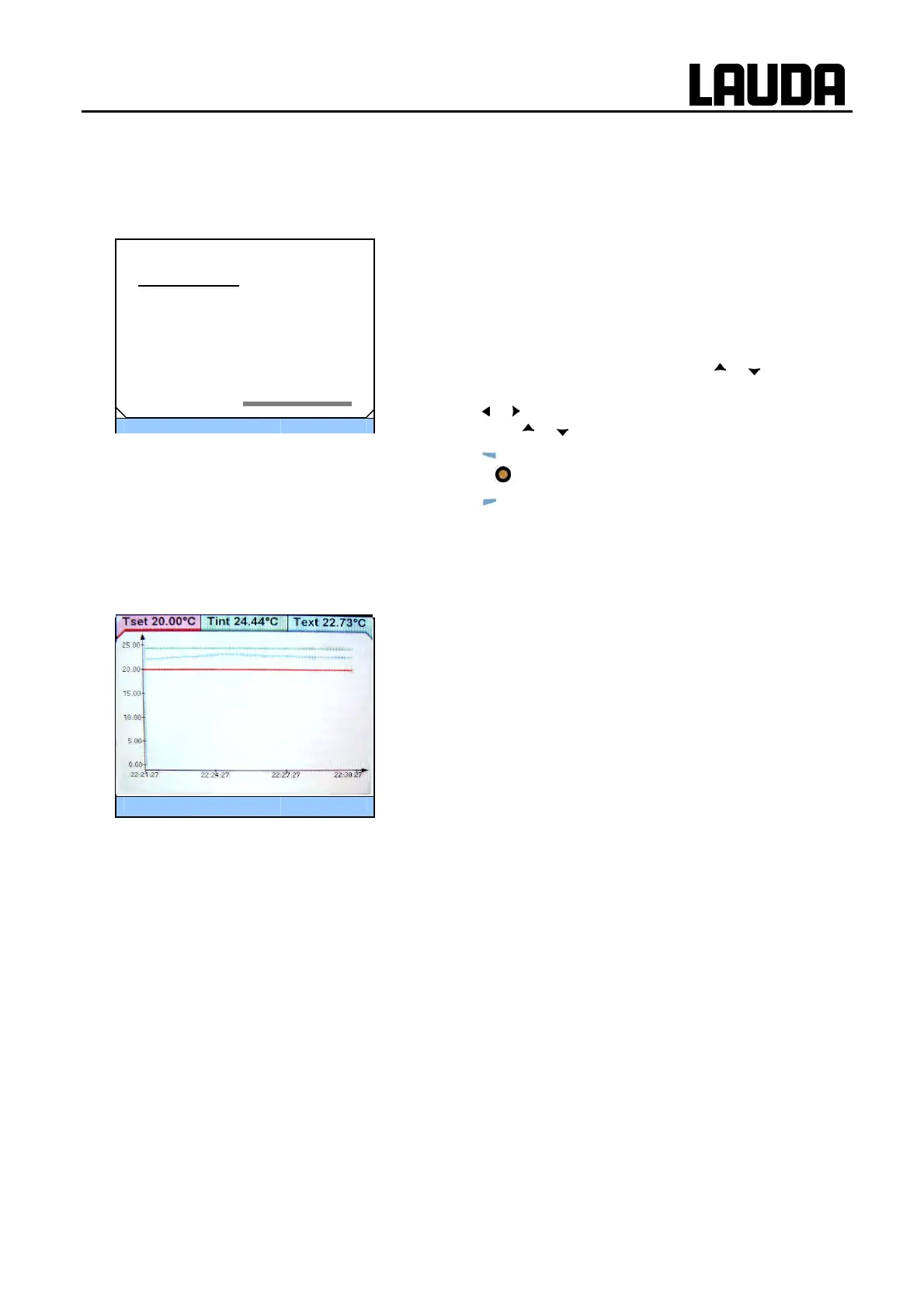

7.3.3 Entry window
Values are input using the entry window.
In the entry window the following information is displayed:
The first line contains the input parameter in short form (cf. exam-
ple: T
set
).
The parameter is located below this in plain text.
Max. and Min. state the limits for the value to be entered.
The value to be entered is shown in large characters. The cursor
flashes under the value.
You can change the value with the cursor key
or . If you keep
one of the two cursor keys pressed longer, input is speeded up.
By pressing
or you can also select numbers individually and
change them with
or .
By pressing
(+/-) the arithmetic sign can be changed.
The enter key
takes over the set value.
By pressing
(ESC) you are returned to the menu level without
any change.
7.3.4 Graphics window
The ECO GOLD thermostats offer you the possibility of displaying temperature traces graphically (Ì 0).
In the graphics window the following information is displayed de-
pending on the setting:
T
set
set-point temperature (red)
T
int
internal bath temperature (green)
T
ext
Temperature on the external consumer, external
temperature sensor (blue).
Display
סּ Menu
Standby
ESC
סּ OK
+/-
Tset
Setpoint Value
Max: 202.0
Min: -30.0
25.0
