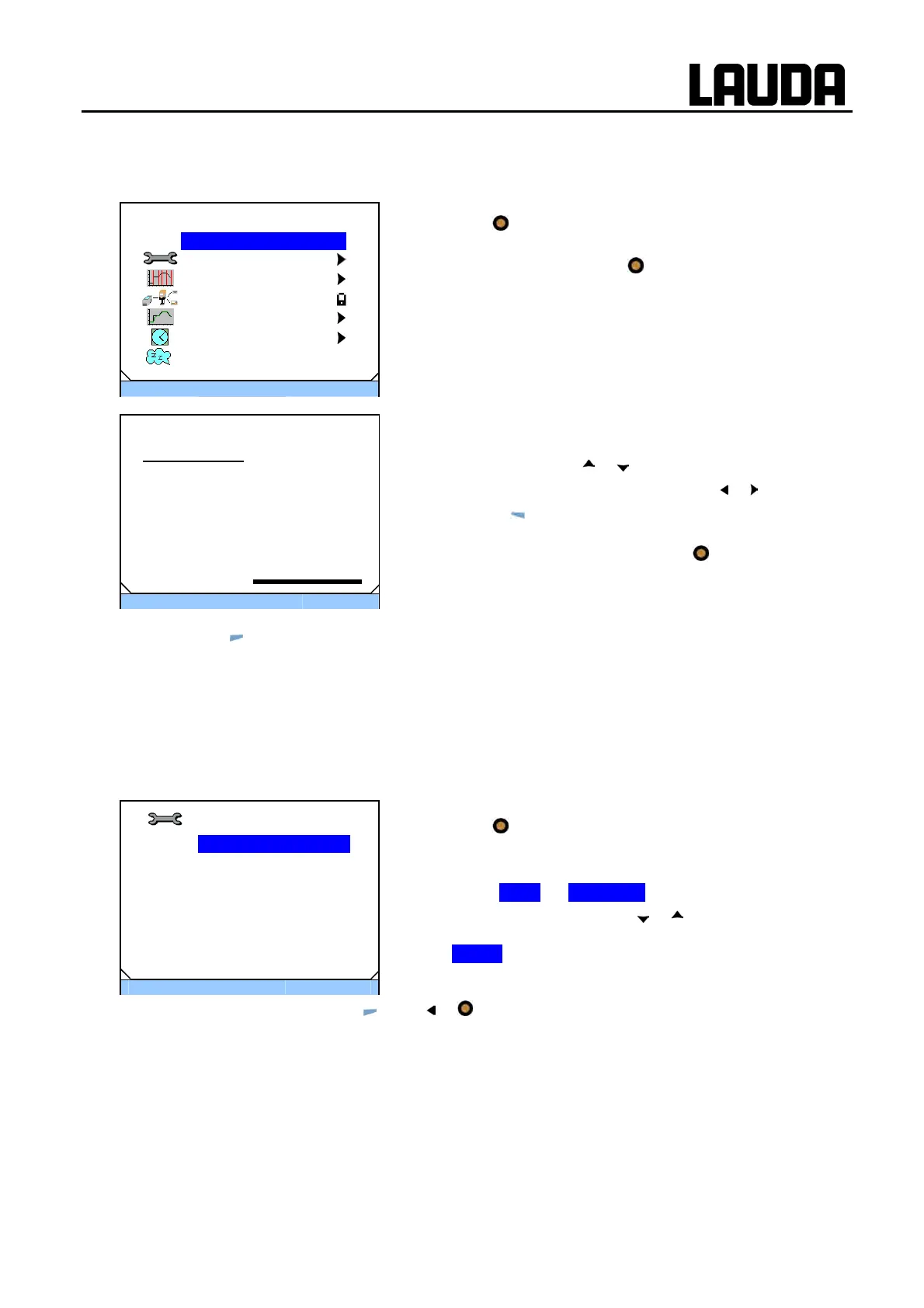

7.4.2 Setting the temperature set-point value
− Access to the main menu level is obtained by pressing the
enter key
.
− Select the menu point highlighted in color "Set-point tem-
perature" using the enter key
.
The entry window appears. The cursor below the temperature
value flashes and can be changed within the displayed limits.
− Change the value with
or .
− Single figures can be selected by pressing
or .
− By pressing
(+/-), with appropriate equipment, the
arithmetic sign can be changed.
− Confirm your choice with the enter key
.
− By pressing
(ESC) you are returned to the menu level without any change.
7.4.3 Setting the pump level
With the ECO Vario pump you have six pump levels available with which you can optimize the bath
circulation, flow rate and pressure, the noise generated and the mechanical heat input. With small
thermostats (e.g. E 4 G, RE 415 G, RE 420 G) without an external consumer power levels 1 to 3 are
practicable and sufficient.
− Access to the main menu level is obtained by pressing the
enter key
.
− The adjacent menu window appears by selecting and con-
firming Æ Setup Æ Pump level.
− The level can be selected with
or . The selected level
is immediately active without confirmation (in this example
it is Level 6).
− You quit the menu by pressing
(ESC) or .
ESC
סּ OK
Standby
Main Menue
TSET Setpoint Value
Setup
Programmer
Interfaces
Graph
Clock
Standby
ESC
סּ OK
+/-
Tset
Setpoint Value
Max: 202.0
Min: -30.0
25.0
ESC
סּ OK
Standby
Pump level
Stage 6 .
Stage 5
Stage 4
Stage 3
Stage 2
Stage 1
