ECO GOLD
25/08/2011/ YACE0088 Appendix with settings 95
Note: No time specification is possible in the start segment (No. 1). The temperature of the first segment
is attained as quickly as possible in order to switch to segment 2 after reaching the set tolerance.
E.2 Creating and editing a program
In the following functions are explained below:
• Creating and editing a program.
• Insert or append a new segment.
• Delete a segment.
Note:
− New segments and be inserted and existing ones changed, also the currently active segment, even
when a program is currently being executed. Furthermore, except for the currently active segment,
all segments can be deleted at any time.
− Changes to the currently running segment are possible. The segment is continued as though the
change has been valid since the start of the segment.
− If the new segment time is shorter than the already expired segment time,
then the program skips to the next segment.
− If a segment time is required > 999h: 59min, then this time must be spread over several consecu-
tive segments.

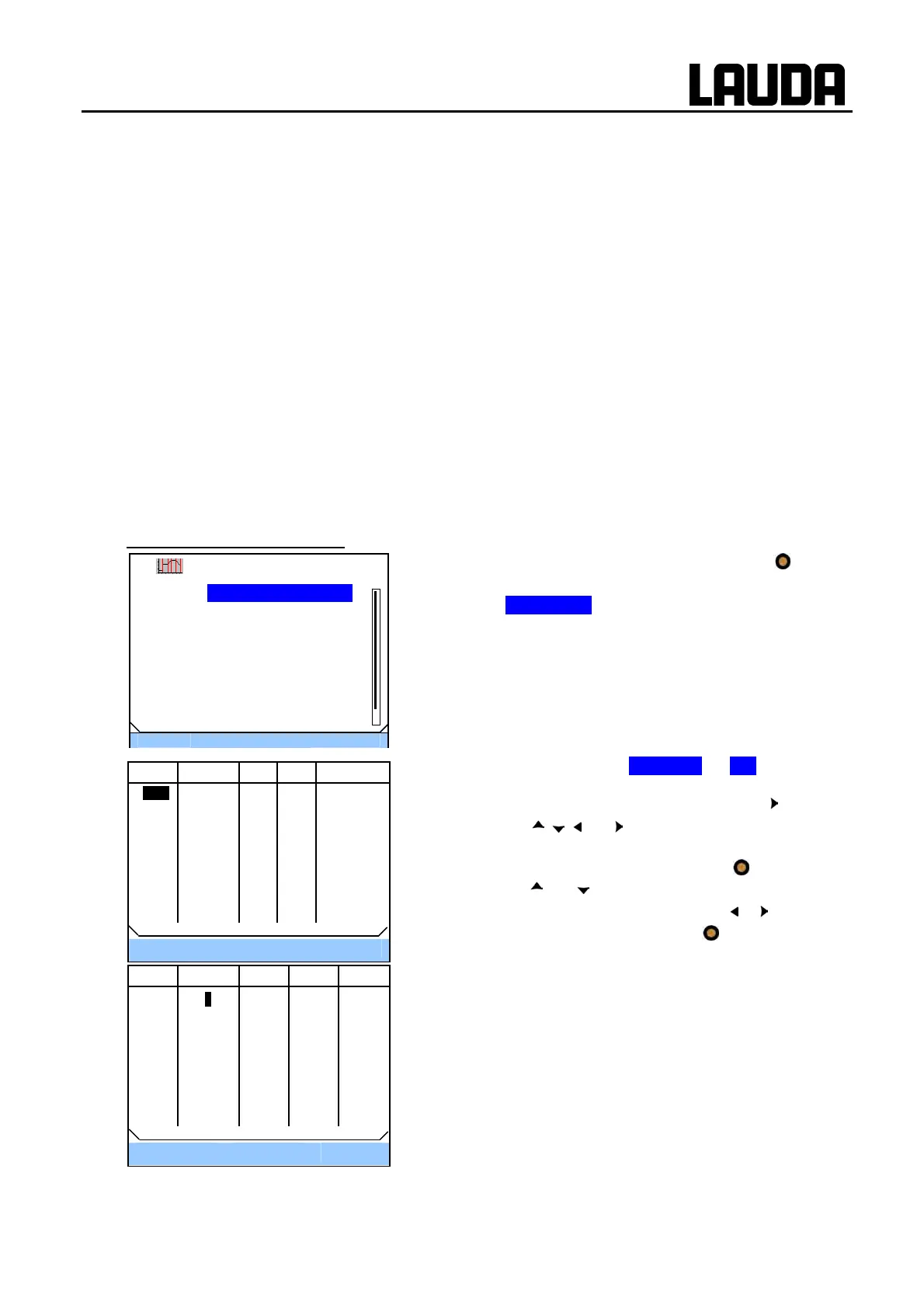

Creating and editing a program:
Compare the programming example (Ì E.1)
− Access to the menu level is obtained by pressing
.
− The adjacent menu window appears by selecting and con-
firming Æ Programmer.
− By selecting and confirming Program 1 Æ Edit you obtain
access to the editor view of the programmer. To view the
complete window information go to the right with
.
− With the keys
, , and you obtain access to the individ-
ual segments.
− The appropriate parameter is selected with
and can be
changed with
and .
− Single figures can be selected by pressing
or .
− Confirm your choice with the enter key
.
You can now select the next segment to be changed using the
control keys.
No. Tend hh mm Tolerance
Start
30.00 --
--
0.1
2 50.00 0
20
0.0
3
50.00 0 20 0.0
4 70.00 0 20 0.1
5 60.00 0 30 0.0
6 30.00 0 0 0.0
ESC
סּ new
delete
No. Pump S1 S2 S3
Start
2 off - - - off
2 2 off - - - off
3
3 off - - - off
4 4 off - - - off
5 2 off - - - off
6 2 off - - - off
ESC
סּ OK
- - -
ESC
סּ OK
Standby
Programmer
Program 1 .
Program 2
Program 3
Program 4
Program 5
