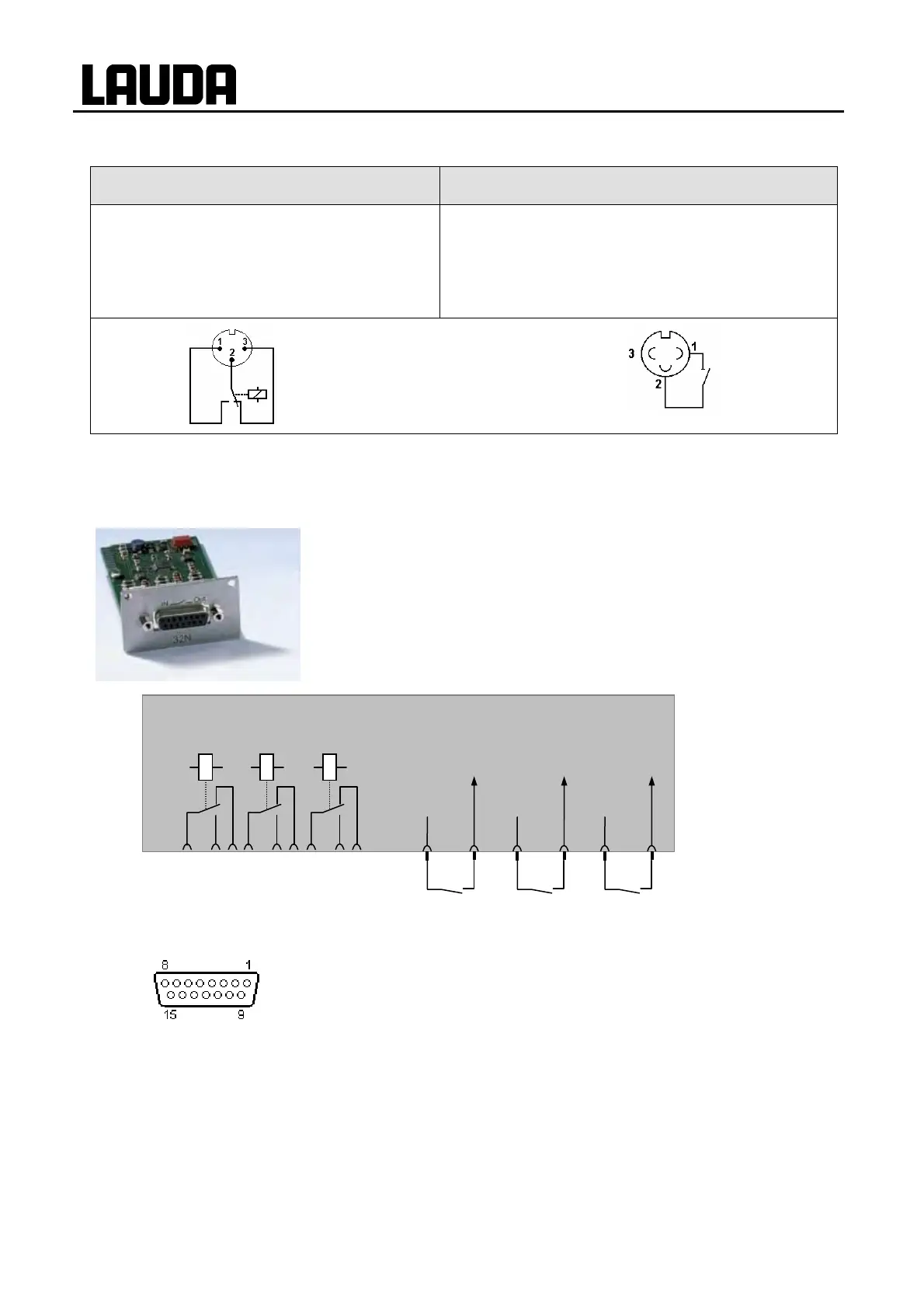

Lauda E 4 G - G.6.2 Contact Module LRZ 915 with 3 Inputs and 3 Outputs

ECO GOLD
118 Appendix with settings 25/08/2011/ YACE0088
Contact outputs and inputs
Output Input
− View of flanged plug (front) or
coupling-socket solder side
− Max. 30 V; 0.2 A
Coupling socket catalogue no. EQD 047
− View of socket (front) or solder side
of plug
− Signal approx. 5 V, 10 mA, do not assign Con-
tact 3.
Coupling plug catalogue no. EQS 048
1 = NO contact
2 = Center contac
t
3 = NC contact
Note: Only use screened connecting leads and connect the screen to the plug housing. Cover unused
connectors with protective caps.
G.6.2 Contact module LRZ 915 with 3 inputs and 3 outputs
Contact module (catalogue no. LRZ 915) with 15-pole SUB-D socket. Range
of functions as LRZ 914, but with three relay contact outputs (changeover,
max. 30V/0.2A) and three binary inputs for control via external voltage-free
contacts.
Contact inputs and outputs
View of sockets on the plug side or of sockets on the solder side.
A suitable 15-pole Sub-D plug can be obtained together with a suitable hous-
ing under the catalogue no. EQM 030 (plug case catalogue no. EQG 017).
1
5 V
Input
Output
1 2 3
Contact Module LRZ 915; SUB-D
12 4 5 6 13 14 15 7 8
2
5 V
3
5 V
1 9 2 10 3 11
