ECO GOLD
25/08/2011/ YACE0088 Before putting the device into operation 23

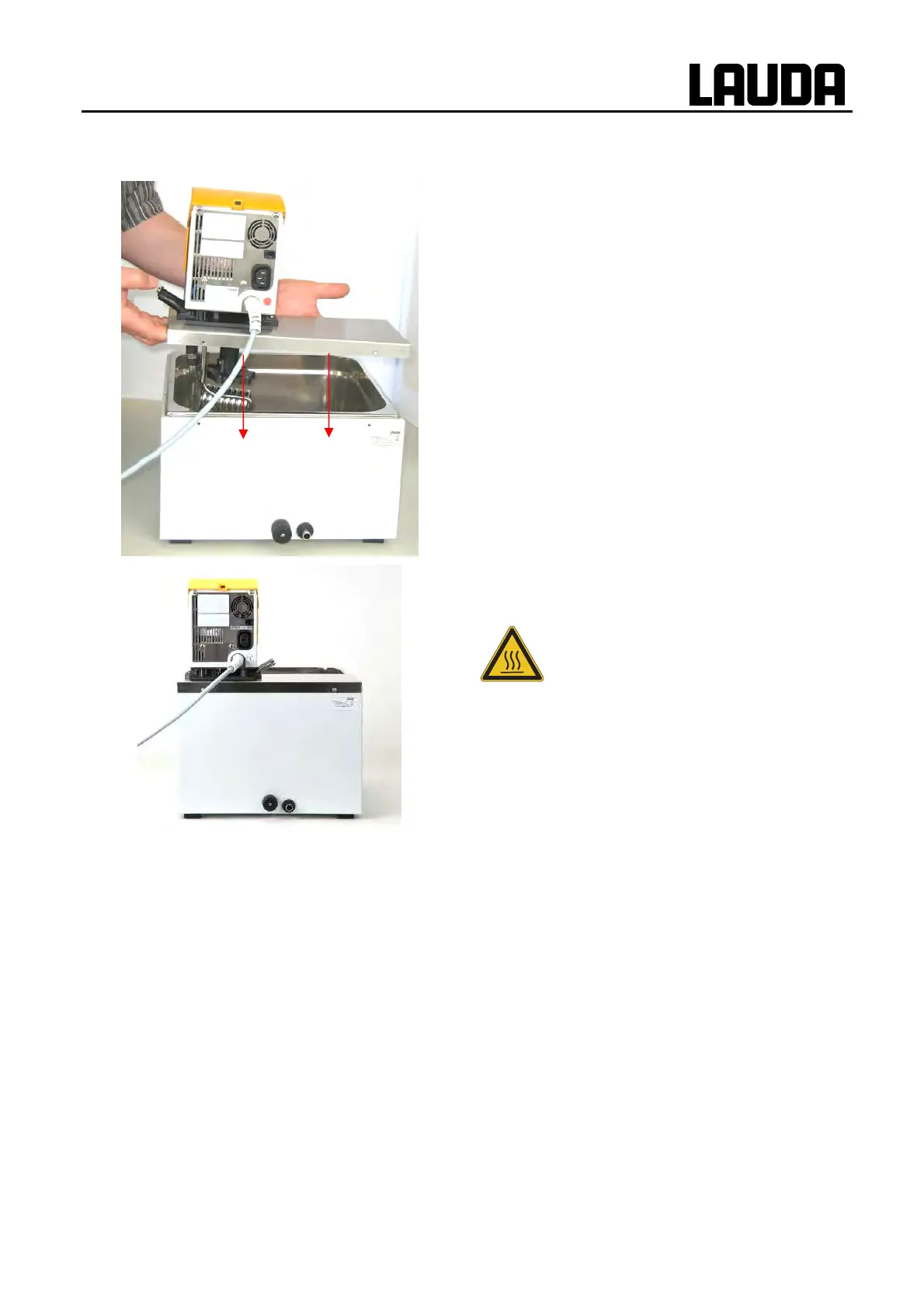

Assembly as immersion thermostat
− Place the bath vessel on a flat surface.
− The control head is already screwed to the bath bridge.
In the rear part of the bath there are two slots present on
the bath edge. Guide the prongs of the bath bridge into
the slots to the right and left from the rear of the bath.
Place the bath bridge fully onto the bath bridge. Mount
the bath bridge on the rear of the bath with the two en-
closed cross-head screws.
− Ensure that the ventilation opening at the back of the
control head is free.
− Keep a distance of at least 20 cm free on all sides of the
device.
Important: Set the flow distribution to INT so that during
operation as a bath thermostat (without external consumer)
the flow is discharged from the opening for the internal bath
circulation.
When mounting the pump connection set, the outflow nozzle
of the pump set must be closed (use sealing plug) or con-
nected to the return nozzle by a hose.
− For bath temperatures above 70 °C attach the sticker
included in the supplied items to an easily visible point on
the bath.
− The control head must be removed when optionally fitting
the pump connection set (Ì 6.2). To do this, release the
two cros
s-head screws and carefully take the control
head out of the bath bridge.
