Lauda E 4 G User Manual

ECO GOLD
25/08/2011/ YACE0088 Technical data and graphs 73

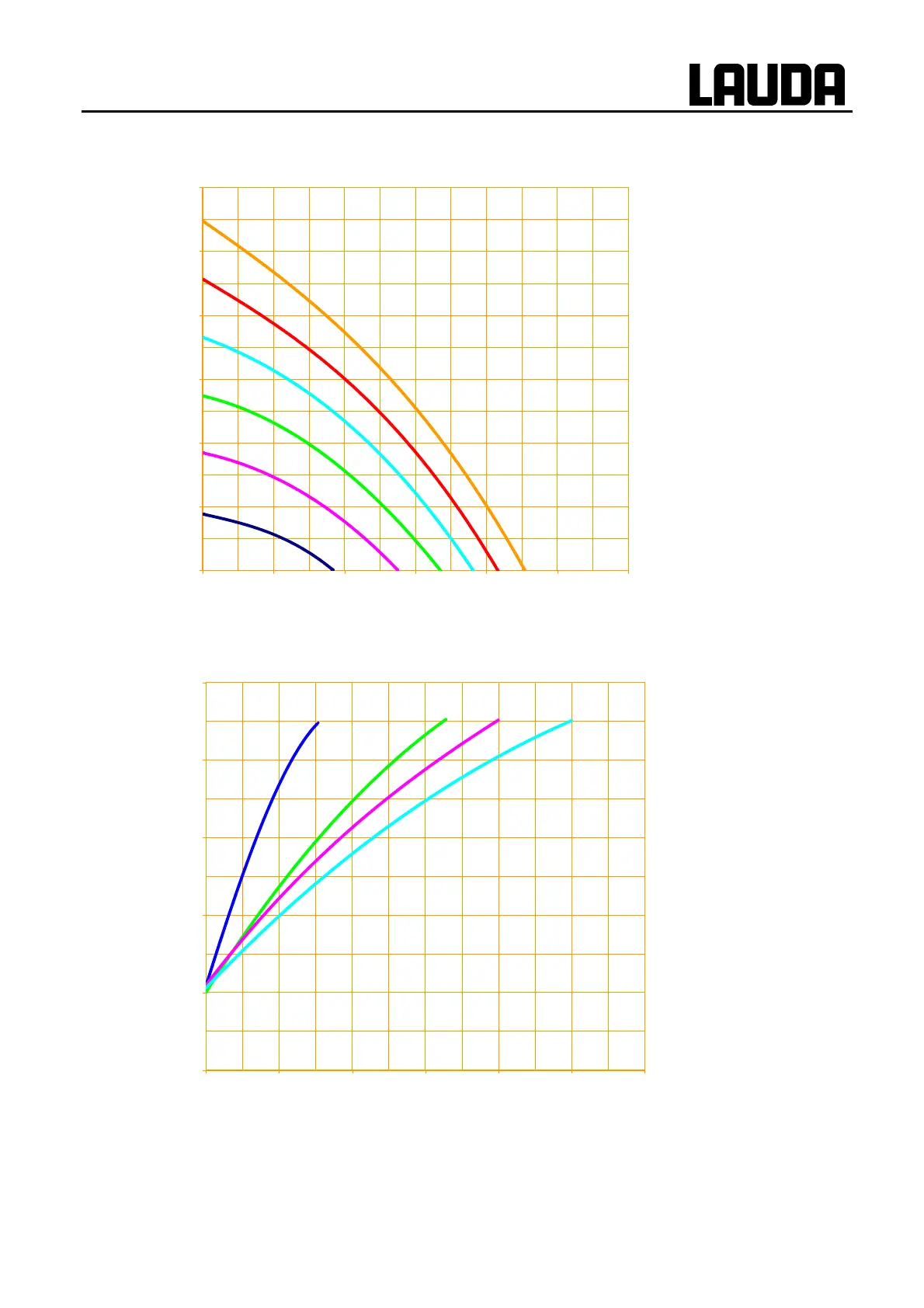

Pump characteristic ECO GOLD
0
0,1
0,2
0,3
0,4
0,5
0,6
0 5 10 15 20 25 30
Förderstrom [L/min]
Förderdruck [bar]
Pumpenkennlinien
gemessen mit Wasser
Heating curve for ECO GOLD heating thermostats with transparent bath
0
20
40
60
80
100
00:00 00:10 00:20 00:30 00:40 00:50 01:00
Aufheizzeit [h:min]
Badtemperatur [°C]
Stage 6
Stage 5
Stage 4
Stage 3
Stage 2
Stage 1
ET 6 G ET 12 G ET 15 G ET 20 G
Heat transfer liquid: Water,
bath closed
Heat transfer liquid:
Water,
bath closed
Pump characteristics
measured with water
Flow rate in L/min
Heating time in h:min
Bath tem
p
erature in °C Dischar
g
e
p
ressure in bar

Lauda E 4 G Specifications

General

Brand	Lauda
Model	E 4 G
Category	Thermostat
Language	English
