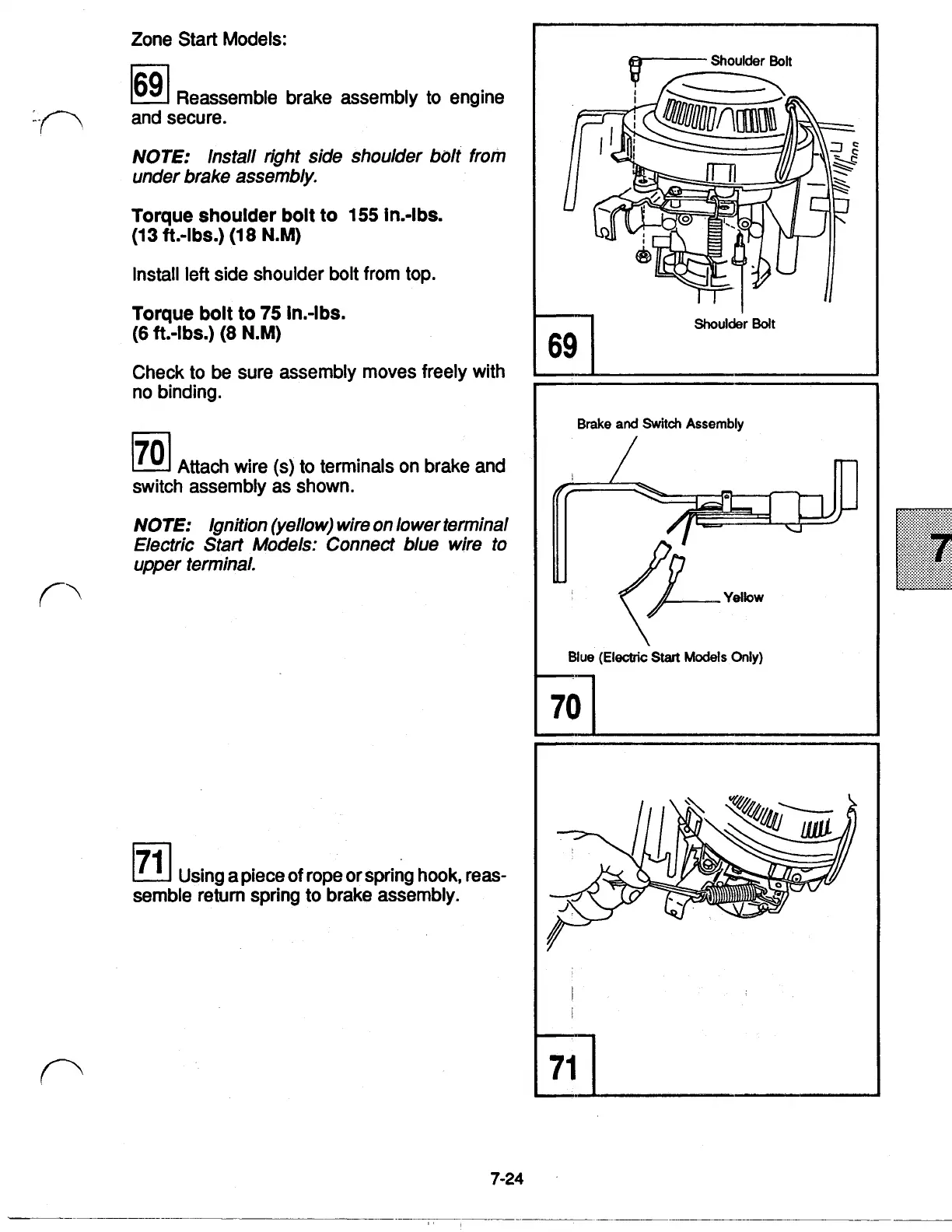

Zone Start Models:
69
Reassemble brake assembly to engine
and secure.
NOTE:
Install right side shoulder bolt from
under brake assembly.
Torque shoulder bolt to
155
in.-lbs.
(13
ft.-lbs.)
(18
N.M)
Install left side shoulder bolt from top.
Torque bolt
to
75
In.-lbs.
Check
to
be
sure assembly moves freely with
no binding.
(6
ft.-lbs.)
(8
N.M)
Attach wire
(s)
to terminals on brake and
switch assembly
as
shown.
NOTE:
Ignition (yellow) wire on lower terminal
Electric Start Models: Connect
blue
wire to
upper terminal.
Shoulder
Bolt
Shoulder
Bolt
I
69
Brake
and
Switch
Assembly
Blue
(Electric~Start
Models
Only)
70
I
71
Using
a
piece
of
rope
or
spring
hook,
reas-
semble return spring to brake assembly.
7-24
