1661

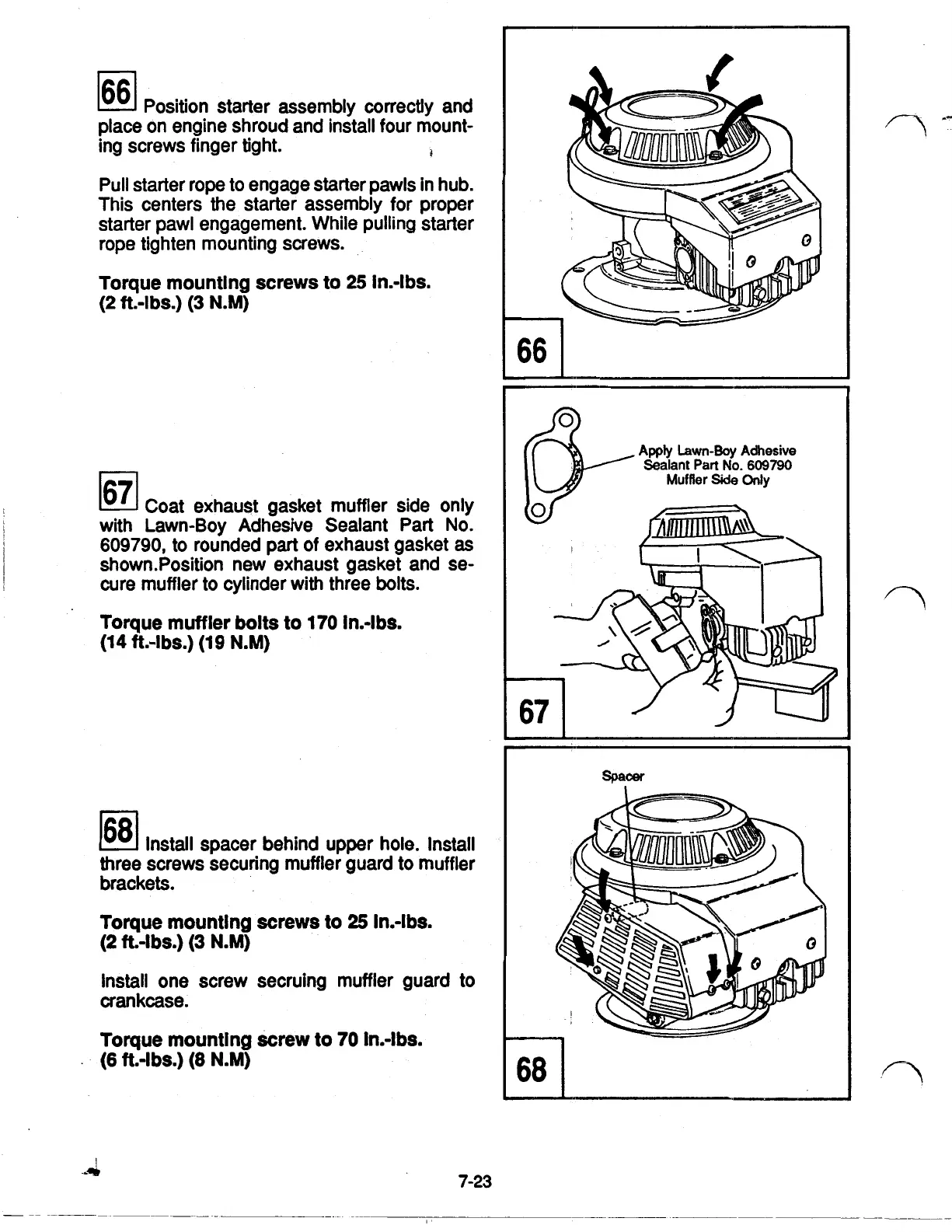

Position starter assembly correctly and
place on engine shroud and install four mount-
ing screws finger tight.
Pull starter
rope
to engage starter pawls in hub.
This centers the starter assembly for proper
starter pawl engagement. While pulling starter
rope tighten mounting screws.
Torque mounting screws to
25
in.-lbs.
(2
ft.-lbs.)
(3
N.M)
67
Coat exhaust gasket muffler side only
with Lawn-Boy Adhesive Sealant Part
No.
609790,
to rounded part
of
exhaust gasket
as
shown. Position new exhaust gasket and se-
cure muffler to cylinder with three bolts.
Torque muffler bolts
to
170 In.-lbs.
(14 ft.-lbs.) (19
N.M)
68
Install spacer behind upper hole. Install
three screws securing muffler guard to muffler
brackets.
Torque mounting screws to
25
In.-lbs.
(2
ft.-lbS.)
(3
N.M)
Install one screw securing muffler guard to
crankcase.
Torque mounting screw to 70 In.-lbs.
(6
ft.-lbs.)
(8
N.M)
7-23
I
66
I
Apply Lawn-Boy Adhesive
Sealant Part
No.
609790
Muffler
Side
Only
I
\
68
I
