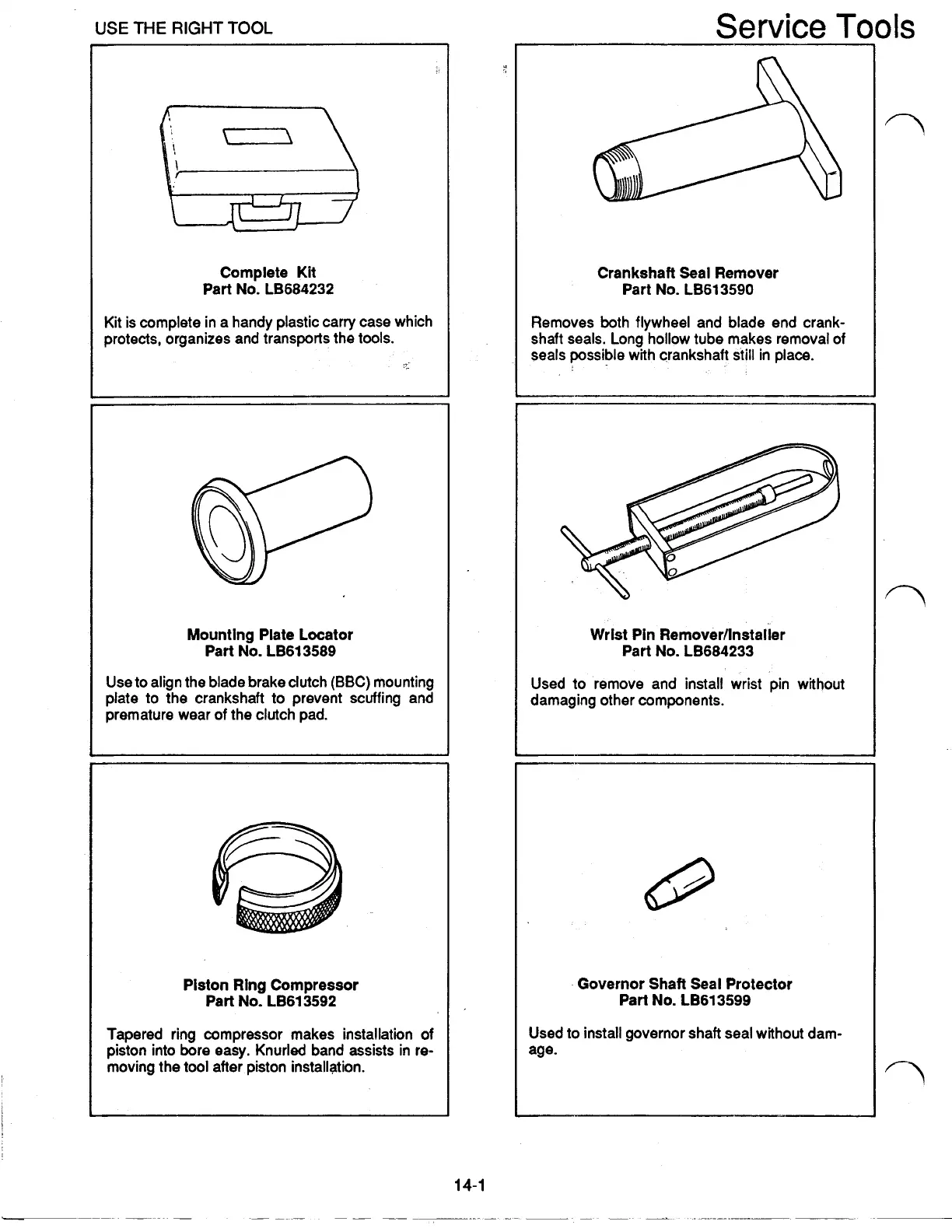

USE
THE RIGHT TOOL
Service
Tools
Complete Kit
Part
No.
LB684232
Kit is complete in a handy plastic carry case which
protects, organizes and transports the tools.
Mounting Plate Locator
Part
No.
LB613589
Use to align the blade brake clutch
(BBC)
mounting
plate to the crankshaft to prevent scuffing and
premature wear of the clutch pad.
Piston Ring Compressor
Part
No.
LB613592
Tapered ring compressor makes installation
of
piston into bore easy. Knurled band assists in re-
moving the tool after piston installation.
14-1
Crankshaft Seal Remover
Part
No.
LB613590
Removes both flywheel and blade end crank-
shaft seals. Long hollow tube makes removal
of
seals possible with crankshaft still in place.
Wrist Pin Remover/Installer
Part
No.
LB684233
Used to remove and install wrist pin without
damaging other components.
Governor Shaft Seal Protector
Part
No.
LB613599
Used to install governor shaft seal without dam-
age.
