Lawn-Boy M Series User Manual

Flywheel Holder
Part
No. LB613593
Prevents damage to the flywheel when removing
and installing flywheel nut. The current Lawn-Boy
piston stop MAY
NOT be used on the "M"engine.
Puller
Part
NO. LB611600
Used to remove the flywheel and blade brake
clutch
(BBC).
Air Gap Gauge
Part
No. 604659
Adjust the air gap between flywheel magnets and
laminations of
CD ignition module and atternator
assemblies.
1
Governor Adjusting Tool
Part No. LB613597
Used to bend governor linkage to adjust for proper
engine
RPM.

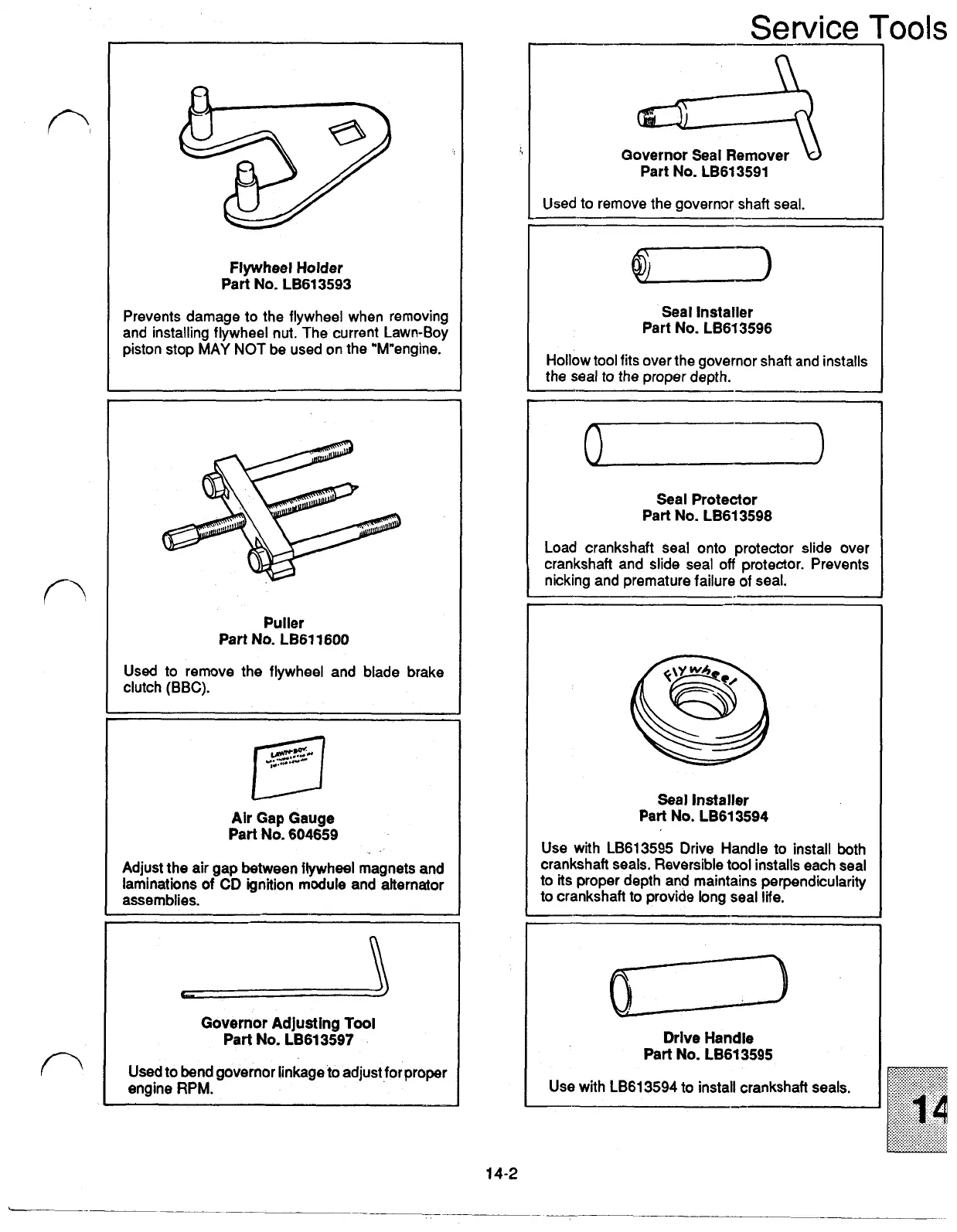

14-2
Service Tools
Governor Seal Remover
Part No.
LB613591
Used to remove the governor shaft seal.
Seal Installer
Part
No. LB613596
Hollow tool fits over the governor shaft and installs
Seal Protector
Part
No. LB613598
Load crankshaft seal onto protector slide over
crankshaft and slide seal
off protector. Prevents
nicking and premature failure of seal.
Seal Installer
Part
No. LB613594
Use with LB613595 Drive Handle to install both
crankshaft seals. Reversible tool installs each seal
to its proper depth and maintains perpendicularity
to crankshaft to provide long seal life.
Drive Handle
Part
No. LB613595
Use with LB613594 to install crankshaft seals.
