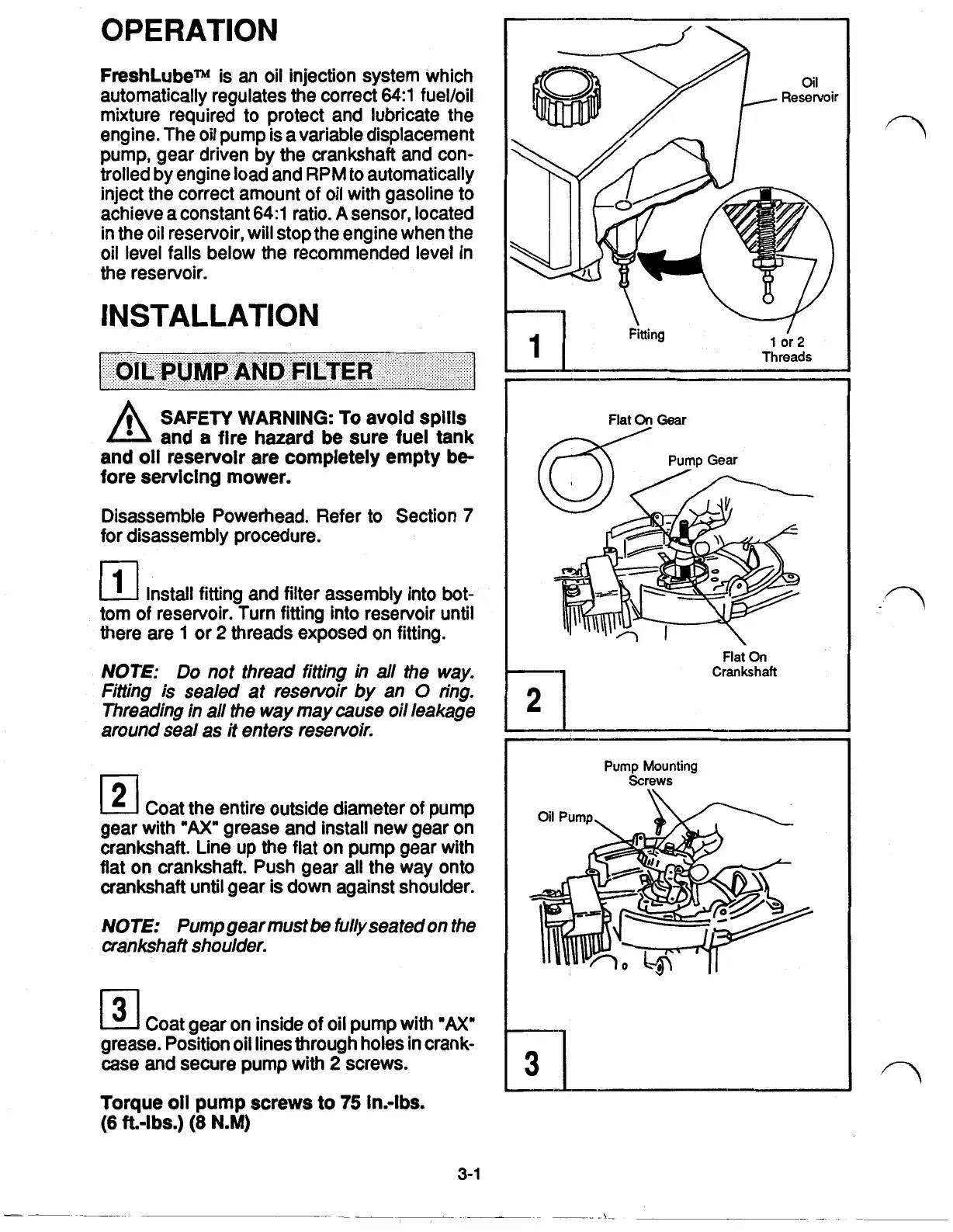

OPERATION
FreshLubeâ„¢
is an oil injection system which
automatically regulates the correct
64:l
fuel/oil
mixture required to protect and lubricate the
engine. The oil pump is a variable displacement
pump, gear driven by the crankshaft and con-
trolled by engine load and RPM to automatically
inject the correct amount of oil with gasoline to
achieve a constant
64:l
ratio.
A
sensor, located
in the oil reservoir, will stop the engine when the
oil level falls below
the
recommended level in
the reservoir.
INSTALLATION
SAFETY WARNING: To avoid spills
and a fire hazard be sure fuel tank
and oil reservoir are completely empty be
fore servicing mower.
Disassemble Powerhead. Refer to Section
7
for disassembly procedure.
Install fitting and filter assembly into bot-
tom of reservoir. Turn fitting into reservoir until
there are
1
or
2
threads exposed on fitting.
NOTE:
Do
not thread fitting in
all
the
way.
Fitting is sealed at reservoir by an
0
ring.
Threading in all
the
way may
cause
oil leakage
around seal
as
it enters reservoir.
Coat the entire outside diameter of pump
gear with
"AX"
grease and install new gear on
crankshaft. Line
up
the flat on pump gear with
flat
on
crankshaft. Push gear all the way onto
crankshaft until gear is down against shoulder.
NOTE:
Pumpgearmust
be
fully seated on the
crankshaft shoulder.
Coat gear on inside of oil pump with
"AX"
grease. Position oil lines through holes
in
crank-
case
and
secure pump with
2
screws.
Torque oil pump screws
to
75
In.-lbs.
(6
ft.-lbs.)
(8
N.M)
3-1
\
Fitting
Threads
Flat
On
Gear
*I
Flat
On
Crankshaft
Pump Mounting
Screws
