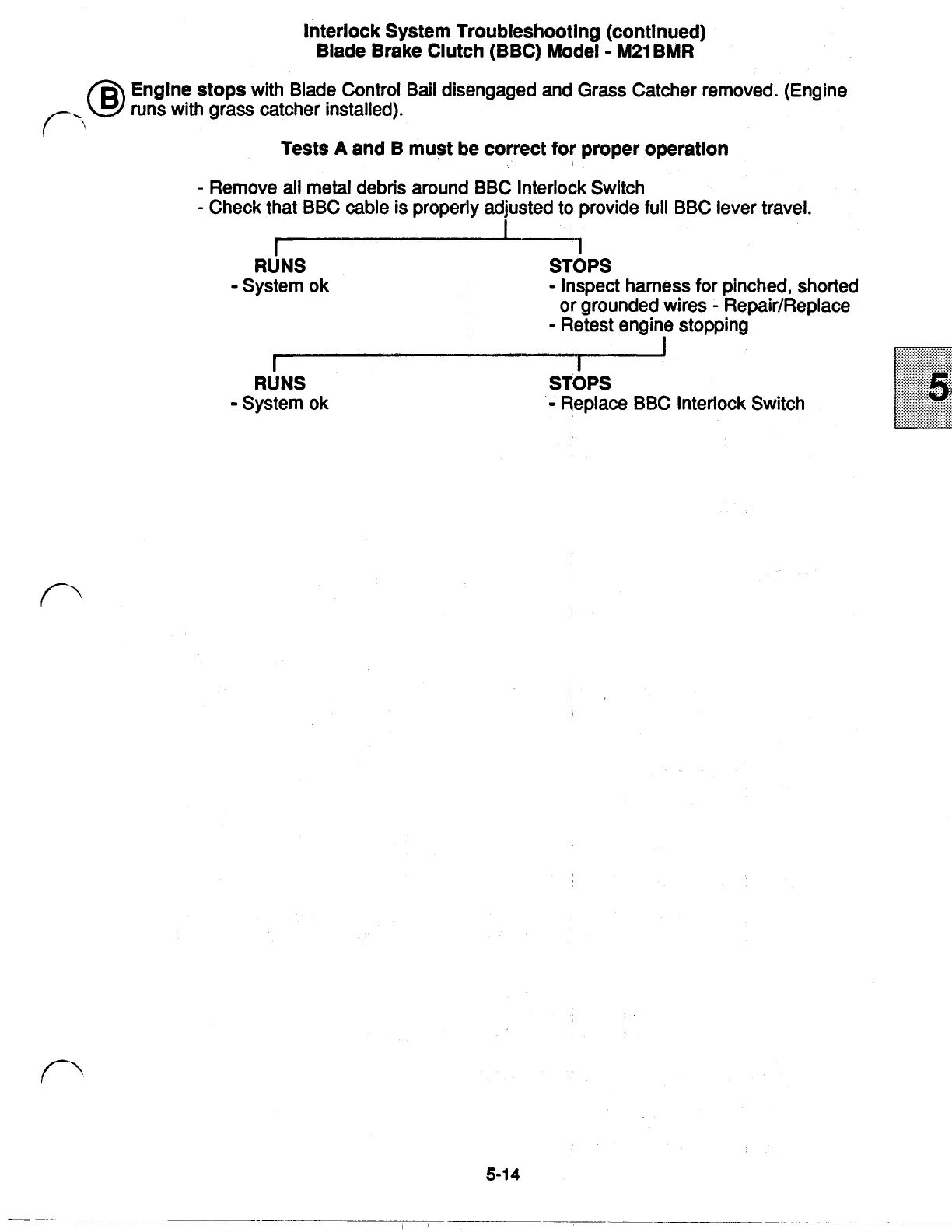

Interlock System Troubleshootlng (continued)
Blade Brake Clutch
(BBC) Model M21 BMR
Engine stops
with Blade Control Bail disengaged and Grass Catcher removed. (Engine
runs with grass catcher installed).
Tests A and B must be correct for proper operatlon
Remove all metal debris around BBC Interlock Switch
Check that BBC cable is properly adjusted to provide full BBC lever travel.
I
I
RUNS
System ok
I
STOPS
Inspect harness for pinched, shorted
or grounded wires Repair/Replace
Retest engine stopping
I
RUNS STOPS
System ok Replace BBC Interlock Switch
!
5-14
