X-Stream Operator’s Manual
WM-OM-E Rev I 177

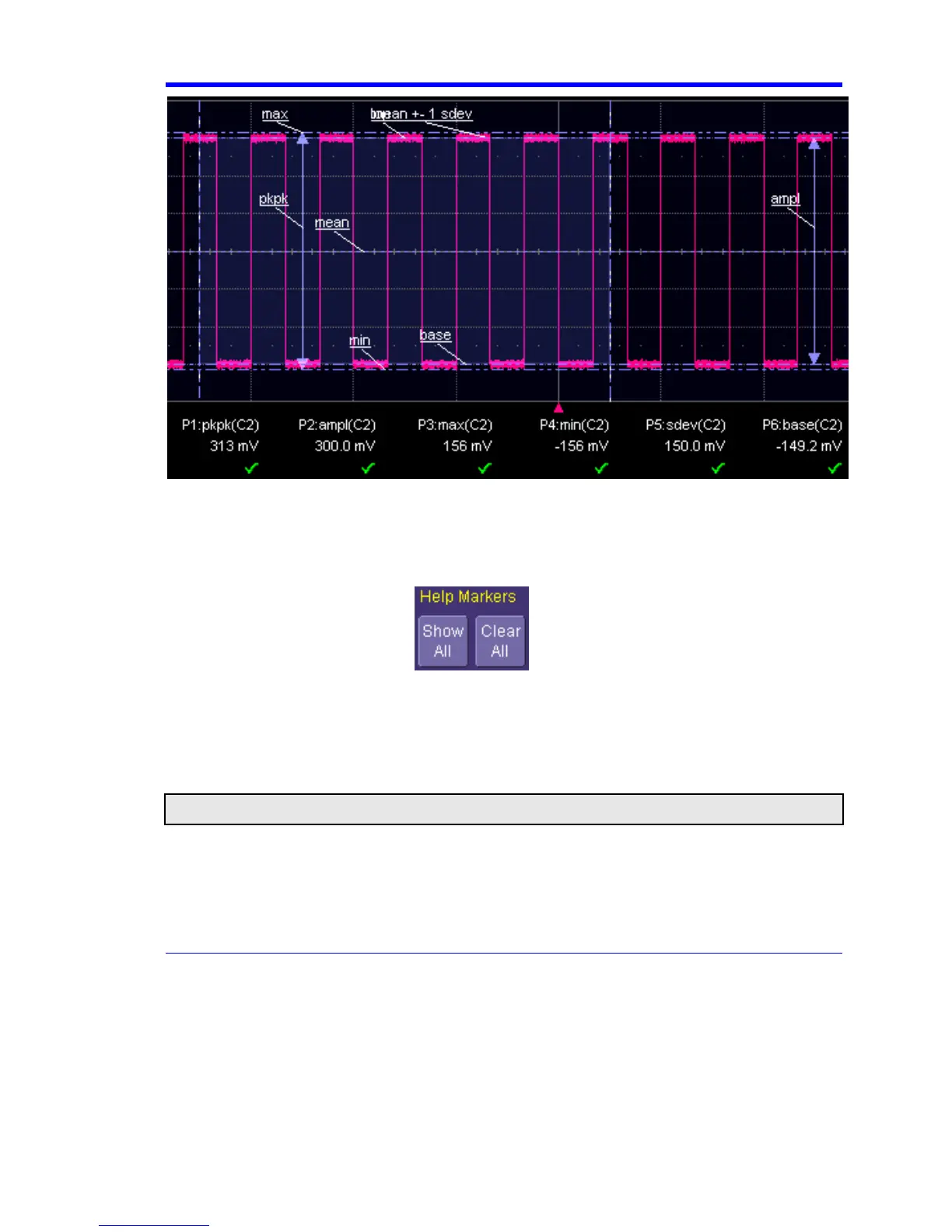

Standard Vertical Parameter Help Markers
To Set Up Help Markers
1. In the menu bar, touch Measure Setup...
2. Select a Measure Mode: Std Vertical, Std Horizontal, or My Measure.
3. Touch the Show All button
to display Help Markers for every parameter
being measured on the displayed waveform (C2 in the examples above).
4. Touch inside the Help Markers field and select Simple The Simple selection produces
cursors and Measure Gate gate posts. The gate posts are independently placeable for
each parameter. or Detailed The Detailed selection produces cursors, Measure Gate gate
posts, a label identifying the parameter being measured, and a level indicator and
hysteresis band for "at level" parameters..
Note: The choice of Simple or Detailed is applied to all parameters at the same time. That is, if you choose Simple markers
for one parameter, all parameters will be displayed in this mode.
5. Touch the Always On checkbox if you want to continuously display Help Markers for this
parameter.
