X-Stream Operator’s Manual
WM-OM-E Rev I 81
CONNECTING TO A SIGNAL
ProLink Interface
LeCroy's ProLink Adapters (LPA) give you the ability to connect your signal in one of three ways:
• BMA connector
• SMA using the BMA-to-SMA adapter
• BNC using BMA-to-BNC adapter

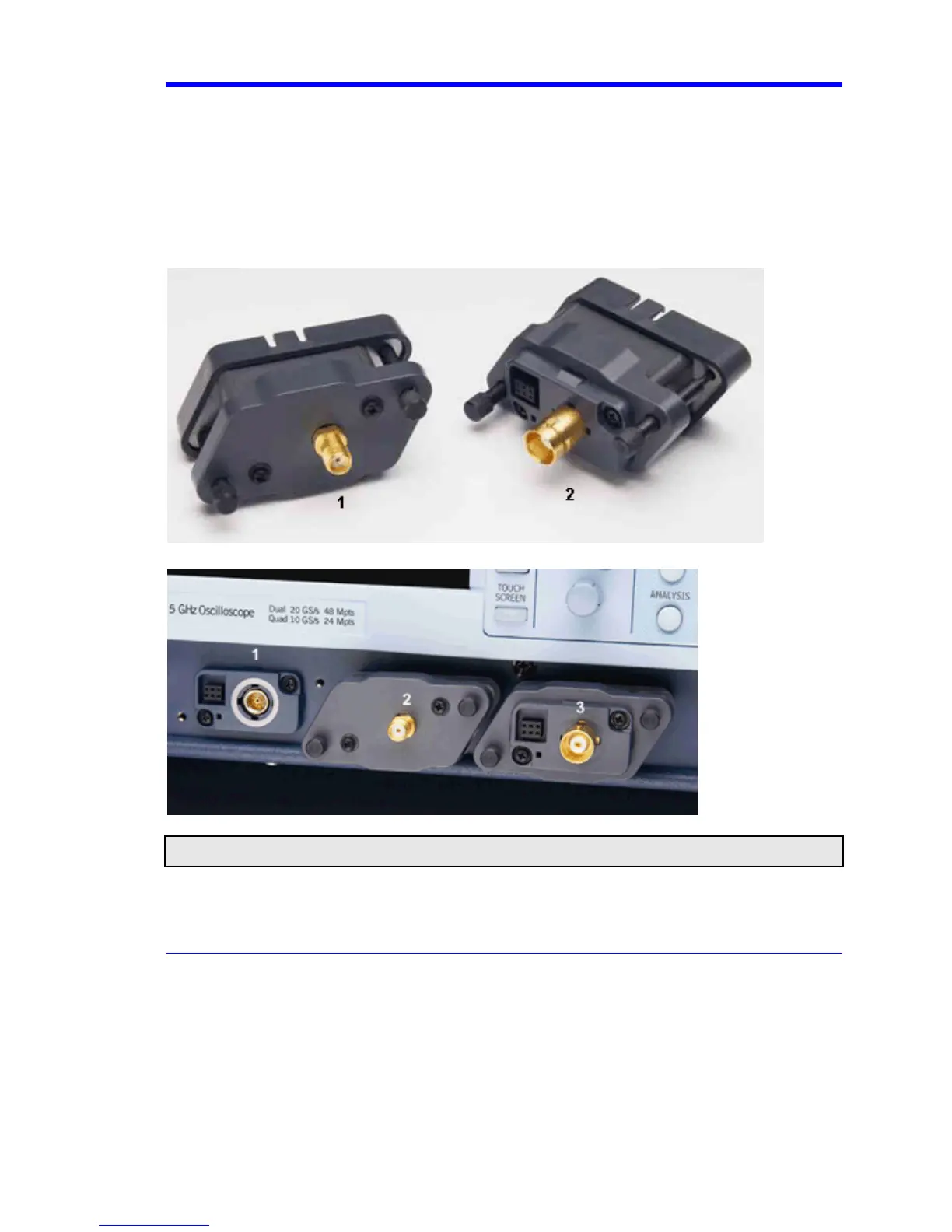

(1) BMA-to-SMA Adapter; (2) BMA-to-BNC Adapter
(1) BMA Female Connector; (2) ProLink BMA-to-SMA Adapter Installed; (3) ProLink BMA-to-BNC Adapter Installed
Note: When connecting an active probe to the instrument, be sure to use a ProLink BMA-to-BNC adapter (item 3 in the
figure). Do not plug the probe directly into the front panel connector (item 1) without an adapter.
