X-Stream Operator’s Manual
WM-OM-E Rev I 317
a result in the instrument.
The MATLAB Parameter Editor

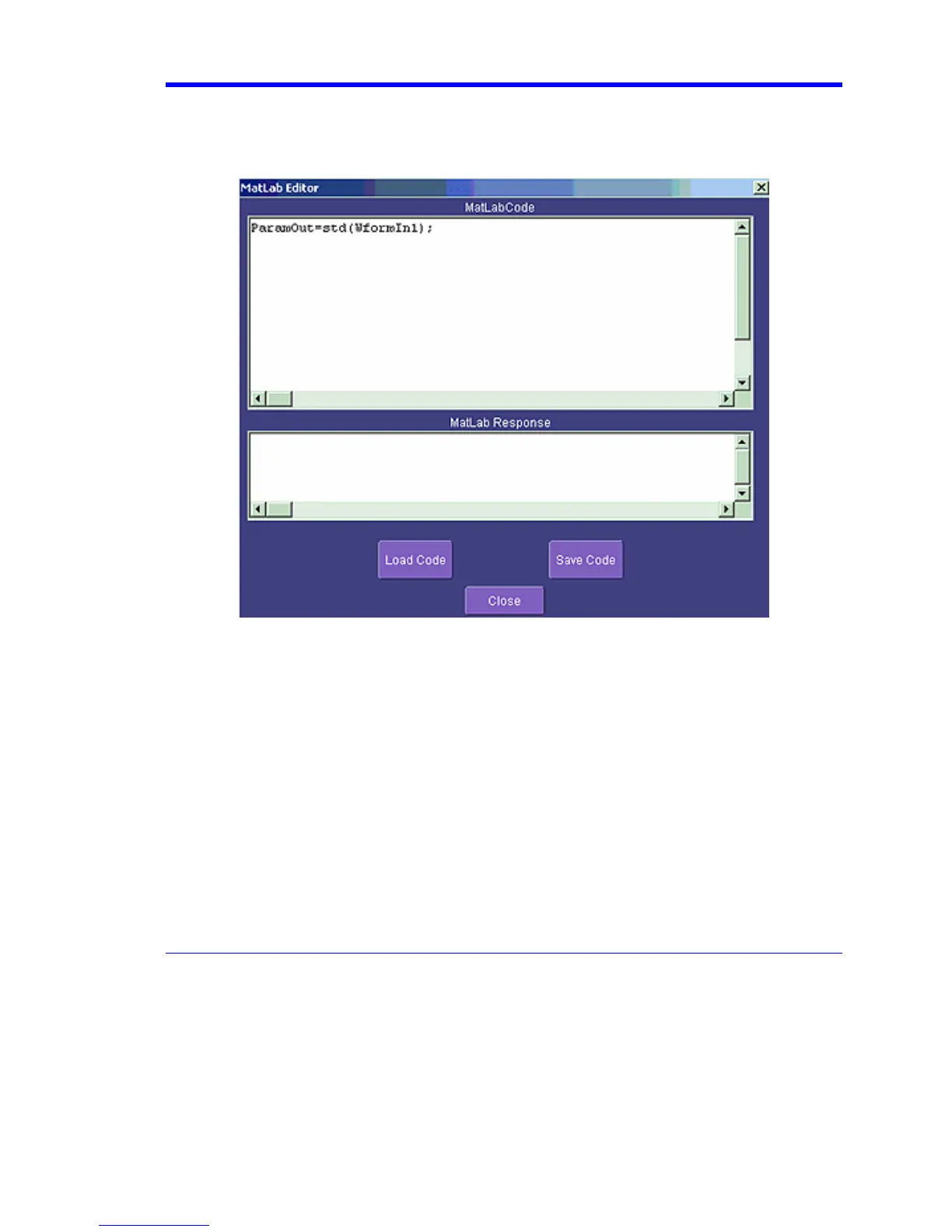

By touching Edit Code, you can reach the MATLAB Editor:
This simple example shows the MATLAB function Standard Deviation acting on input channel 1,
and the result would be shown in the MATLAB Response pane for an amplitude of 0.15 volt.
You can load an existing MATLAB program, using the Load Code button, and you can save the
current program, using the Save Code button.
If you are familiar with MATLAB you might prefer to launch MATLAB and create a MATLAB function
that performs your task. Your program in the instrument could then be a one-line call of your
MATLAB function.
