X-Stream Operator’s Manual

WM-OM-E Rev I 275

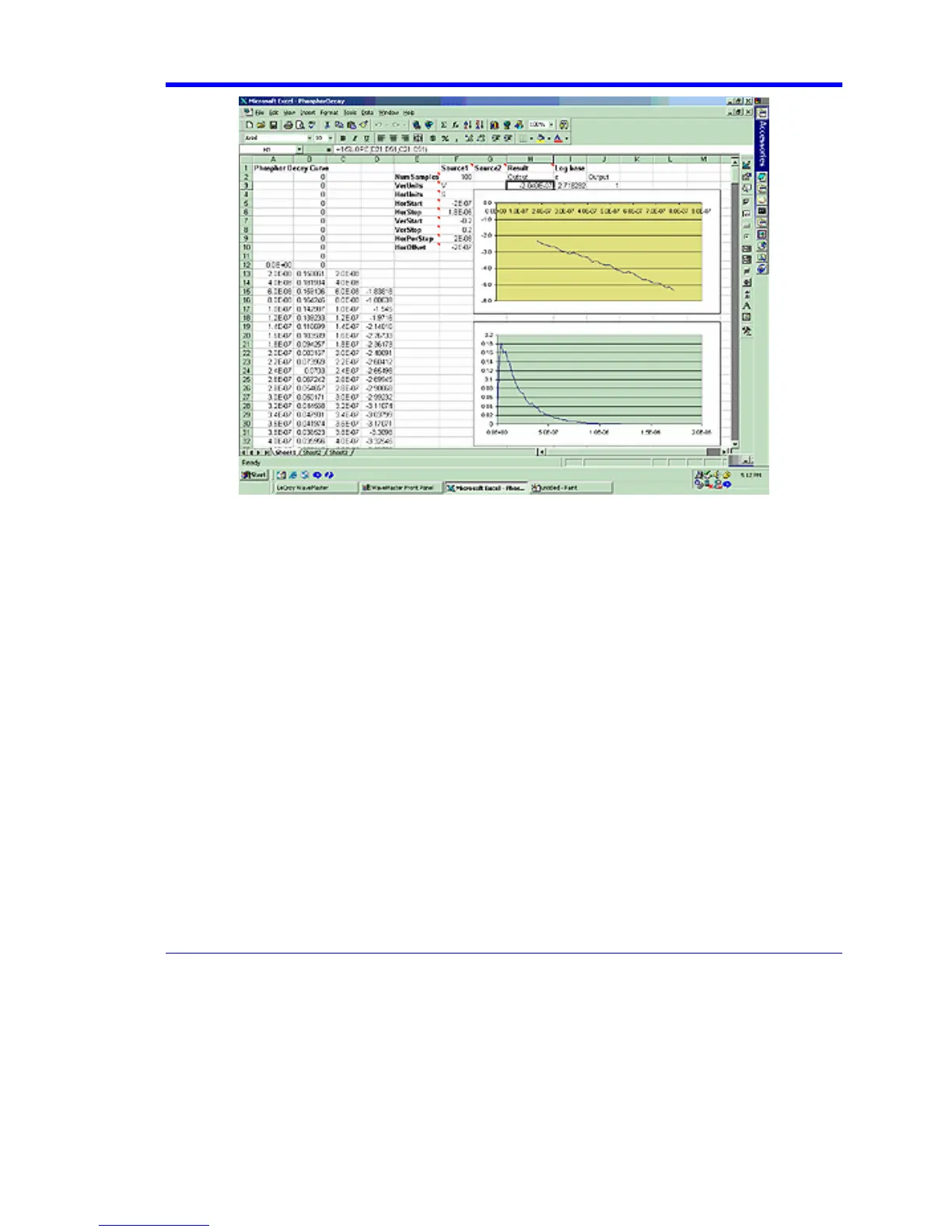

Here we see the input data in column B (with a time scale in A) created using the contents of cell F9,

Horizontal Per Step. The logarithmic data are in column D, with the time scale repeated in C. The

output appears in cell H3, using the formula =1/SLOPE(D21:D51,C21:C51).
