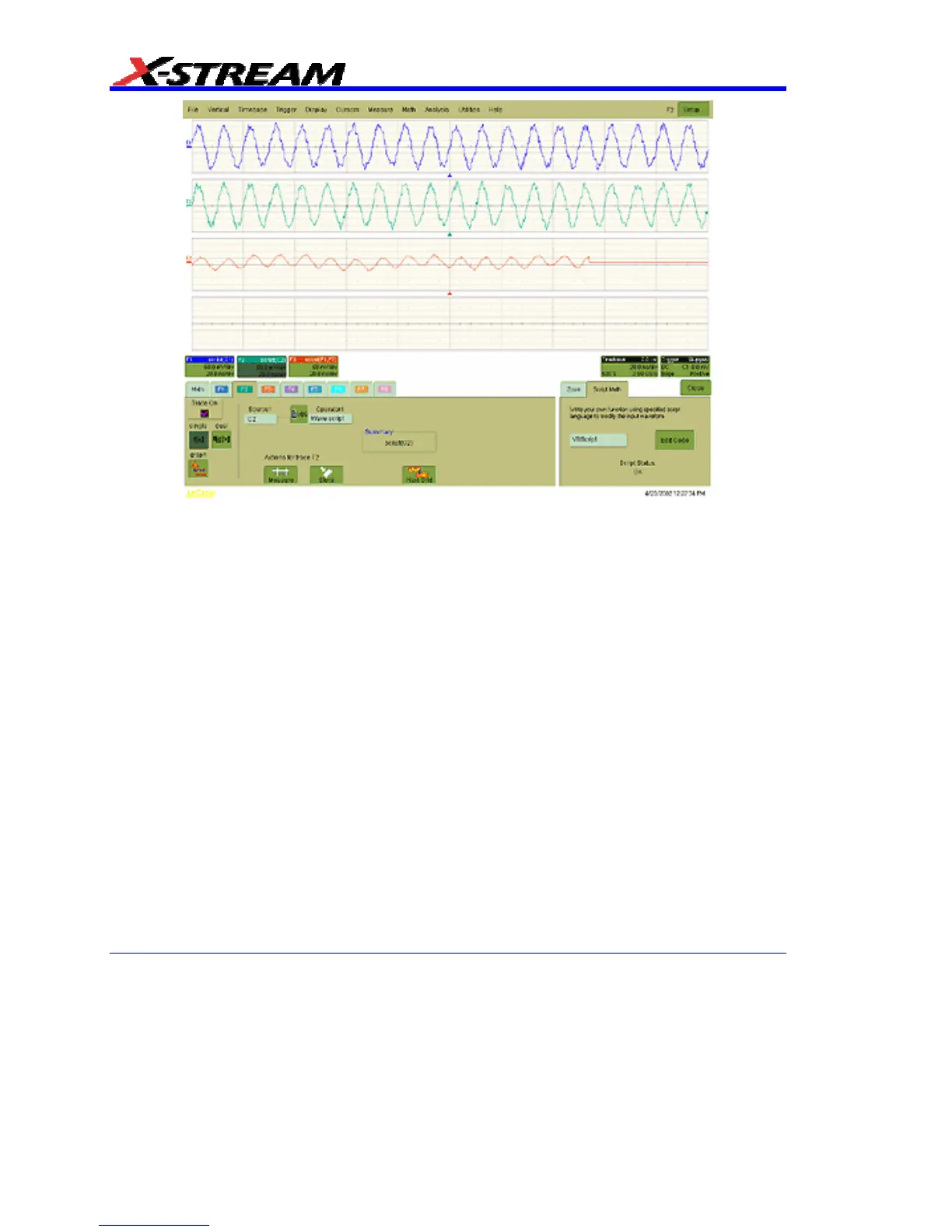

The noise was generated using pseudo-random numbers. Randomize Timer was included in the
VBScript to ensure that the two traces differed, and that subsequent acquisitions differed.
Functions F1 and F2 are included only to simulate signals, and are not part of the measurement
process, which is performed by F3.
This example used the CORREL (Array1, Array2) function of Excel, as depicted below:

LeCroy WavePro 7300A Specifications

General

Bandwidth	3 GHz
Channels	4
Vertical Resolution	8 bits
Display Type	TFT LCD
Input Coupling	AC, DC, GND
Timebase Accuracy	± 5 ppm
Vertical Sensitivity	1 mV/div to 1 V/div
Input Impedance	50 Ω, 1 MΩ
Display Size	10.4 inches
Maximum Input Voltage	400 V (DC + AC peak)
Trigger Modes	Edge
Interface	USB, Ethernet, GPIB
Operating Temperature	0 to 50 °C
Weight	12 kg
