5. OPERATION - ILLUMINATION

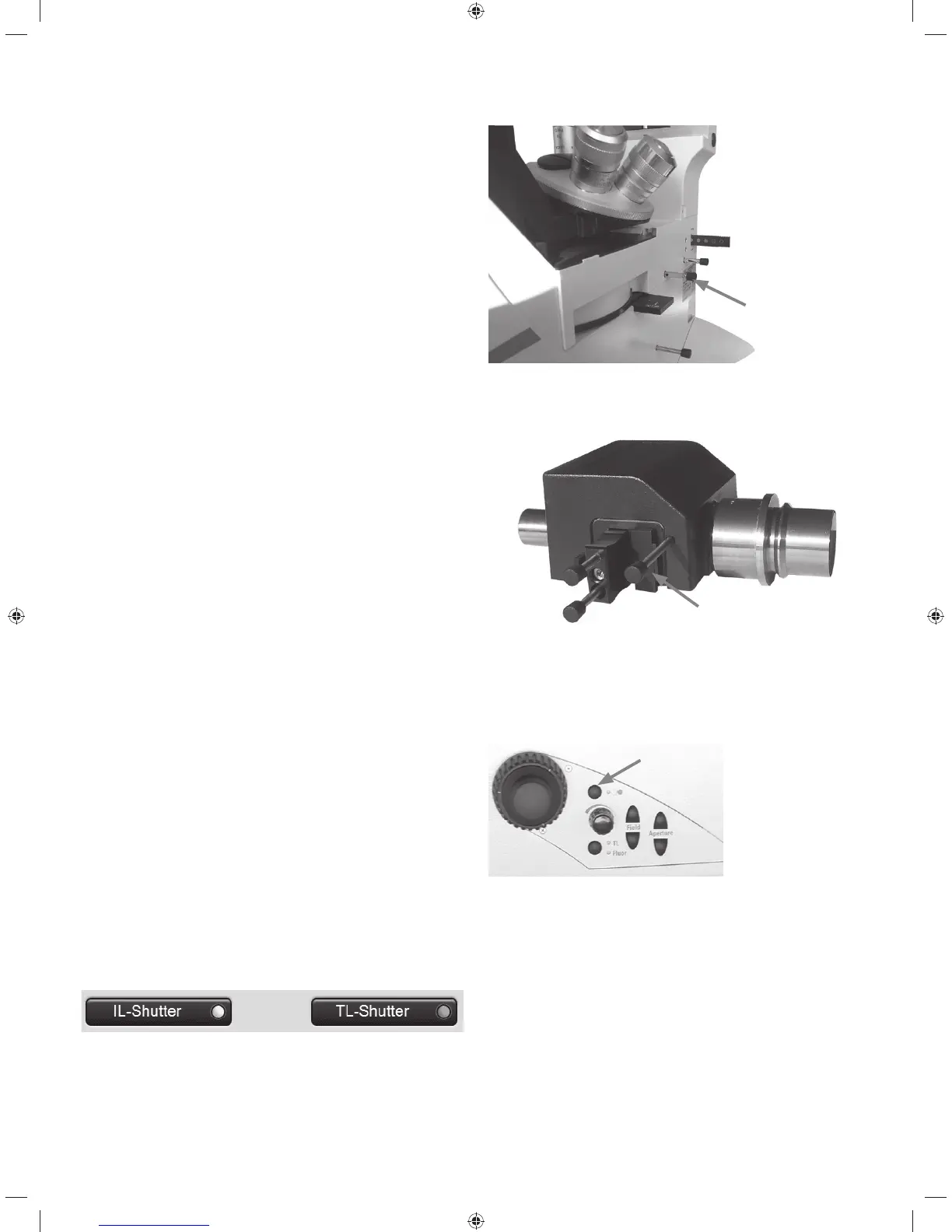

5.2.4 Shutter
Leica DMi8 with manual shutter
t0QFOBOEDMPTFUIFNBOVBMTIVUUFSVTJOHUIFTXJUDISPE
on the manually integrated fluorescence axis or using the
switch rod on the manual external fluorescence axis.
Leica DMi8 with motorized shutter
t0QFOPSDMPTFUIFTIVUUFSVTJOHUIFTIVUUFSLFZPOUIFMFGU
side of the stand.
This switches the active illumination axis (TL or Fluor) on
or off.
When the shutter is open, the LED is illuminated.
t"MUFSOBUJWFMZUIFTIVUUFSDBOCFPQFSBUFEVTJOHCVUUPOT
on the Touch Screen.
Gray = Shutter closed
Yellow = Shutter open
Manual integrated fluorescence axis
Manual external fluorescence axis
45
