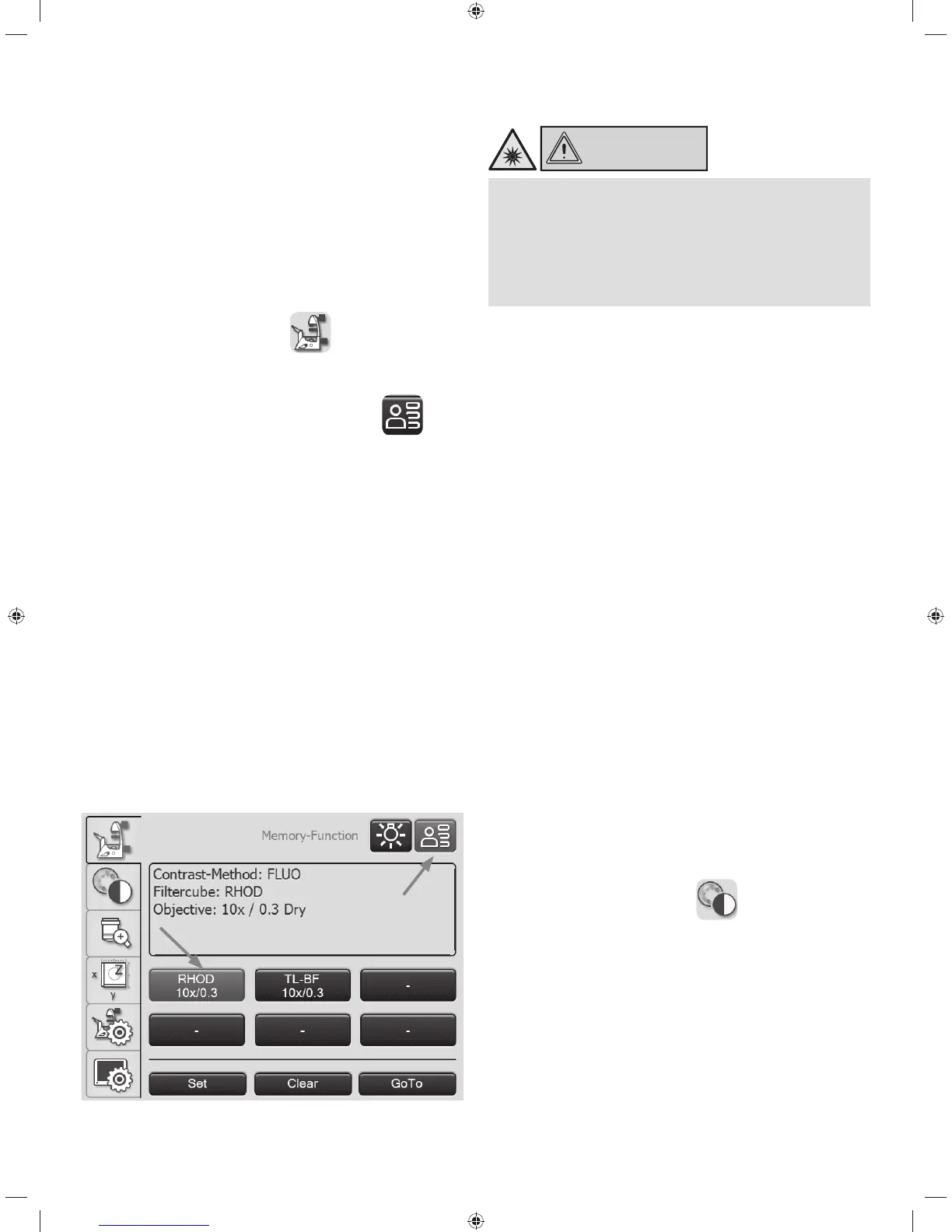

5.12 The memory function on the Touch Screen
Up to 6 user-specific settings can be saved via the Touch
Screen. In doing so, combinations of contrast method and
objective are stored. One exception is fluorescence mode.
In this mode, the combination of fluorescence filter and ob-
jective is stored.
t0OUIF5PVDI4DSFFOVTFUIF
key to switch to ba-
sic microscope settings.
t4FMFDUUIFMemory Function menu using the
key.
Teaching in a combination
t4FUUIFEFTJSFEDPNCJOBUJPO
t1SFTTUIFLFZUPCFBMMPDBUFE
t5IFOQSFTTUIFSet key.
Deleting a saved combination
t1SFTTUIFDPSSFTQPOEJOHLFZ
t5IFOQSFTTUIFDelete key.
Setting a saved combination
t1SFTTUIFDPSSFTQPOEJOHLFZ
t'JOBMMZQSFTTSet.
5.13 Transmitted Light contrast method
CAUTION
Do not look into the eyepieces when toggling the con-
trast method!
During the toggling procedure, the maximum
radiant power of the light source may be present on the
eyepieces for a short time and can temporarily blind the
user!
Leica DMi8 with manual Transmitted Light method
The contrast method on the manual or encoded Leica DMi8
can be operated using the manual condenser, the manual
objective nosepiece, or the rotary knobs and slide bars on
the stand.
t*GOFDFTTBSZmSTUUPHHMFUPUIFTransmitted Light axis (TL)
by opening the shutter.
(Slide bar on the manual external or integrated fluores-
cence axis or using the shutter key for the motorized
shutter.)
Leica DMi8 with motorized Transmitted Light method
All contrast methods on the automated Leica DMi8 can be
selected and operated via the Touch Screen, the variable
function keys or the LAS X software. The only exceptions
are methods involving components that have to be oper-
ated manually (e.g. systems with manual analyzers). The
following describes operation of the automated Leica DMi8
via the Touch Screen. Refer to the separate instructions for
operation via the software.
t*GOFDFTTBSZTXJUDIUPUIF5SBOTNJUUFE-JHIUBYJTVTJOH
the TL/Fluor key (TL).
t0OUIF5PVDI4DSFFOVTFUIF
key to configure the
contrast method.
t4FMFDUUIFEFTJSFE5SBOTNJUUFE-JHIUDPOUSBTUNFUIPE
