Leica DMi8 - Page 70

5. OPERATION - TRANSMIT TED LIGHT CONTR AST ME THOD
t'PDVTUIFJNBHFVTJOHUIFGPDVTEJBMT
t$POmHVSFUIFCSJHIUOFTTPOUIFJOUFOTJUZSPUBSZLOPC
t'PSBOPQUJNBMmFMEEJBQISBHNTFUUJOHDIFDLUIF,PFIMFS
illumination.
Leica DMi8 with motorized Transmitted Light method
t4FMFDUUIFDPOUSBTUNFUIPEBF (Brightfield).
The Brightfield position is approached for the motorized
condenser.
An empty position or the filter cube "DAPI-TL" on the fluo-
rescent turret disk is approached automatically.
t*OTFSUB5SBOTNJUUFE-JHIUTQFDJNFO
t4FMFDUBTVJUBCMFPCKFDUJWFJOUIFNBHOJmDBUJPONFOV
t'PDVTUIFJNBHFVTJOHUIFSPUBSZLOPCPOUIF-FJDB
SmartMove or using the focus dial.
t$POmHVSFUIFCSJHIUOFTTPOUIFJOUFOTJUZSPUBSZLOPC
Note:
You can find additional information regarding the correct
settings for Koehler illumination in Leica Science Lab.
Link:
http://www.leica-microsystems.com/science-lab/

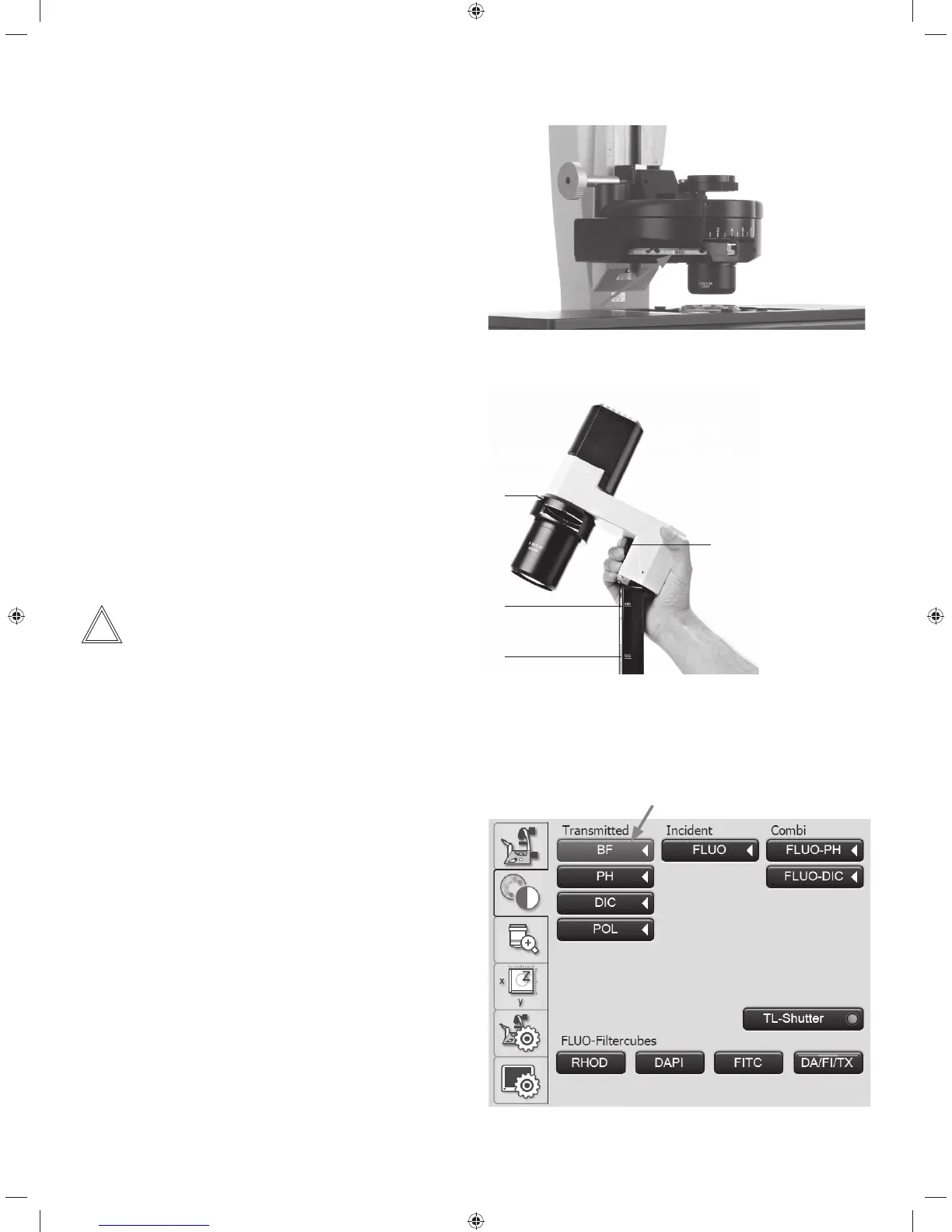

Condenser setting for tiltable Transmitted Light arm - con-
figuring BF position
Condenser setting for fixed Transmitted Light arm
1 Marks
2 Stop lever for condenser adjustment
3 Aperture diaphragm
3
1
1
2
68
