5. OPERATION - TRANSMIT TED LIGHT CONTR AST ME THOD
Leica DMi8 with motorized Transmitted Light method

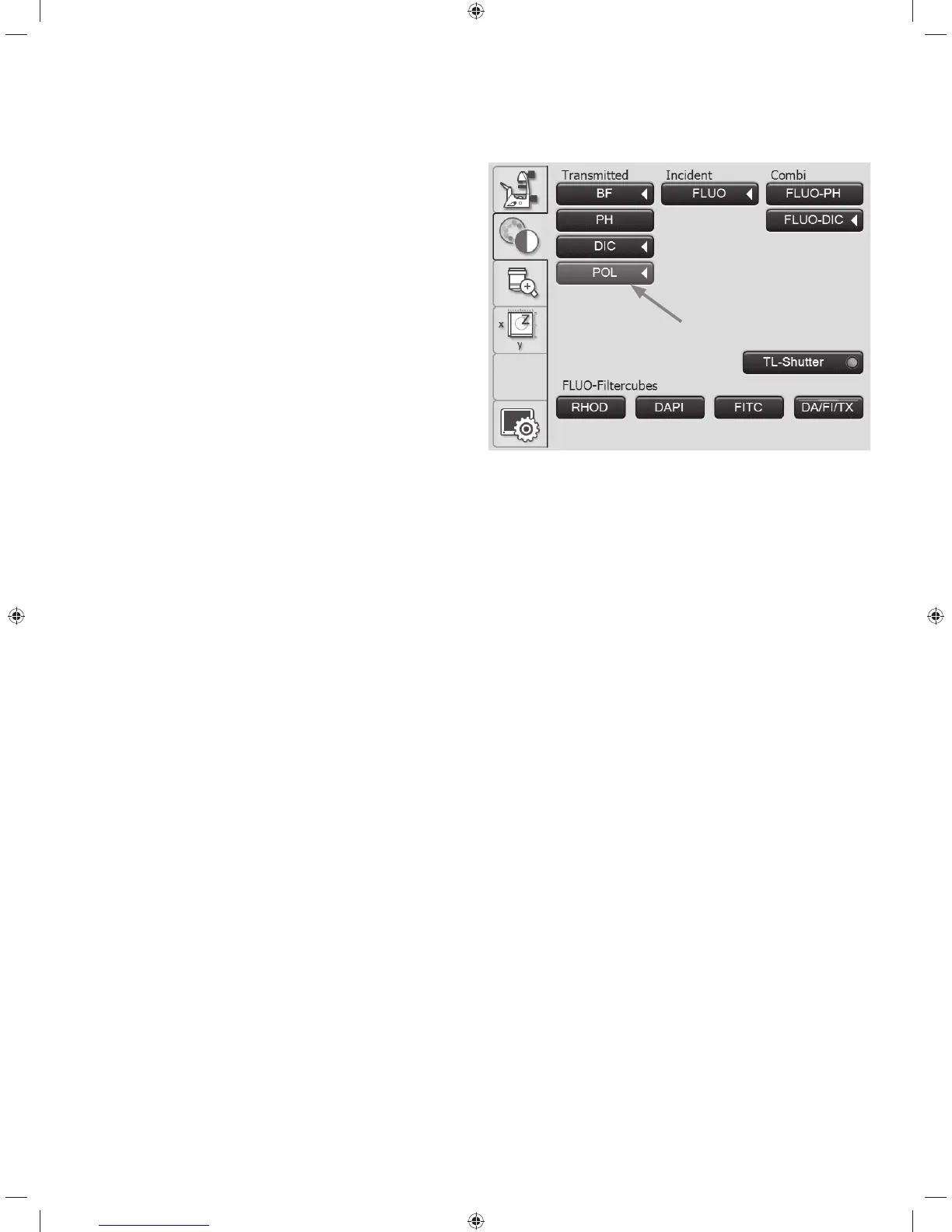

t4FMFDUUIFPOL (Polarization) contrast method
Motor procedure:
t"GUFSUIFPOL contrast method has been selected, the
polarizer is swung in (if the microscope is equipped with
these components). The analyzer cube is also automati-
cally brought into the beam path.
Combined procedure:
t:PVBMTPIBWFUIFPQUJPOPGDPNCJOJOHQVSFMZNFDIBOJDBM
and motorized components, i.e. you can combine a me-
chanical analyzer and a motorized polarizer.
Manual procedure:
For a manual swing polarizer and a mechanical analyzer,
proceed with the manual Transmitted Light method as de-
scribed for the Leica DMi8.
t4FMFDUBTVJUBCMFPCKFDUJWFJOUIFNBHOJmDBUJPONFOV
t*OTFSUBTQFDJNFO
t'PDVTUIFJNBHFVTJOHUIFSPUBSZLOPCPOUIF-FJDB
SmartMove or using the focus dial.
t$POmHVSFUIFCSJHIUOFTTPOUIFJOUFOTJUZSPUBSZLOPC
73
