MAINTENANCE BALER
110 LELY WELGER y RPC 445 Tornado
10.15 Maintenance of the net tying unit
10.15.1 Adjusting the disk brake
To prevent net roll after-running: adjust the disk brake so that,
while lever [1] is in vertical position, the brake disk can just no
longer be turned by hand.

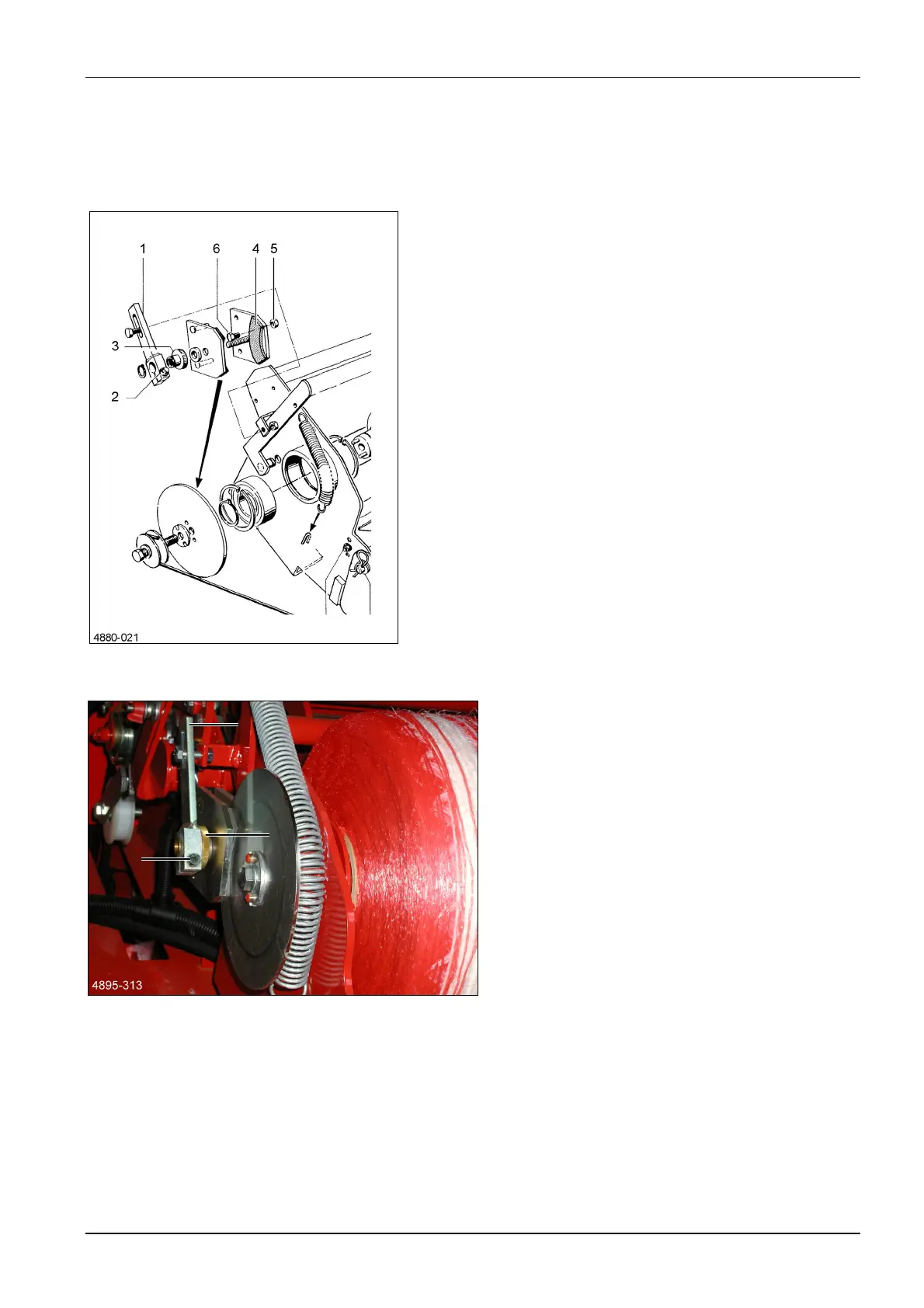

Figure 94 and Figure 95: Loosen screw [2] on lever [1].
Tighten milled nut [3] so far that the brake linings are close
fitting on the disk.
Retighten screw [2].
In case of single-side wear of the disk brake lining [4]:
Figure 94: Loosen lock nut [5].
Turn screw [6] slightly in until the linings are again parallel.
Lock the screw [6] again.
Figure 95
Figure 94
2
3
1
