THE MACHINE
LELY WELGER y RPC 445 Tornado 35
5 THE MACHINE
Item Assembly group Item Assembly group
1 Drive shaft 15 Control box (at the rear of the baler)
2 Drawbar 16 Wrapping frame
3 Manually operated brake 17 Baler with tiltable bale wrapping table
4 Maintenance platform with railing and ladder 18
Wrapping ring drive (2 u hydraulic friction wheel
drive)
5 Net tying unit (hidden in the picture) 19 Bale transfer arm from baler to wrapper (hidden in
the picture)
6 Round baler with baling chamber 20 Running gear
7 Automatic (mechanical) chain lubrication system
(right machine side, hidden in the picture)
21 12 mounts for spare film rolls
(hidden in the picture)
8 Belt rocker
(tightens the belts of the baling chamber)
22 Lubricating rail for manual roller lubrication
(left machine side, hidden in the picture)
9 Tailgate 23 Cutting device (XTRACUT 25) and hydraulic feed
channel floor (HYDROFLEXCONTROL)
10 Belts of the baling chamber 24 Pick-up guide wheel pair for pick-up
11 Film clamping device and film knife 25 Pick-up (hidden in the picture)
12 Film stretching unit (stretch rollers and film roll) 26 Support foot
13 Wrapping ring with 2 film stretching units 27 Ladder for maintenance platform
14 Control box PRO-LINK (in the tractor cabin)

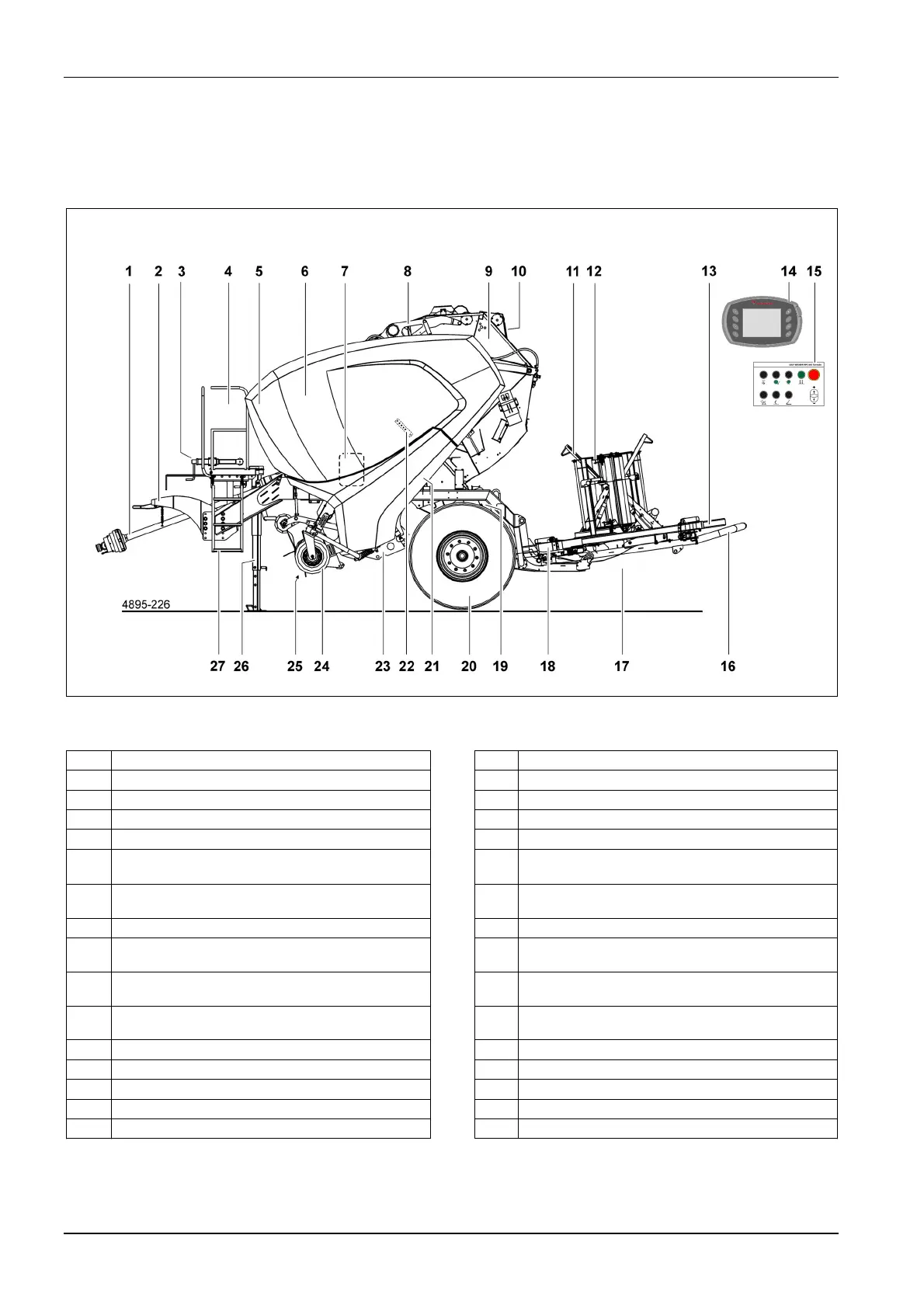

Figure 17
