MAINTENANCE BALER
LELY WELGER y RPC 445 Tornado 111

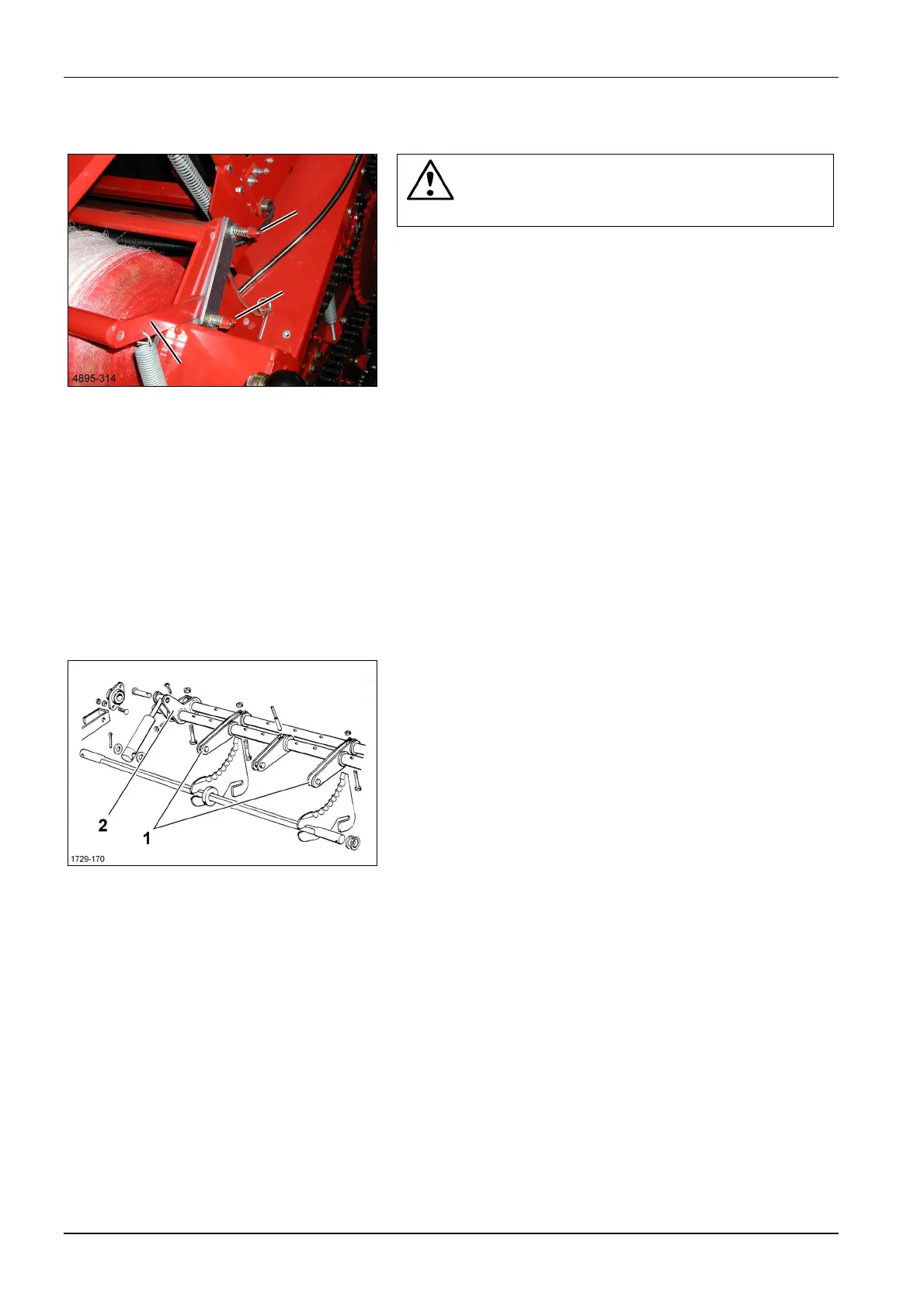

10.15.2 Adjusting the shock absorbers
Attention, danger of injury by cutting!
Do not reach into the net knife area.
On the left machine side, the movements of the net tensioner
[12] are braked by a shock absorber. Two wing nuts [13] press
the friction linings against the net tensioner from both sides. For
adjustment:
First move the net tensioner to the top end position and
tighten the wing nut "hand-tight".
Proceed analogously in the bottom end position. The
adjustment is correct, if the net tensioner can just still be
moved to and fro between the two end positions by hand.
During net tying the net tensioner may move between the two
end positions only in such a way that the net always remains
properly tensioned.
10.16 Grease knife lever
Nonrecurring 3 weeks after first commissioning: Grease the
knife levers [1] (grease nipple at the bottom side of each
knife lever).
Nonrecurring 3 weeks after first commissioning: Grease the
knife lever [2] (grease nipple at the bottom side of the knife
lever).
After set regrease once per season.
Figure 96
Figure 97
12
13
13
