COMMISSIONING
LELY WELGER y RPC 445 Tornado 67
7.18 Narrow Films – Wide Films

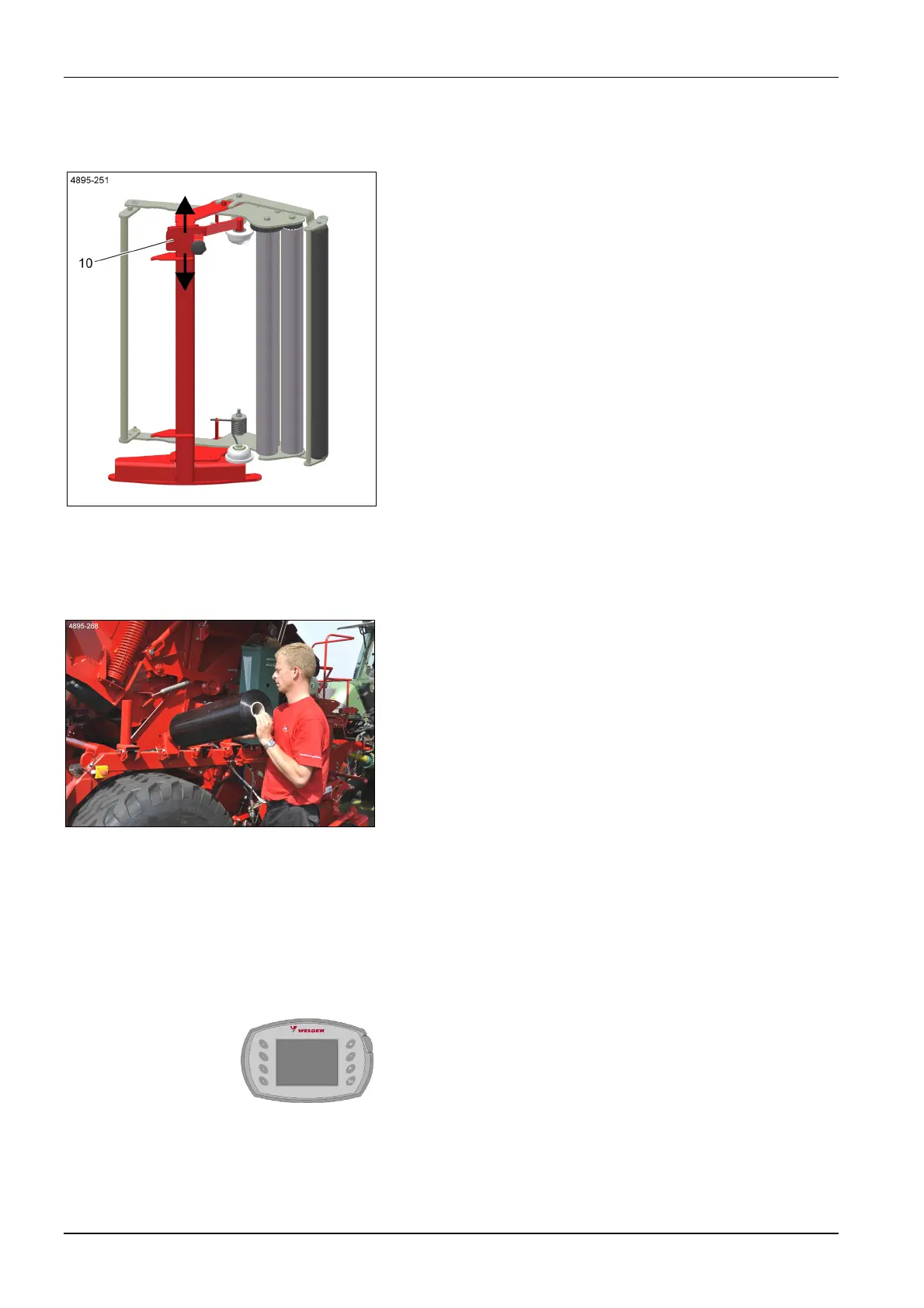

(Figure 56) The top film roll holder [10] can be vertically
adjusted according to the size of the film rolls (500 mm or 750
mm) to be used:
Unscrew the top film roll holder [10] (2 screws).
Adjust film roll holder [10] vertically.
Fix the top film roll holder [10] in the desired position with
the screws.
7.19 Spare Film Rolls
Spare film rolls can be loaded for field deployment:
5 film rolls, left machine side
7 film rolls, right machine side (Figure 57)
Open guard casings (on the left and right of the machine).
Pull out stop bolt and tilt film roll holder to the front.
(Figure 57) Insert film roll into the tilted film roll holder.
Tilt film roll holder back (towards the machine). The stop
bolt must engage.
Close guard casings.
7.20 Film Layers and Film Overlap...
To achieve optimum production results the following target
settings can be made.
The number of film layers on the bale.
The width of the film overlap.
See separate operating manual:
"PRO-LINK for RPC 445", chapter "Film layers and film
overlap".
Figure 56
Figure 57
